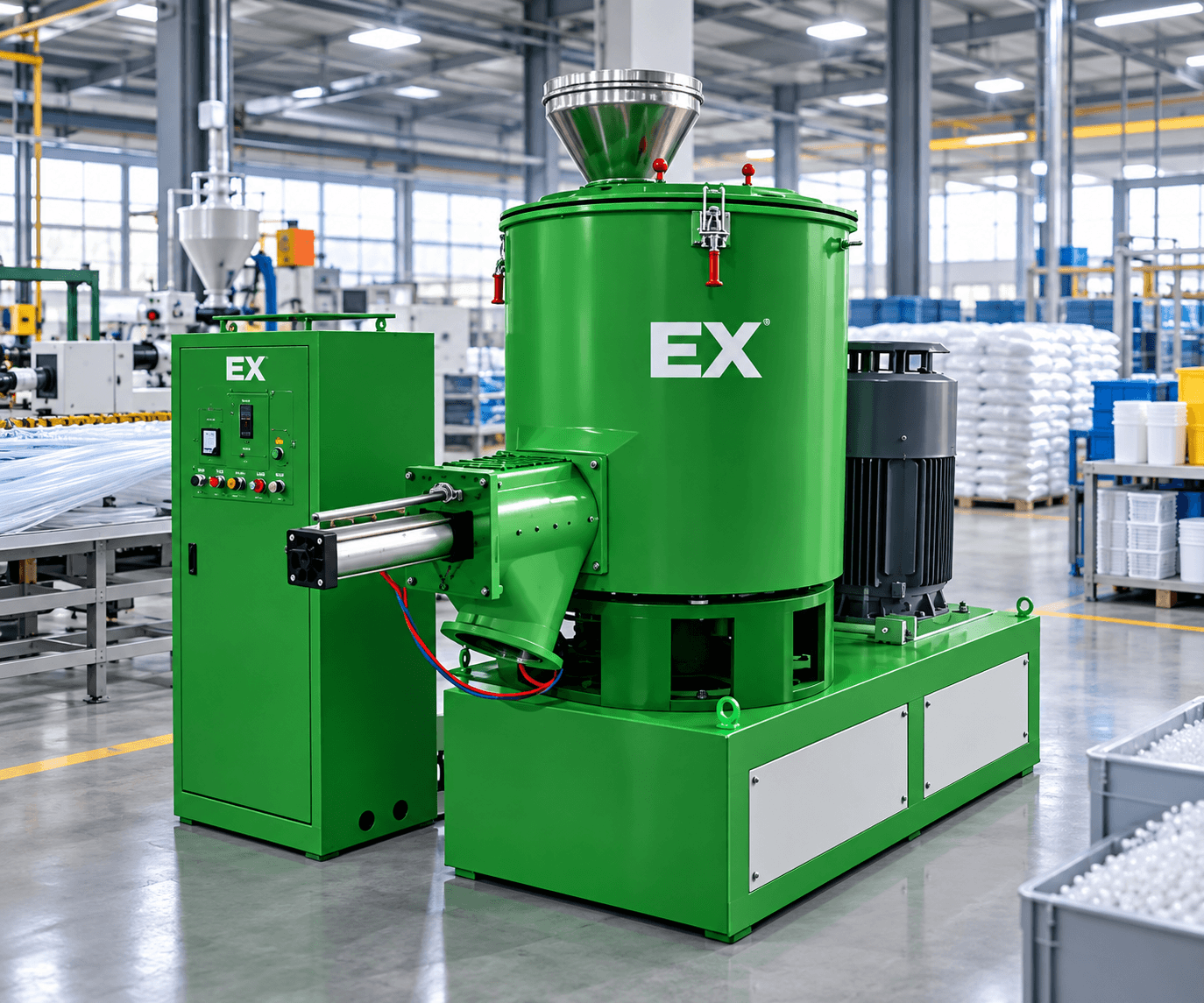

EXTRUTEX EX-F High Speed Mixers

High-Speed Mixing Technology for Modern Material Processing

High-speed mixing is an important stage in many plastic and polymer processing operations. Before extrusion, pelletizing, molding, calendaring or other downstream processes, raw materials often need to be blended into a homogeneous mixture. Depending on the application, the material may contain polymers, fillers, pigments, stabilizers, lubricants, processing aids, additives, masterbatch components or other dry ingredients.

The EXTRUTEX EX-F series is engineered to provide intensive and controlled mixing within a compact industrial system. The high-speed rotor and mixing chamber create strong material movement, helping distribute components throughout the batch. The result is a more consistent mixture suitable for feeding into subsequent production equipment.

The EX-F range is available in multiple working capacities, from compact laboratory and small production requirements through to large industrial production systems. Tank capacities shown in the specification tables range from 15 litres to 1050 litres, allowing processors to select a machine according to their required batch size and production scale.

EXTRUTEX high-speed mixers can be integrated into complete material-processing lines or operated as independent mixing systems. Their flexible configuration makes them suitable for different production environments where repeatable mixing, straightforward maintenance and efficient material handling are important.

EXTRUTEX EX-F High Speed Mixer Specifications

The following specifications are based on the supplied EX-F series configuration. The range includes FA, FB and FC configurations, with different drive and control arrangements available according to production requirements.

EX-F High Speed Mixer – FA and FB Series

EX-F High Speed Mixer – FB and FC Series

Engineered for Efficient and Consistent Mixing

The EXTRUTEX EX-F series is designed around the requirements of industrial material processing, where the quality of the mixture can directly influence the performance of downstream equipment and the consistency of the finished product. High-speed mechanical action helps promote rapid distribution of individual components throughout the mixing chamber.

During operation, the rotating mixing system creates intensive movement inside the tank. This movement helps bring different material components into contact with one another, supporting the dispersion and blending of powders, polymers, additives, pigments and other formulation ingredients. The exact mixing result depends on the material characteristics, formulation, loading level, operating conditions and selected machine configuration.

The broad EX-F model range allows the mixer to be selected according to production requirements. Smaller models can be used where lower batch quantities are required, while the larger EX-FA, EX-FB and EX-FC configurations provide substantially higher batch capacities for industrial production environments.

Replaceable SKD 11 Mixing Blades

One of the important design features of the EXTRUTEX high-speed mixer is its replaceable mixing blade system. The mixing blades are manufactured with a thickness of less than 20 mm and are designed for practical replacement and maintenance.

According to the supplied EXTRUTEX design specification, the blades use SKD 11 wear-resistant material. The blade construction is intended to provide improved resistance against abrasive materials and extended service life compared with conventional blades using welded hardfacing or deposited wear-resistant material.

A further advantage is simplified maintenance. The replaceable blade arrangement is designed so that blade replacement can be completed in less than five minutes under suitable maintenance conditions. Reducing maintenance time can help minimize production interruptions and make routine servicing more practical for production operators.

Blade life will naturally vary depending on the formulation, filler content, material hardness, operating speed, temperature and other process conditions. For highly abrasive formulations, appropriate inspection and planned replacement remain important parts of machine maintenance.

Optimized Discharge and Easy Cleaning

Material discharge is another important consideration in high-speed mixing applications. The EXTRUTEX EX-F series incorporates a configurable discharge outlet designed to facilitate rapid removal of the mixed material from the chamber.

The discharge arrangement is designed with cleaning and maintenance in mind. Easy access to the material-contact areas helps operators clean the mixer between production batches and formulations. This can be particularly valuable for manufacturers processing different colors, compounds or formulations on the same production line.

Effective discharge also helps reduce residual material inside the mixing chamber. Depending on the formulation and operating procedure, improved discharge can contribute to shorter changeover times and more efficient use of production equipment.

Designed for Controlled Material Addition

Many formulations require additives or secondary materials to be introduced during the mixing process. The EXTRUTEX EX-F system is designed to support convenient addition of additional materials while helping minimize unwanted powder leakage from the mixing area.

Controlling material addition is important in applications involving fine powders, pigments, fillers and additives. Properly managed feeding and mixing can improve the working environment around the equipment while helping maintain cleaner production conditions.

The machine structure is also designed to operate with reduced vibration during normal operation. Stable mechanical operation is important for high-speed equipment because excessive vibration can affect machine longevity, maintenance requirements and the working environment.

Heating and Cooling Mixing Applications

EXTRUTEX high-speed mixers can be incorporated into material-processing systems requiring controlled heating, cooling and intensive mixing. In plastic processing, the mixing stage may involve temperature-sensitive additives, polymers, pigments, fillers or lubricants, making temperature management an important part of the overall process.

Depending on the selected configuration and process requirements, high-speed mixing can be used to prepare materials before extrusion or other downstream operations. Heating can assist with material conditioning and blending, while cooling can be used to manage the material temperature after intensive mixing.

The correct process conditions should be established according to the formulation and material being processed. EXTRUTEX can configure the equipment according to the customer's production requirements and the characteristics of the material.

Applications of EXTRUTEX EX-F Mixers

The EX-F series is suitable for a broad range of industrial mixing applications. Typical applications include plastic compounding and preparation, PVC processing, masterbatch production, filled polymer compounds, dry-blend formulations and other processes requiring intensive material mixing.

• PVC dry-blend and plastic processing
• Masterbatch material preparation
• Plastic additives and filler blending
• Polymer and powder mixing
• Color masterbatch preparation
• Calcium carbonate and mineral-filled compounds
• Plastic profiles and pipe material preparation
• UPVC and other polymer formulations
• Industrial chemical powder blending
• Pre-mixing before extrusion and compounding

The suitability of a specific model depends on the material density, formulation, batch size, required mixing intensity, production rate and process temperature. EXTRUTEX can assist in selecting the appropriate EX-F configuration based on the customer's process requirements.

Three EX-F Configuration Options

Industrial Construction and Production Reliability

High-speed industrial mixers operate under demanding mechanical conditions. The EXTRUTEX EX-F series is therefore designed as a robust production machine with heavy-duty construction, appropriate drive power and replaceable wear components.

The listed machine weights range from approximately 200 kg to 5600 kg, depending on the model and configuration. Machine dimensions also increase according to capacity, with the largest listed models reaching approximately 3760 x 1600 x 2600 mm.

This range of sizes enables manufacturers to select equipment according to their available production space and required batch volume. Before installation, customers should confirm the final machine dimensions, electrical requirements, access route, foundation requirements and auxiliary equipment requirements with EXTRUTEX.

Austrian Design and International Manufacturing

EXTRUTEX combines design and engineering development in Austria with established manufacturing capabilities in China. The machines are designed in Austria and manufactured through two production facilities located in Shanghai and Nanjing.

This international manufacturing structure allows EXTRUTEX to serve customers requiring industrial processing machinery while maintaining a focus on engineering, manufacturing efficiency and international project support.

Each application can require different process parameters, materials and production targets. For this reason, the final machine configuration should be selected according to the actual application rather than capacity alone. EXTRUTEX can provide technical guidance for model selection, configuration and integration into a complete production line.

International After-Sales Service

EXTRUTEX supports its international customer base through after-sales service agents located in the USA, Middle East, European Union and Asia. Local and regional support can be important for industrial equipment, particularly when customers require assistance with installation, commissioning, maintenance, spare parts or technical troubleshooting.

The EX-F series is designed with maintenance in mind, including replaceable mixing blades and accessible material-contact areas. Regular inspection and preventive maintenance can help maintain consistent operation and extend the service life of key components.

For production facilities operating multiple formulations, EXTRUTEX can also provide guidance regarding cleaning procedures, blade inspection and suitable machine configurations according to the materials being processed.

Why Choose an EXTRUTEX EX-F High Speed Mixer?

Selecting a high-speed mixer is not simply a matter of choosing the largest available tank. The correct machine must match the formulation, batch size, material density, mixing intensity, required production output and available installation space.

The EXTRUTEX EX-F range offers a broad selection of capacities and drive configurations, allowing manufacturers to build a mixing solution around their actual production requirements. The range combines high-speed mechanical mixing, replaceable wear-resistant blades, configurable discharge, practical cleaning access and multiple motor configurations.

For manufacturers processing polymers, PVC compounds, masterbatch, fillers, pigments and other industrial materials, these features can provide a practical foundation for a stable material preparation process. The combination of different tank capacities and power configurations also allows the EX-F range to serve both smaller production operations and high-volume industrial plants.

EX-F High Speed Mixer Selection

EXTRUTEX offers the EX-F series in multiple sizes and configurations to accommodate different production requirements. The compact models are suitable for smaller batches, development work and lower-volume production, while the larger 400L, 500L, 750L and 1000-class machines are designed for larger industrial batch requirements.

The listed feeding capacities provide an indication of the recommended material loading range for each machine. Actual usable capacity can vary according to material bulk density, formulation characteristics and operating conditions. For this reason, EXTRUTEX recommends confirming the required batch size and material characteristics before final machine selection.

Where variable-speed operation is important, the EX-FC inverter configurations provide an alternative to the fixed motor arrangements listed for the FA and FB configurations. This can be useful when the process requires different mixing conditions for different materials or formulations.

Complete Mixing Solutions from EXTRUTEX

EXTRUTEX is focused on supplying industrial plastic and material-processing equipment for manufacturers around the world. The EX-F high-speed mixer series forms an important part of material preparation systems where controlled and efficient blending is required before downstream processing.

From compact 15L systems to 1050L tank configurations, EXTRUTEX provides a scalable range for different production environments. With Austrian design, manufacturing facilities in Shanghai and Nanjing, China, and international after-sales service coverage, EXTRUTEX can support customers from initial machine selection through installation and ongoing operation.

For detailed machine selection, customers should provide the material type, formulation, required batch weight, desired production capacity, mixing temperature, required mixing process and available installation space. EXTRUTEX can then recommend a suitable EX-F model and configuration for the intended application.
