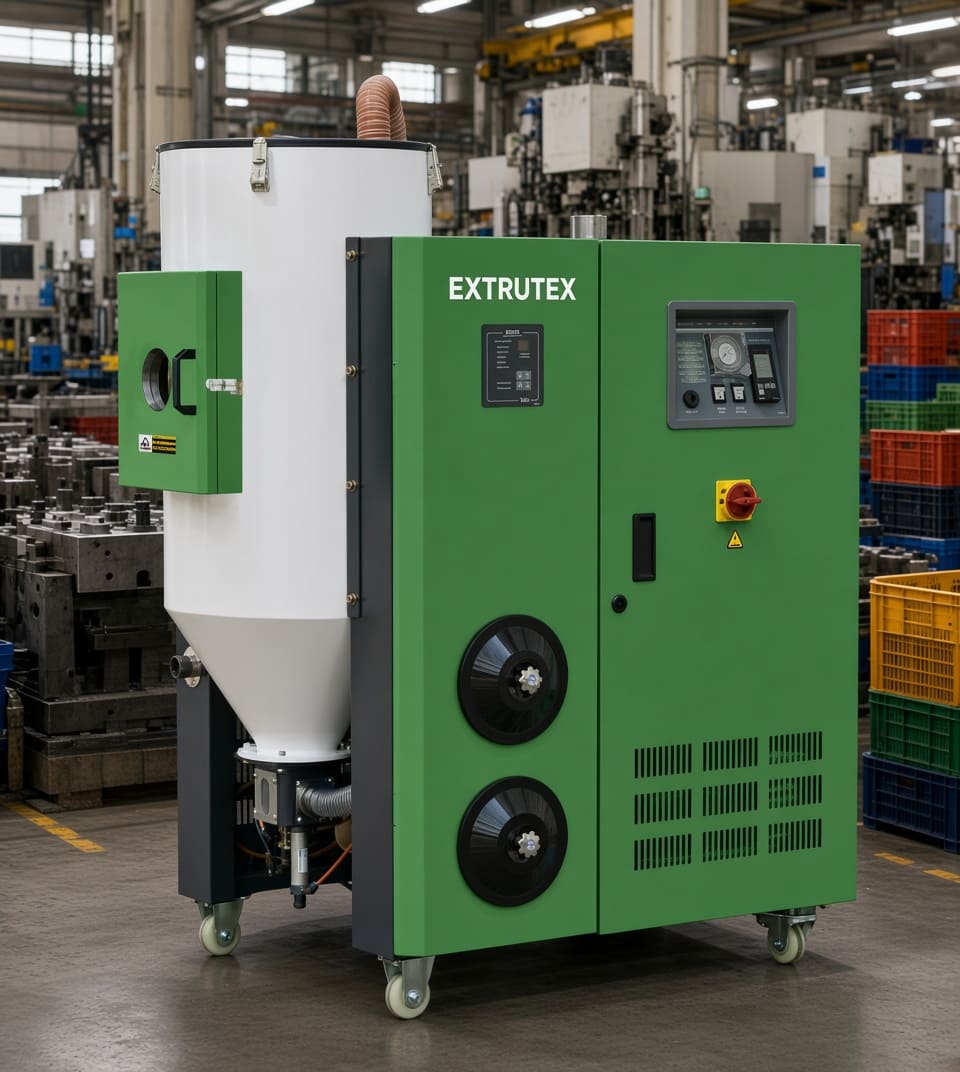

Combination Drying, Dehumidifying & Conveying Systems

Introduction to EXTRUTEX Integrated Material Conditioning Technology

In the modern plastics processing industry, the quality of the final product begins long before the material enters the extruder or injection molding machine. Moisture content, temperature uniformity, and the integrity of the material transfer process are critical variables that determine whether a production run succeeds or fails. Contaminated or improperly dried resin can lead to surface defects, reduced mechanical properties, increased scrap rates, and costly downtime. Recognizing these challenges, EXTRUTEX has developed a sophisticated line of combination drying, dehumidifying and conveying systems that consolidate three essential functions into a single, highly efficient unit.

EXTRUTEX is a specialized manufacturer whose engineering philosophy originates in Austria—renowned for precision mechanical design, rigorous quality standards, and a deep understanding of European industrial requirements. Production takes place in advanced manufacturing facilities located in Nanjing and Shanghai, China. This dual-structure approach allows EXTRUTEX to combine Austrian design excellence with the cost efficiency, scale, and rapid production capabilities of modern Chinese industrial manufacturing. The result is equipment that meets international performance expectations while remaining competitively priced for global markets.

The EXTRUTEX combination systems are specifically engineered for processors who require reliable, closed-loop material handling. Whether the application involves hygroscopic engineering resins such as PET, PA, PC, or PBT, or standard materials that still benefit from controlled drying and contamination-free conveying, these units deliver consistent results. By integrating drying, dehumidifying, and multi-hopper conveying into one machine, EXTRUTEX eliminates the need for separate standalone dryers, dehumidifiers, and vacuum loaders, thereby reducing floor space, simplifying installation, and lowering overall energy consumption.

This comprehensive product overview explores the technical principles, performance characteristics, construction details, main components, and full technical specifications of the EXTRUTEX combination systems. It is intended for production managers, process engineers, purchasing specialists, and technical decision-makers who require detailed, factual information before specifying equipment for their facilities.

Performance Characteristics

The core strength of the EXTRUTEX combination system lies in its carefully engineered performance features. Each characteristic has been developed to address real-world operational problems encountered in plastics processing plants. Below is a detailed examination of the six primary performance advantages that define the series.

Why Closed-Loop Design Matters

Many conventional drying systems rely on open or semi-open circuits. In such designs, a portion of the process air is continuously exhausted and replaced by ambient air. While this approach can work in controlled environments, it becomes problematic when ambient humidity fluctuates or when the plant is located in a tropical or subtropical climate. The closed-loop philosophy adopted by EXTRUTEX removes ambient air as a variable. Once the system reaches steady state, the only moisture entering the circuit is the moisture released by the plastic pellets themselves. This results in more predictable drying performance, tighter process control, and reduced sensitivity to seasonal or daily weather changes.

Energy Efficiency Considerations

Energy consumption is a major operating cost for any drying system. The double-layer insulated barrel reduces standby heat loss, while the high-efficiency cooler improves the thermodynamic efficiency of the dehumidification cycle. In addition, the ability to convey material to multiple hoppers from a single drying source eliminates the need for multiple independent dryers, each with its own heater, blower, and control system. The cumulative energy savings over a full production year can be substantial, particularly for facilities running continuous or multi-shift operations.

Construction Layout & System Architecture

The physical arrangement of the EXTRUTEX combination system is the result of careful engineering aimed at compactness, accessibility, and process integrity. The unit is typically organized around a central drying and dehumidifying module, with the material conveying components arranged to minimize the length of the transfer lines while maintaining clear access for maintenance.

Overall System Flow

Material enters the system through the vacuum bunker or barrel hopper. From there it is drawn into the material suction box under vacuum created by the air pump. After passing through the material suction filter, the resin is directed into the drying barrel. Inside the barrel, heated process air of low dew point flows through the material bed, extracting moisture. The moisture-laden air then travels to the regeneration section, where the desiccant is periodically regenerated by the regeneration heating box and regeneration blower fan. Cooled, dried air is returned to the drying circuit via the cooler and drying filter. Simultaneously, dried material can be conveyed from the drying barrel to one or more remote hoppers through the closed charging system equipped with the material stop valve.

Key Design Principles

• Modular accessibility – Major components such as filters, valves, and heating elements are positioned for straightforward inspection and replacement without extensive disassembly.
• Minimal material residence in transfer lines – The stop-valve design and optimized piping layout reduce the volume of material that can remain in the conveying path between cycles.
• Thermal isolation – The double-layer barrel and insulated ducts keep process heat where it belongs—inside the drying circuit—rather than heating the surrounding plant air.
• Scalable conveying – The system architecture supports single-hopper or multi-hopper configurations, allowing the same base unit to serve different production layouts.

Main Parts & Component Functions

Understanding the role of each major component helps operators and maintenance teams keep the system performing at its design capacity. The following list corresponds to the construction layout diagram and provides a clear description of every numbered part.

Each of these components is selected and dimensioned according to the specific model size. Larger capacity models naturally employ higher-powered blowers, larger-diameter pipes, and more robust heating elements, while the fundamental process architecture remains consistent across the entire range.

Technical Specifications

The EXTRUTEX combination series is offered in a wide range of sizes to match different production volumes and material throughputs. The table below presents the complete technical data for all standard models. Capacities are given in liters for the drying barrel, with corresponding dry blower airflow, heating powers, pipe diameters, electrical requirements, and overall dimensions.

Notes on the specification table:

• All models operate on standard 380 V / 50 Hz three-phase power, which is the common industrial supply in most export markets. Alternative voltages can be engineered on request.
• Pipe diameter increases from 38 mm on the smaller models to 51 mm on the mid- and large-capacity units to maintain acceptable air velocity and material transport efficiency.
• Overall dimensions are given as Length × Width × Height in millimeters and represent the approximate footprint of the main unit. Additional space should be allowed for access, piping, and hopper placement.
• Actual drying capacity in kilograms per hour depends on the bulk density of the material, the target residual moisture, and the inlet moisture content. The liter capacities listed refer to the volume of the drying barrel.

Applications and Operational Benefits

EXTRUTEX combination drying, dehumidifying and conveying systems are primarily designed for the plastics processing industry. Typical applications include:

• Injection molding of hygroscopic engineering plastics (PA6, PA66, PBT, PET, PC, ABS blends)
• Extrusion of sheet, film, profile, and pipe where consistent moisture control is required
• Blow molding of PET preforms and containers
• Central material handling systems serving multiple machines from a single drying source
• Clean-room or medical-grade production environments that demand closed material circuits

Key Operational Benefits

Floor-space reduction – By combining three functions into one machine, plants free up valuable production area that would otherwise be occupied by separate dryers, loaders, and dehumidifiers.

Simplified installation and commissioning – Fewer interconnecting pipes, fewer electrical connections, and a single control interface reduce installation time and the potential for wiring or piping errors.

Improved process consistency – Closed-loop drying and closed conveying paths remove ambient humidity as a process variable, leading to more repeatable residual moisture levels and fewer quality fluctuations.

Lower energy consumption – Insulated barrels, efficient coolers, and the elimination of redundant heating and blower systems contribute to measurable reductions in electricity usage.

Reduced material degradation risk – Residue-free conveying lines and the absence of stagnant material pockets minimize thermal history and the risk of yellowing or property loss in sensitive resins.

Flexible multi-hopper feeding – The ability to supply up to three hoppers from one unit supports complex production cells without requiring multiple independent drying systems.

Selecting the Correct Model

Model selection should begin with an accurate assessment of the required material throughput (kg/h) and the bulk density of the resin. The drying barrel volume is then chosen so that the residence time at the target temperature is sufficient to reach the desired residual moisture. Airflow (dry blower capacity) must be adequate to fluidize or penetrate the material bed effectively. Finally, the conveying distance and the number of destination hoppers influence the sizing of the air pump and the diameter of the conveying lines. EXTRUTEX technical support can assist with detailed calculations based on specific material data sheets and plant layouts.

Why Choose EXTRUTEX

Customers who specify EXTRUTEX combination systems benefit from a design philosophy that prioritizes closed-loop integrity, energy efficiency, and practical operability. The equipment is built to operate reliably under continuous production conditions, with components selected for durability and ease of maintenance. Documentation, spare-parts support, and technical assistance are structured to serve both domestic Chinese users and international export customers.

In an industry where small variations in residual moisture can translate into significant differences in product quality and scrap rates, the consistent performance delivered by a well-engineered closed-loop drying and conveying system represents a tangible competitive advantage. EXTRUTEX has engineered its combination series specifically to provide that advantage.

This technical overview is based on standard product specifications. Exact performance depends on material type, inlet moisture, ambient conditions, and operating parameters. Always consult the latest official documentation and perform trials with your specific resin before final process qualification.
