EX-Z Cooling Mixer – Round-Barrel-Type High-Speed Cooling Mixer

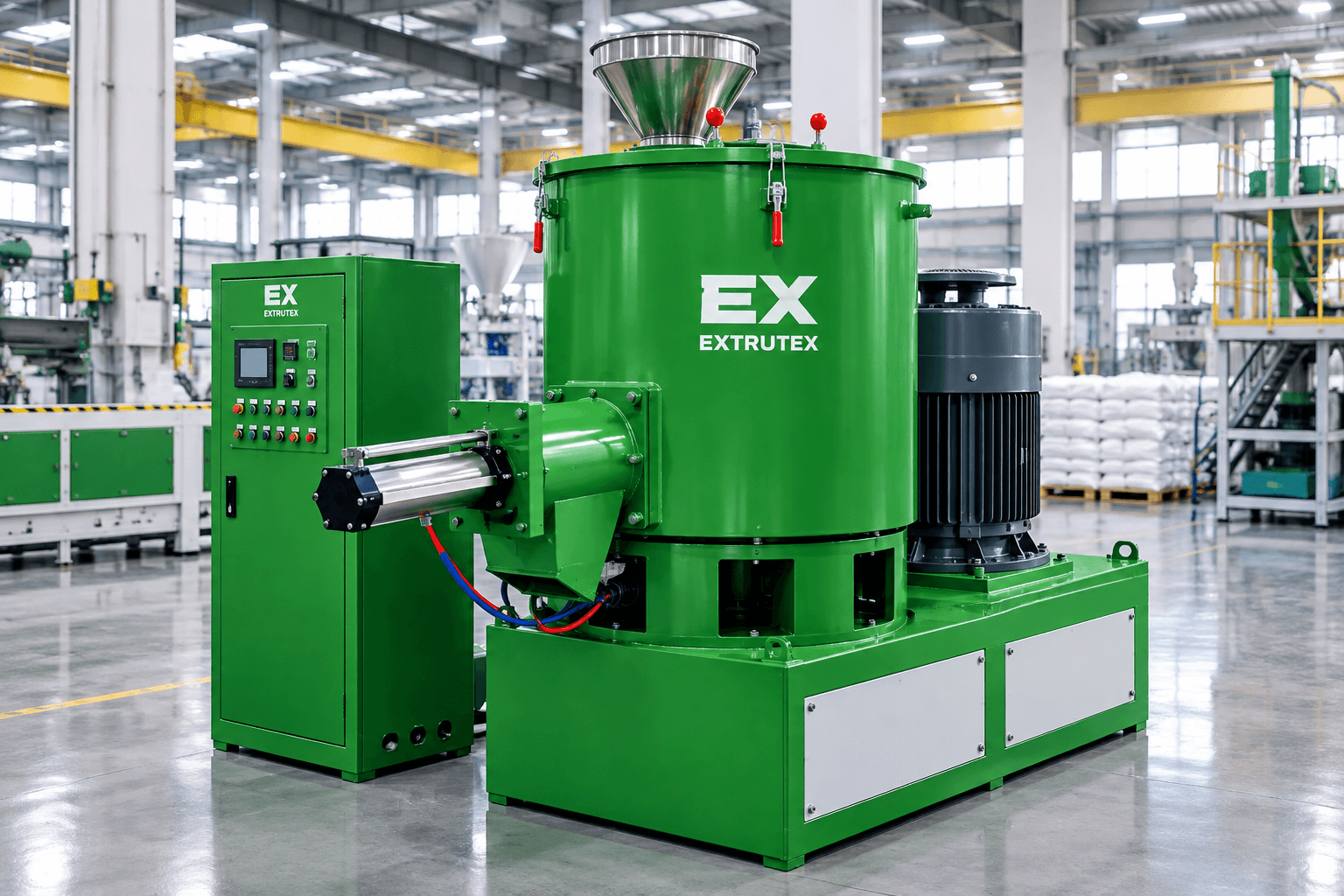

EXTRUTEX EX-Z Cooling Mixer – Round-Barrel Type

The EXTRUTEX EX-Z Cooling Mixer is a high-performance round-barrel-type cooling mixer developed for industrial material mixing, cooling and processing applications. The EX-Z series combines high-speed mixing technology with controlled cooling performance to provide manufacturers with a practical and reliable solution for continuous production environments.

EXTRUTEX develops its equipment with a focus on mechanical reliability, convenient operation, efficient material processing and straightforward maintenance. The EX-Z Cooling Mixer is designed in Austria and manufactured in China at EXTRUTEX production facilities in Shanghai and Nanjing. This manufacturing structure allows EXTRUTEX to combine European-oriented engineering and machine design with modern Chinese industrial manufacturing capabilities.

The EX-Z round-barrel cooling mixer is available in several production capacities, allowing customers to select a machine according to their required tank volume, feeding capacity, mixing weight, power requirements and production scale. The current EX-Z range includes EX-Z600, EX-Z800, EX-Z1000, EX-Z1500 and EX-Z2000.

EX-Z Cooling Mixer Model Specifications

* Specifications are based on the standard EXTRUTEX EX-Z round-barrel-type cooling mixer configuration. Actual production capacity may vary according to material, formulation, bulk density, moisture, processing conditions and operating parameters.

EX-Z Cooling Mixer Technical Features

Advanced Cooling Mixing Technology

The EX-Z Cooling Mixer is designed for manufacturers who require efficient mixing combined with controlled cooling in a single industrial processing system. In many plastic and polymer production processes, mixing generates heat through mechanical friction and high-speed material movement. If this heat is not controlled correctly, material temperature can rise beyond the desired processing range and influence material quality, consistency and subsequent processing performance.

The EX-Z system addresses this requirement by combining high-speed mixing technology with a cooling-oriented machine configuration. The round-barrel structure provides a practical working environment for intensive material movement while the cooling stage helps bring the mixed material toward the required processing temperature before the next stage of production.

This configuration is particularly useful for industrial applications where temperature control, homogeneous mixing and production stability are important. Depending on the formulation and process, the machine can be integrated into larger plastic processing lines, compounding systems, extrusion operations, masterbatch production and other material preparation processes.

Heavy-Duty Round-Barrel Construction

The EXTRUTEX EX-Z series uses a robust round-barrel configuration developed for demanding industrial environments. The machine structure is designed to provide mechanical stability during high-speed operation while maintaining accessibility for inspection, cleaning and maintenance.

A stable machine structure is especially important in high-speed mixing applications. Excessive vibration can increase mechanical stress, contribute to component wear and influence long-term operating reliability. The EX-Z structure is therefore designed around stable operation and controlled mechanical movement.

The different EX-Z models provide tank capacities from 600 litres through 2,000 litres, giving manufacturers a scalable platform for different production requirements. Smaller EX-Z models can be suitable for medium-scale production, while the larger EX-Z1500 and EX-Z2000 configurations are designed for higher-volume industrial operations.

High-Speed Mixing Performance

High-speed mixing is an important part of preparing plastic and polymer materials for downstream processing. Effective mixing can help distribute different components throughout a formulation and create a more consistent material composition before extrusion, pelletizing, molding or another production operation.

The EX-Z Cooling Mixer is designed to provide intensive material movement within the mixing chamber. The mixing system can be configured for different production requirements and material characteristics, while the cooling stage provides an additional process-control function.

For manufacturers, this combination can simplify the material preparation process by bringing mixing and temperature management into a coordinated production sequence.

EXTRUTEX SKD 11 Mixing Blades

One of the important features of the EX-Z series is its replaceable mixing blade design. The blades have a thickness of less than 20 mm and are designed for practical replacement during maintenance operations.

The blade configuration uses SKD 11 anti-abrasion material. SKD 11 is widely used for tooling and industrial components where hardness, wear resistance and dimensional stability are important considerations. For a high-speed industrial mixer, the choice of wear-resistant blade construction can be particularly important when processing abrasive formulations or materials containing mineral, filler or other wear-inducing components.

EXTRUTEX has developed the EX-Z blade arrangement so that blade replacement can be carried out rapidly. Under appropriate maintenance conditions, replacement can be completed in less than five minutes. This is intended to reduce maintenance downtime and make routine service more practical for production operators.

According to the manufacturer's stated comparison, the SKD 11 blade configuration can provide approximately twice the service life of blades using conventional deposited-weld configurations. Actual service life depends on the material being processed, operating speed, formulation, abrasive content, temperature and maintenance conditions.

Convenient Adjustable Discharge Outlet

The discharge system is another important part of the EX-Z design. The mixer is equipped with an adjustable discharge outlet designed to facilitate material discharge and simplify cleaning procedures.

An efficient discharge arrangement can be particularly valuable in production environments where different formulations or grades are processed on the same machine. Easy access to the discharge area can help operators remove remaining material and prepare the machine for the next production cycle.

The EX-Z discharge configuration is also designed to support the addition of supplementary materials while helping reduce unwanted powder leakage. This can contribute to a cleaner working environment and more controlled material handling.

Designed for Stable Industrial Operation

Production equipment must remain mechanically stable throughout repeated mixing cycles. The EX-Z Cooling Mixer is designed with a rigid industrial structure to support stable high-speed operation.

Reduced vibration is beneficial not only for operator comfort but also for mechanical durability and machine performance. A stable structure can help reduce unnecessary mechanical stress on bearings, drives, fasteners and other components.

The EX-Z machines are therefore developed as production-oriented systems rather than laboratory-scale mixers. The larger models are intended for industrial facilities where equipment must operate repeatedly and reliably as part of a larger manufacturing process.

Production Capacity from 600 L to 2,000 L

EXTRUTEX offers the EX-Z Cooling Mixer in five standard configurations: EX-Z600, EX-Z800, EX-Z1000, EX-Z1500 and EX-Z2000. The range provides different tank volumes, feeding capacities and motor configurations so that customers can select a machine appropriate for their production requirements.

The EX-Z600 provides a 600-litre tank capacity and a stated mixing weight of 300 kg. The EX-Z800 increases the tank capacity to 800 litres and provides a stated mixing weight of 400 kg. The EX-Z1000 provides 1,000 litres and a stated mixing weight of 500 kg.

For larger production requirements, the EX-Z1500 provides a 1,500-litre tank with a stated mixing weight of 750 kg, while the EX-Z2000 provides a 2,000-litre tank and a stated mixing weight of 1,000 kg.

The correct model should be selected according to actual material density, formulation, required batch size, feeding characteristics, production cycle, temperature requirements and downstream equipment.

EX-Z Cooling Mixer Applications

The EX-Z series can be used in a wide range of industrial material-processing applications. Depending on machine configuration and material compatibility, typical applications include:

Designed for Efficient Material Processing

The EX-Z Cooling Mixer has been developed with production efficiency in mind. The combination of rapid material movement, cooling capability, accessible wear components and a practical discharge system can help manufacturers simplify their production process.

EXTRUTEX's engineering approach focuses on reducing unnecessary maintenance time while keeping important service components accessible. The quick-change blade concept is one example of this philosophy. Instead of requiring lengthy blade replacement procedures, operators can access and replace the blades rapidly when suitable maintenance procedures are followed.

The adjustable discharge system provides another operational advantage by supporting convenient discharge and cleaning. Together, these features are intended to reduce process interruptions and improve overall equipment utilization.

EXTRUTEX's supplied technical information indicates that the design can contribute to process cost reduction and efficiency improvements of up to approximately 30% in suitable applications. Actual results depend on formulation, machine selection, operating conditions, material characteristics, production organization and the configuration of the complete processing line.

EXTRUTEX – Designed in Austria

EXTRUTEX develops its industrial mixing and plastic-processing equipment with an engineering approach focused on practical production requirements. The EX-Z Cooling Mixer is designed in Austria, with attention to machine functionality, serviceability, mechanical stability and industrial application requirements.

The combination of European-oriented design and large-scale manufacturing capability allows EXTRUTEX to offer industrial machinery to customers in different markets while maintaining a focus on practical machine construction and production efficiency.

Global After-Sales Service and Technical Support

EXTRUTEX supports international customers through after-sales service agents located across the USA, Middle East, European Union and Asia. This international service structure is designed to provide customers with access to technical assistance, maintenance support, spare-parts coordination and machine-service resources after installation.

For industrial equipment, after-sales support is an important part of the overall machine investment. EXTRUTEX therefore works with regional service partners to provide support closer to the customer's production location. The exact service arrangement depends on the customer's country, machine configuration and installation requirements.

Maintenance and Service Advantages

The EX-Z Cooling Mixer has been designed with maintenance practicality in mind. Replaceable mixing blades, an accessible discharge configuration and a robust industrial structure allow routine service operations to be carried out efficiently.

Regular inspection of blades, bearings, drive components, fasteners, electrical systems, discharge components and other wear parts is recommended as part of a suitable preventative-maintenance program. Maintenance requirements will vary depending on operating hours and the characteristics of the processed material.

For abrasive materials, particular attention should be given to mixing blades and other components exposed directly to material flow. Timely inspection can help identify wear before it affects mixing performance or production stability.

Why Choose the EXTRUTEX EX-Z Cooling Mixer?

• Round-barrel high-speed cooling mixer configuration
• Five standard models from 600 L to 2,000 L tank capacity
• Industrial mixing weights from 300 kg to 1,000 kg according to model
• Replaceable mixing blades with less than 20 mm thickness
• SKD 11 anti-abrasion blade configuration
• Rapid blade replacement designed for less than five minutes under suitable conditions
• Manufacturer-stated blade service life of approximately twice that of deposited-weld configurations
• Adjustable discharge outlet
• Design intended to simplify cleaning and material discharge
• Configuration designed to reduce powder leakage during material addition
• Stable industrial structure designed for reduced vibration
• Designed in Austria by EXTRUTEX
• Manufactured in Shanghai and Nanjing, China
• After-sales service coverage through agents in the USA, Middle East, EU and Asia
• Suitable for integration into plastic and polymer processing operations

EX-Z Cooling Mixer for Modern Plastic Processing Lines

Modern plastic-processing facilities increasingly require machinery that can combine production capacity with controllable processing conditions and efficient maintenance. The EXTRUTEX EX-Z Cooling Mixer is designed around these requirements, providing a high-speed mixing system with a dedicated cooling-oriented configuration.

From the compact EX-Z600 to the high-capacity EX-Z2000, the series provides multiple production sizes for different industrial requirements. Customers can select a machine according to tank volume, feeding capacity, mixing weight, motor power, available factory space and downstream production equipment.

The EX-Z design also emphasizes practical maintenance. The replaceable SKD 11 mixing blades, adjustable discharge outlet and stable machine construction are intended to support reliable operation while reducing unnecessary production interruptions.

For manufacturers processing plastics, polymers, masterbatch, compounds, additives or other compatible materials, the EX-Z Cooling Mixer can serve as an important preparation stage before extrusion, pelletizing, molding or other downstream processes.

Engineering for Production. Built for Industry.

The EXTRUTEX EX-Z Cooling Mixer – Round-Barrel Type represents a combination of Austrian-oriented machine design, industrial Chinese manufacturing and international after-sales support. EXTRUTEX focuses on providing practical machinery for customers who require scalable production capacity, efficient mixing, controlled cooling and serviceable mechanical construction.

With production facilities in Shanghai and Nanjing, EXTRUTEX can support international machinery projects while its service-agent network in the USA, Middle East, European Union and Asia provides regional after-sales support.

Whether the requirement is a 600-litre production system or a 2,000-litre industrial cooling mixer, the EX-Z series provides a standardized platform that can be evaluated according to material characteristics, production requirements and complete-line configuration.
