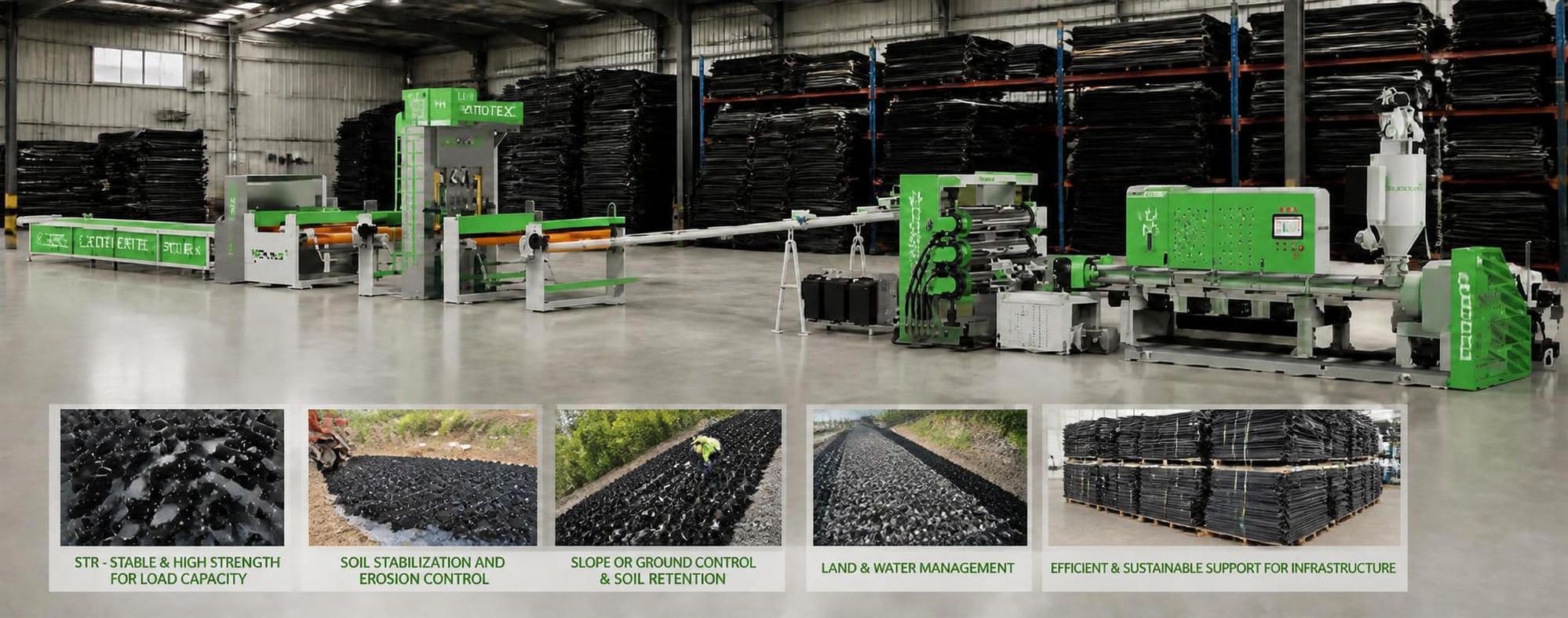

EXTRUTEX HDPE Geocell Sheet Extrusion Line
Industrial sheet extrusion solutions for manufacturing thermoplastic sheets used in three-dimensional geocell production for soil stabilization, load distribution, erosion control and civil infrastructure.
EXTRUTEX HDPE Geocell Sheet Extrusion Lines are designed for processing suitable polyethylene (PE) and polypropylene (PP) materials into sheets used in geocell manufacturing. The sheets are subsequently processed through operations such as slitting, punching and ultrasonic or thermal welding, according to the required geocell design.
With multiple equipment models and nominal output ranges, the EXTRUTEX range supports different production requirements for geosynthetic manufacturers serving road construction, railway engineering, slope protection, embankment reinforcement and other civil engineering applications.
Request Technical Information Contact EXTRUTEXProduct Highlights
- Designed for PP and PE sheet processing
- Sheet thickness: 1.2–2 mm
- Multiple geocell height options
- Automatic sheet slitting options
- Automatic punching options
- Ultrasonic or thermal welding processes
- Three models for different output requirements
- Designed for continuous industrial sheet extrusion
300–700 kg/h
Model-dependent nominal output range
1.2–2 mm
Specified sheet thickness
50–300 mm
Available geocell heights, depending on model
Advanced Geocell Sheet Extrusion Technology
Geocells are three-dimensional cellular confinement systems manufactured from thermoplastic sheet material. During installation, the connected cellular panels are expanded to form a honeycomb-like structure. When filled with soil, sand, aggregate or another specified infill material, the expanded system helps confine the fill and distribute loads across the treated area.
Geocell systems are used in civil engineering to improve the performance of selected soil and aggregate structures. Their effectiveness depends on the material properties, cell geometry, connection strength, installation method, infill and site conditions. Manufacturing consistency is therefore an important part of producing reliable geosynthetic products.
The EXTRUTEX HDPE Geocell Sheet Extrusion Line produces the thermoplastic sheet used in the subsequent manufacturing process. The sheet must meet the required thickness, width, surface quality and material specifications before it is converted into cellular panels.
Depending on the production design, downstream operations can include cutting sheets to width, punching perforations, arranging the sheets, welding selected connection points and inspecting the finished panels. Ultrasonic welding or thermal bonding may be used where suitable for the material and product design.
Stable Sheet Extrusion
Process suitable PP and PE materials into continuous thermoplastic sheets with a specified thickness range of 1.2–2 mm.
Downstream Sheet Preparation
Prepare extruded sheets for subsequent cutting, slitting, punching and cellular panel assembly according to the required product design.
Geocell Panel Manufacturing
Combine prepared thermoplastic sheets through specified joining operations to create expandable cellular structures.
Infrastructure Applications
Support the manufacture of geocell products intended for soil confinement, roadbed stabilization, erosion control and selected civil engineering projects.
How Geocell Sheet Extrusion Supports Geocell Manufacturing
Geocell manufacturing begins with the preparation of a suitable thermoplastic material and the extrusion of a sheet. The sheet then passes through downstream processing stages that determine the geometry and connection pattern of the finished cellular panel.
1. Material Preparation
Select the appropriate polymer grade and formulation according to the intended geocell application, required mechanical properties, environmental exposure and processing conditions.
2. Sheet Extrusion
Melt and process the selected thermoplastic through the extrusion system to produce a continuous sheet within the required thickness and dimensional range.
3. Cooling and Stabilization
Cool and stabilize the sheet so that it can be handled and transferred to downstream processing without unacceptable deformation.
4. Slitting and Cutting
Cut the sheet into the required widths or lengths. Accurate slitting supports repeatable dimensions and efficient downstream production.
5. Punching and Perforation
Where required by the product design, create holes or perforations in the sheet using a suitable punching system.
6. Welding and Panel Assembly
Join the prepared sheets at specified intervals through a suitable ultrasonic or thermal welding process to create the expandable cellular structure.
Process clarification: Sheet extrusion is the
upstream operation. Slitting, punching and welding are downstream
operations that may require separate equipment or integrated
production modules, depending on the selected line configuration.
EXTRUTEX HDPE Geocell Extrusion Line Models
EXTRUTEX offers three model specifications for different sheet extrusion capacity requirements. Model selection should be based on the required production output, sheet width, target material, geocell design and downstream manufacturing requirements.
| Model | Material | Sheet Thickness | Available Geocell Heights | Welding Distance | Output |
|---|---|---|---|---|---|
| EXL-120/1000 | PP / PE | 1.2–2 mm | 50, 75, 100, 150, 200, 300 mm | 340–800 mm | 300–350 kg/h |
| EXL-120/1400 | PP / PE | 1.2–2 mm | 50, 75, 100, 150, 200, 300 mm | 340–800 mm | 400–500 kg/h |
| EXL-150/1600 | PP / PE | 1.2–2 mm | 75, 100, 150, 200, 300 mm | 340–800 mm | 600–700 kg/h |
Technical data note: The specifications above
reproduce the supplied model data. Output is nominal and can
depend on the selected polymer, formulation, sheet thickness
and operating conditions. Confirm the definition and measurement
points of the listed welding distance with the manufacturer
when finalizing the equipment configuration.
Key Technical Features
PP and PE Sheet Processing
The specified line range is designed for processing suitable polypropylene and polyethylene materials. Material grade selection should consider extrusion behavior, mechanical requirements and the intended operating environment of the finished geocell.
Controlled Sheet Thickness
The specified sheet thickness range is 1.2–2 mm. Consistent thickness is important for downstream cutting, joining and finished product performance. Actual tolerances should be agreed in the technical specification.
Automatic Sheet Slitting
A sheet slitting system can cut the extruded sheet to the required width for subsequent processing. Accurate slitting supports repeatable dimensions and efficient material utilization.
Automatic Punching
A punching unit can produce holes or perforations according to the selected sheet design. Hole size, spacing and pattern should be specified according to the intended geocell product.
Ultrasonic Welding Options
Ultrasonic welding can be used in suitable geocell manufacturing processes to join thermoplastic sheets at defined connection points. The welding system must be matched to the material and joint design.
Thermal Joining Options
Thermal welding or bonding may be appropriate for selected material and product configurations. The joining method should be selected based on joint strength requirements and production conditions.
Configurable Geocell Dimensions
The listed models support several geocell height options. Final cell geometry, sheet dimensions, connection spacing and finished panel size must be established according to the product design.
Integrated Production Planning
Extrusion, slitting, punching, welding and inspection can be planned as a coordinated manufacturing workflow. The exact level of automation depends on the selected equipment package.
Geocell Performance and Structural Benefits
Geocells provide three-dimensional confinement for suitable infill materials. When correctly selected and installed, the cellular structure can help distribute applied loads, restrain lateral movement of fill and improve the stability of selected soil and aggregate systems.
Load Distribution
The expanded cellular structure confines infill and helps distribute loads over a wider area. This can be useful in selected roadbed, working platform and load-support applications, subject to engineering design.
Soil Confinement
Cell walls restrict the lateral movement of the confined material. The effectiveness of confinement depends on cell geometry, material properties, infill characteristics, connections and site conditions.
Slope and Erosion Control
Geocells can be used in designed slope protection and erosion-control systems. Their performance depends on slope geometry, drainage, anchoring, infill and the environmental conditions at the installation site.
Dimensional Consistency
Sheet thickness, cell height and connection spacing influence the finished product geometry. Consistent extrusion and downstream processing help manufacturers maintain repeatable production parameters.
Long-Term Performance
The service life of a geocell installation depends on polymer formulation, environmental exposure, installation quality, loading conditions and applicable engineering requirements. Finished products should be tested against the relevant specifications and intended use.
Applications of HDPE Geocell Systems
Roadbed Stabilization
Geocells can be incorporated into engineered road structures to confine aggregate and help distribute loads under suitable design conditions.
Railway Subgrade
Selected geocell systems may be used in railway earthworks and supporting layers where specified by the project design.
Slope Protection
Cellular confinement systems can support selected slope stabilization and erosion-control designs, subject to suitable anchoring and drainage.
Embankment Reinforcement
Geocells can help confine suitable fill materials in engineered embankment and earthwork applications.
Retaining Structures
Geocell products may be used in selected retaining and reinforced soil systems designed by qualified engineering professionals.
Erosion Control
Geocell systems can confine soil or aggregate on suitable surfaces and help reduce material movement when correctly designed and installed.
Working Platforms
Suitable geocell products can be considered for temporary or permanent working platforms where the engineering design requires cellular confinement.
Infrastructure Projects
Geocell products are used in selected civil engineering projects involving soil reinforcement, aggregate confinement and ground improvement.
Geosynthetic Manufacturing
The extrusion line provides sheet material for manufacturers producing geocell panels for infrastructure and ground engineering markets.
How to Select the Right Geocell Sheet Extrusion Line
Selecting a geocell extrusion line requires consideration of both the sheet extrusion process and the downstream manufacturing system. A higher nominal output does not automatically mean that a particular line is the best choice for every product.
1. Required Production Capacity
Evaluate the target production volume and the required operating schedule. The EXL-120/1000 has a listed output of 300–350 kg/h, the EXL-120/1400 has 400–500 kg/h, and the EXL-150/1600 has 600–700 kg/h.
2. Sheet Thickness and Width
The listed sheet thickness range is 1.2–2 mm. Confirm the required sheet width, thickness tolerance and dimensional requirements for the intended product.
3. Required Geocell Height
The first two models list geocell heights of 50, 75, 100, 150, 200 and 300 mm. The EXL-150/1600 lists 75, 100, 150, 200 and 300 mm. Confirm the required product range before selecting a model.
4. Welding and Connection Requirements
The required connection spacing, joint strength, welding method and production speed should be considered when planning the complete geocell manufacturing line.
5. Automation and Factory Layout
Review material handling, sheet cooling, slitting, punching, welding, panel handling and quality inspection. The layout should provide safe access for operation, maintenance and material movement.
Quality Control in Geocell Sheet Production
Quality control begins with the incoming material and continues through extrusion, sheet preparation, joining and final product inspection. Consistent process control helps manufacturers produce sheets and panels that meet the required product specifications.
- Material verification: Confirm polymer grade, formulation and incoming material quality.
- Thickness measurement: Check sheet thickness at multiple positions across the sheet and along the production run.
- Width and edge inspection: Verify sheet dimensions and inspect for defects after slitting.
- Surface inspection: Check for visible defects, contamination, bubbles and irregularities.
- Punching inspection: Verify hole position, size, spacing and edge quality where perforations are required.
- Weld inspection: Evaluate connection consistency and joint strength using suitable test methods.
- Panel dimension checks: Confirm cell height, connection spacing and expanded geometry.
- Finished product testing: Apply relevant material, mechanical and durability tests for the intended application.
Test methods and acceptance limits should be established according to the finished geocell specification, customer requirements and applicable standards. Equipment output alone does not establish the performance of the finished geosynthetic product.
Frequently Asked Questions
What is an HDPE geocell sheet extrusion line?
It is an extrusion system that processes suitable thermoplastic materials into sheets used to manufacture three-dimensional cellular confinement products. The sheets are subsequently slit, punched and joined according to the selected geocell design.
Which materials can the EXTRUTEX line process?
The supplied model specifications list PP and PE. The exact polymer grade and formulation should be selected according to the extrusion system and finished geocell product requirements.
What sheet thickness can the listed models produce?
All three listed models specify a sheet thickness range of 1.2–2 mm. Confirm the required tolerance and operating conditions with EXTRUTEX.
What is the output capacity of the EXTRUTEX models?
The EXL-120/1000 is listed at 300–350 kg/h, the EXL-120/1400 at 400–500 kg/h, and the EXL-150/1600 at 600–700 kg/h. Actual output depends on material and operating conditions.
What geocell heights are available?
The EXL-120/1000 and EXL-120/1400 list heights of 50, 75, 100, 150, 200 and 300 mm. The EXL-150/1600 lists 75, 100, 150, 200 and 300 mm.
Does sheet extrusion produce the finished geocell?
Sheet extrusion produces the thermoplastic sheet used in geocell manufacturing. Slitting, punching and joining operations are then used to form the cellular panels. The exact equipment configuration determines which downstream operations are integrated.
What is the specified welding distance?
The supplied specifications list a welding distance of 340–800 for all three models. The measurement unit and exact definition should be confirmed with the manufacturer before finalizing the design.
Can the line be used for road construction geocells?
The line is intended to manufacture sheets for geocell products used in applications such as roadbed stabilization, soil confinement and infrastructure projects. The finished product must meet the applicable engineering and project specifications.
Why is sheet thickness important?
Sheet thickness influences the dimensions and mechanical characteristics of the finished geocell. Consistency is important for downstream processing and meeting the product specification.
Can ultrasonic welding be used for geocell production?
Ultrasonic welding is one joining method used in suitable thermoplastic geocell manufacturing processes. The appropriate welding method depends on the material, sheet design, joint geometry and production requirements.
How do I choose between the three models?
Compare the listed output capacity, sheet width requirements, geocell heights, material formulation and downstream processing needs. EXTRUTEX can help evaluate the appropriate model based on your planned product range.
Build Your Geocell Manufacturing Production Line
EXTRUTEX provides geocell sheet extrusion solutions for manufacturers serving geosynthetics, soil stabilization and civil infrastructure markets. Select the appropriate model according to your material, sheet dimensions, required output and downstream production requirements.
Contact our team to discuss the EXL-120/1000, EXL-120/1400 and EXL-150/1600 model specifications.
Contact EXTRUTEX Request Technical DetailsHDPE Geocell Sheet Extrusion Equipment for Geosynthetic Manufacturing
The EXTRUTEX HDPE Geocell Sheet Extrusion Line is designed for producing thermoplastic sheets used in the manufacture of geocell products. The listed models process suitable PP and PE materials and support a sheet thickness range of 1.2–2 mm. Model-dependent output ranges extend from 300 to 700 kg/h according to the supplied specifications.
Geocells are expandable cellular confinement systems used in selected civil engineering applications, including roadbed stabilization, soil reinforcement, slope protection, embankment construction and erosion control. The manufacturing process typically includes sheet extrusion followed by downstream slitting, punching and welding operations.
Selecting the appropriate extrusion model requires consideration of the required sheet dimensions, polymer formulation, target production capacity, geocell height and connection spacing. Downstream processing equipment must also be matched to the intended finished product and manufacturing workflow.
EXTRUTEX offers the EXL-120/1000, EXL-120/1400 and EXL-150/1600 model specifications for different production requirements. Contact EXTRUTEX to discuss your geocell manufacturing project and determine the appropriate equipment configuration.
