Group Straw Packing Machine
Description

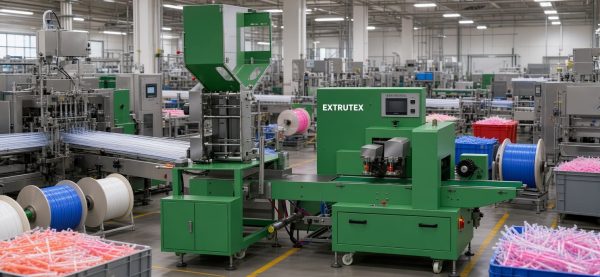

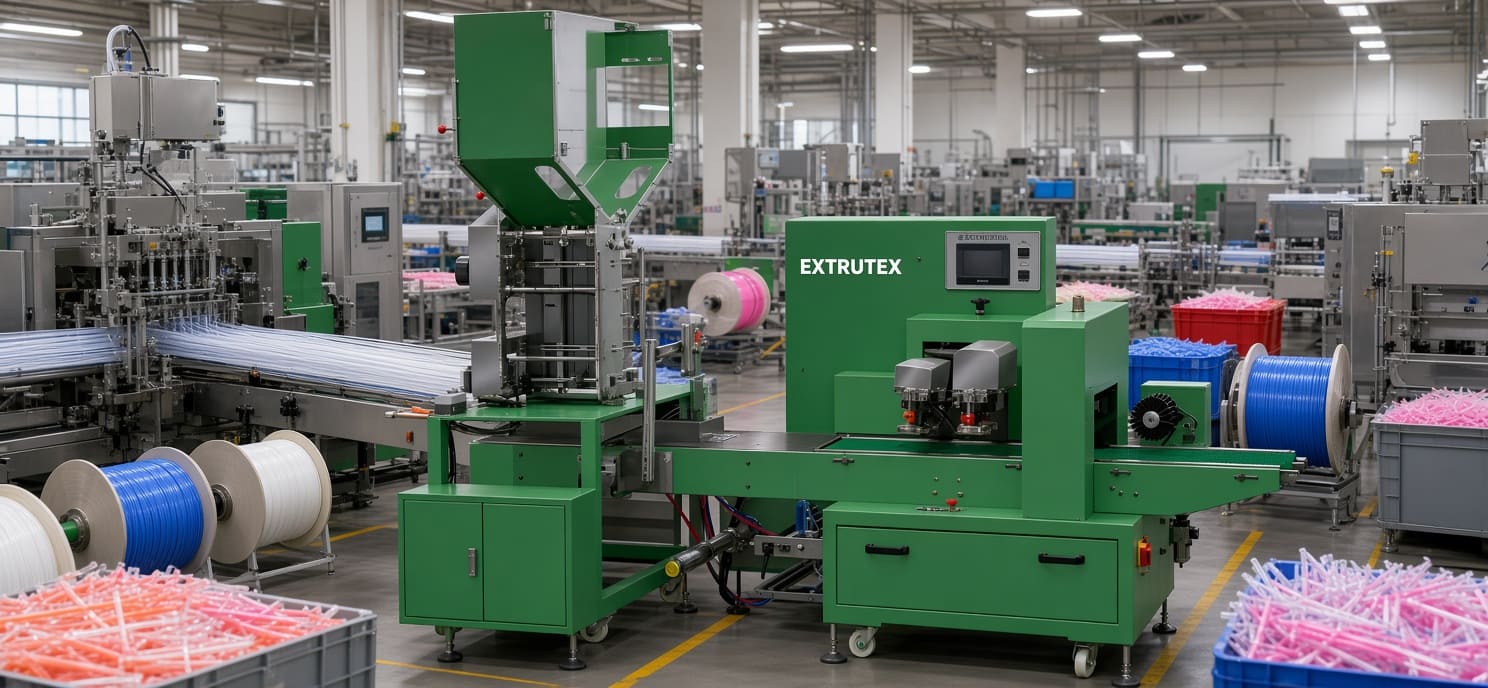

EXTRUTEX EX-600V Automatic Group Straw Packing Machine
The EXTRUTEX EX-600V Automatic Group Straw Packing Machine is designed to automatically count, group and pack multiple drinking straws into individual film bags. Suitable for industrial straw manufacturers and packaging operations, the machine integrates straw grouping, film feeding, bag forming, heat sealing and cutting into an efficient packaging process. Its adjustable packing speed of approximately 3–20 bags per minute makes it suitable for different production requirements and packaging quantities.
The EX-600V supports compatible OPP, PE and other suitable heat-sealable packaging films, with a maximum film width of 530 mm. A photocell registration system helps detect printed marks on packaging film and coordinate the sealing and cutting positions. The touchscreen control system allows operators to adjust bag length and relevant operating parameters conveniently.
Developed under the EXTRUTEX Austrian design approach and manufactured in Nanjing and Shanghai, China, the EX-600V provides a practical packaging solution for businesses seeking automated group packaging for drinking straws and other suitable stick-shaped products. Its configuration is intended to support consistent packaging, straightforward operation and integration into a modern straw production facility.
1. Product Overview
Group packaging is an important stage in drinking straw production. After straws have been manufactured and prepared for packaging, they need to be counted into the required quantities, arranged into groups and enclosed in packaging film. Manual handling can increase labor requirements and make output consistency more difficult to maintain, particularly when production volumes are high.
The EXTRUTEX EX-600V automates the principal steps of this process. It groups multiple straws, feeds packaging film, forms individual packages and performs sealing and cutting. By combining these operations in one machine, it helps simplify routine packaging work and provides a more organized workflow between straw production and finished-product handling.
The machine is designed for applications where drinking straws are packed together in groups rather than individually. The number of straws per bag, final package dimensions and production speed should be selected according to the intended product, film characteristics and packaging requirements.
With touchscreen bag-length adjustment and photocell registration tracking, the EX-600V provides operators with convenient control over important packaging parameters. These functions are especially useful when changing between compatible packaging films or adjusting package presentation for different customers and markets.
2. Key Features and Advantages

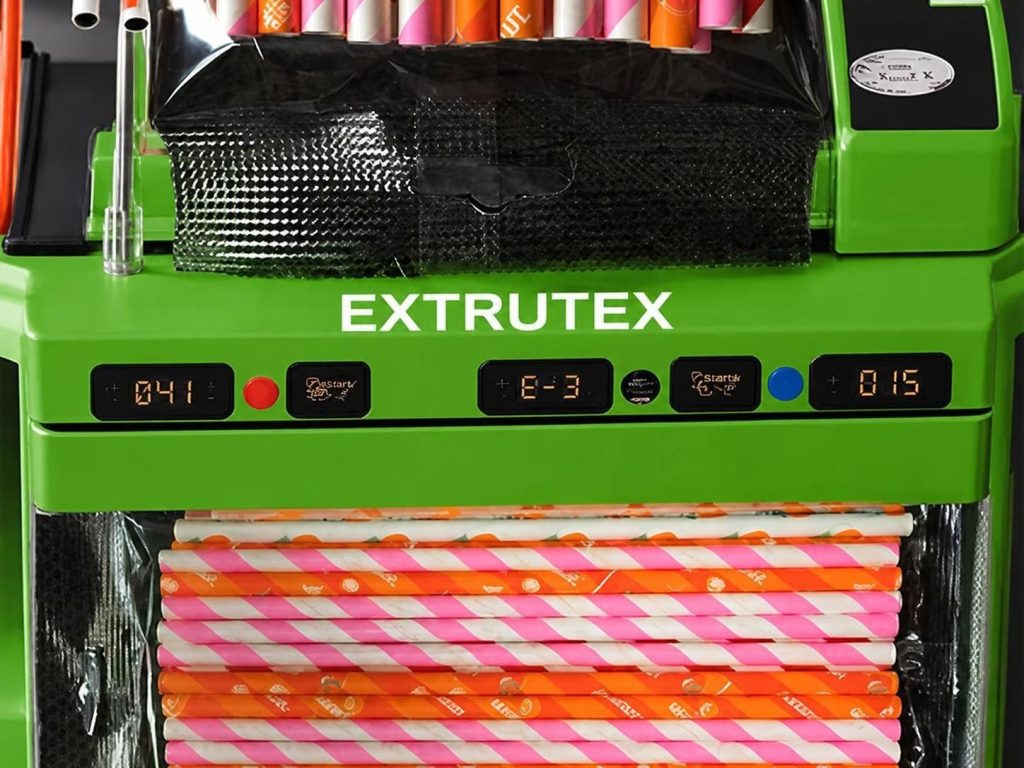

2.1 Automatic Straw Counting and Grouping
The EX-600V automatically groups multiple drinking straws for packaging. Grouping is an essential step in producing consistent packs for wholesale, food-service distribution and retail supply. The intended quantity per bag should be established during machine configuration and confirmed through production testing with the actual straws.
Automated grouping helps reduce repetitive manual handling and supports a more continuous packaging workflow. It can also help operators maintain a consistent packing routine across production batches.
2.2 Adjustable Packing Speed
The EX-600V has an approximate packing speed of 3–20 bags per minute. Actual production output depends on the number of straws in each bag, straw dimensions, package length, film properties and operating conditions.
Smaller or less complex packages may allow a higher bag count per minute, while larger groups or longer packages may require a slower operating speed. For this reason, the stated speed is a reference range rather than a guarantee of identical output for every product.
2.3 Photocell Registration Tracking
When printed packaging film is used, the photocell registration system detects registration marks and helps coordinate film movement with the packaging cycle. This supports more consistent positioning of printed graphics in relation to the sealing and cutting areas.
For the best registration performance, the printed film should have suitable registration marks, sufficient contrast and a compatible film structure. Final performance depends on the artwork, mark position, film quality and machine settings. Plain film and printed film may require different setup procedures.
2.4 Touchscreen Bag-Length Adjustment
The touchscreen control system allows operators to adjust bag length and relevant operating parameters through the machine interface. This makes routine setup more convenient when changing package dimensions or adapting the machine to different straw group sizes.
Electronic parameter adjustment can reduce the need for mechanical adjustments when changing bag length. Operators should still follow the machine operating instructions and verify the resulting package dimensions before starting a full production run.
2.5 OPP and PE Film Compatibility
The EX-600V is designed for compatible OPP, PE and other suitable heat-sealable packaging films. The maximum supported film width is 530 mm. The actual film selection should consider sealing temperature, film thickness, package appearance, mechanical strength and the intended storage and distribution environment.
Not every film described as OPP or PE has the same sealing characteristics. Film construction and sealability should therefore be confirmed with EXTRUTEX before production. Packaging samples can be used to evaluate seal quality, cutting position and overall package presentation.
2.6 Integrated Sealing and Cutting
The machine combines film movement with package sealing and cutting to produce individual bags containing grouped straws. Correct coordination between film feeding, bag length, sealing and cutting is important for achieving clean package edges and consistent finished packs.
Final sealing quality depends on film compatibility, temperature settings, machine speed and other operating conditions. Trial production is recommended whenever the film specification or product configuration changes.
2.7 Practical Industrial Configuration
With a rated power of 3 kW and a machine weight of approximately 600 kg, the EX-600V is intended for installation in a suitable industrial packaging area. Its configuration provides a dedicated solution for group straw packaging without requiring the machine to perform unrelated production processes.
3. Working Principle
The EXTRUTEX EX-600V performs several coordinated operations to transform loose drinking straws into grouped, film-packed products. The exact setup depends on the straw dimensions, desired quantity per bag and packaging material.
- Product preparation: Straws are supplied to the machine in a suitable condition for grouping. Their dimensions, straightness and surface condition should be appropriate for the selected configuration.
- Counting and grouping: The machine arranges the straws into groups according to the configured packing quantity.
- Film feeding: Compatible packaging film is fed into the packaging section. Film alignment and tension should be checked before production begins.
- Registration detection: When printed film with suitable registration marks is used, the photocell detects the marks and helps coordinate the film position with the packaging cycle.
- Bag formation and sealing: The film is formed around the grouped straws and sealed according to the machine configuration and film requirements.
- Cutting and discharge: The packaging cycle separates the finished bag, which can then be collected for inspection, boxing or downstream handling.
Before continuous production, operators should verify the quantity per bag, package length, film tracking, sealing quality and cutting position. These checks help establish a stable process for the selected product.
4. EXTRUTEX EX-600V Technical Specifications
The following table summarizes the principal specifications currently available for the EX-600V. Parameters not listed should be confirmed according to the final machine configuration and application.
| Parameter | Specification |
|---|---|
| Brand | EXTRUTEX |
| Model | EX-600V |
| Machine Type | Automatic Group Straw Packing Machine |
| Main Function | Automatic straw counting, grouping and film packaging |
| Packing Speed | Approximately 3–20 bags/min |
| Packaging Film | OPP, PE or compatible heat-sealable film |
| Maximum Film Width | 530 mm |
| Control System | Touchscreen control |
| Bag-Length Adjustment | Adjustable through the touchscreen interface |
| Film Registration | Photocell registration tracking for compatible printed film |
| Packaging Operations | Film feeding, bag forming, sealing and cutting |
| Power Supply | 220 V, single phase, 50/60 Hz |
| Rated Power | 3 kW |
| Machine Weight | Approximately 600 kg |
| Design | Austrian design approach |
| Manufacturing Locations | Nanjing and Shanghai, China |
Important: The specifications above are based on the available EX-600V product information. Confirm the final electrical configuration, film specifications, supported straw dimensions, package dimensions and other unlisted parameters with EXTRUTEX before ordering. Production speed depends on the actual product and operating conditions.
5. Packaging Film and Package Quality
Packaging film plays an important role in the appearance, protection and handling of grouped drinking straws. The EX-600V supports compatible OPP and PE films, as well as other suitable heat-sealable structures confirmed for the intended application.
OPP Packaging Film
OPP film is commonly selected for packaging applications where transparency, product visibility and printed presentation are important. For printed film, the registration marks must be suitable for photocell detection. The film's sealing layer and construction must also match the machine's sealing process.
PE Packaging Film
PE film may be suitable for applications requiring flexible packaging and compatible heat sealing. Its mechanical properties and sealing behavior depend on the specific film grade and construction. Trial runs help establish appropriate operating settings.
Printed and Plain Film
Plain film can provide a simple packaging appearance, while printed film supports branding, product identification and customer-specific artwork. For printed materials, correct photocell registration helps keep printed elements aligned with the finished bag. Actual print positioning should be checked using production samples.
Consistent Finished Packages
Package quality depends on the combined performance of grouping, film feeding, sealing and cutting. Operators should inspect sample bags for correct straw quantity, neat edges, acceptable seal strength and consistent positioning. Film specifications should remain within the limits confirmed for the machine.
6. Applications
The EXTRUTEX EX-600V is intended primarily for group packaging of drinking straws. Its suitability for a particular straw type should be established through sample testing and configuration confirmation.
- Plastic drinking straws: Group packaging of compatible straight drinking straws for food-service and distribution channels.
- Paper drinking straws: Packaging of compatible paper straws, subject to the product dimensions and handling requirements.
- Flexible drinking straws: Group packaging of suitable flexible straws where the shape and flexibility are compatible with the machine's grouping and feeding arrangement.
- Food-service supplies: Packaging for manufacturers and suppliers serving restaurants, cafes, hotels, catering companies and institutional customers.
- Wholesale distribution: Preparing grouped straw packs for bulk handling, storage and distribution.
- Private-label packaging: Using compatible printed film to support customer-specific branding and product presentation.
Other narrow, stick-shaped products may be considered only after sample testing and confirmation that the product dimensions, grouping method, material characteristics and packaging requirements are compatible with the machine. Suitability for non-straw products should not be assumed without technical review.
7. Integration into a Straw Production Line
The EX-600V can serve as a packaging stage within a drinking straw manufacturing operation. A typical production workflow may include raw material preparation, straw extrusion, cooling, cutting, collection, inspection and final group packaging. The exact upstream equipment depends on the straw material, product design and factory layout.
When integrating the EX-600V into an existing production area, manufacturers should consider the transfer of straws from the preceding process, available floor space, operator access, finished-package collection and the required production rate. The packaging machine should be configured to match the actual dimensions and quantities of the finished straws.
Where straws are supplied from a separate production or storage area, a suitable collection and feeding arrangement can help organize the workflow. Any automatic connection between the packaging machine and upstream equipment should be evaluated separately because it may require additional equipment or customized integration.
Before commissioning, the factory should confirm electrical supply, installation space, access for maintenance, film-loading arrangements and the procedure for handling finished bags. These preparations help make commissioning and operator training more efficient.
8. Operation and Maintenance
Correct setup and routine maintenance help support stable packaging performance. Operators should receive appropriate training before using the machine and should follow the supplied operating and safety instructions.
Before Production
- Check that the machine is installed on a suitable, stable surface.
- Confirm the electrical supply matches the machine's final configuration.
- Inspect the packaging film for damage, correct width and compatibility.
- Verify that the photocell can detect the registration marks on printed film.
- Set the required bag length and product quantity according to the approved setup.
- Run test packages and inspect the grouping, sealing and cutting results.
During Production
- Monitor the consistency of the straw groups and the finished bag appearance.
- Check film tracking and registration when using printed packaging material.
- Observe the sealing and cutting areas for signs of inconsistent operation.
- Keep the working area organized and remove packaging waste safely.
- Stop the machine before carrying out adjustments that require access to hazardous areas.
Routine Maintenance
- Clean accessible product-contact and film-handling areas as specified in the manual.
- Inspect relevant moving parts and wear components at the recommended intervals.
- Keep the photocell and its detection area clean and unobstructed.
- Check sealing components according to the manufacturer's maintenance schedule.
- Use approved procedures when replacing parts or performing electrical work.
Maintenance intervals and replacement-part requirements should be based on the final machine manual, operating hours and production environment. Electrical servicing and work on hazardous moving or heated components should be performed by qualified personnel using the required safety procedures.
9. EX-600V vs. EX-600D: Which Model Is Right for You?
EXTRUTEX offers the EX-600V and EX-600D as group straw packaging solutions with different configuration considerations. The appropriate model depends on the required packaging range, production targets, straw grouping method and factory workflow.
| Comparison Point | EX-600V | EX-600D |
|---|---|---|
| Main Application | Automatic group straw packing | Multiple straw packing with configurable feeding arrangements |
| Reference Packing Speed | Approximately 3–20 bags/min | Approximately 8–18 bags/min |
| Maximum Film Width | 530 mm | 530 mm |
| Control | Touchscreen bag-length adjustment | Touchscreen control |
| Film Registration | Photocell tracking | Photocell tracking |
| Feeding Configuration | Confirm according to the selected configuration | Single- or dual-channel configurations, subject to confirmation |
| Power | 3 kW | 3 kW |
| Machine Weight | Approximately 600 kg | Approximately 550 kg |
Choose the EX-600V when you need an automatic group straw packing machine with an approximate speed range of 3–20 bags per minute, touchscreen bag-length adjustment and photocell registration tracking.
Consider the EX-600D when your application requires a different adjustable quantity range, detailed bag-size control or a confirmed single- or dual-channel counting configuration. Discuss your product samples and target output with EXTRUTEX to determine the most suitable model.
The comparison is based on the currently available model information. Confirm the final specifications and optional configurations before placing an order.
10. EXTRUTEX: Austrian Design, Manufacturing in China
EXTRUTEX combines an Austrian design approach with manufacturing in Nanjing and Shanghai, China. This arrangement supports the development and production of industrial equipment for international plastics, packaging and manufacturing markets.
For the EX-600V, the focus is on practical group packaging functions, convenient adjustment of bag length, photocell tracking for compatible printed films and integration into a straw packaging workflow. These functions are intended to help manufacturers organize routine packaging operations and prepare finished straw packs for further handling.
Machine configuration should always be matched to the customer's actual product. Straw dimensions, quantity per bag, required film structure, printing layout and target output are important factors when preparing a machine specification. Providing these details before ordering helps EXTRUTEX evaluate the required configuration and identify any necessary adaptations.
11. Information to Confirm Before Ordering
To select and configure the EXTRUTEX EX-600V correctly, customers should prepare the following information:
- Straw material, including plastic, paper or another compatible material.
- Straw length, diameter, shape and other relevant product dimensions.
- Required number of straws in each package.
- Target production output in bags per minute or bags per hour.
- Packaging film type, width, thickness, structure and sealing characteristics.
- Whether plain or printed packaging film will be used.
- Artwork and registration-mark details for printed film.
- Required bag length and finished package presentation.
- Available factory power supply and installation space.
- Any requirements for connection to upstream or downstream equipment.
Where possible, customers should provide representative straw samples and packaging film samples for technical evaluation. Sample testing can help establish achievable speed, packaging quality, registration accuracy and the most suitable operating parameters for the intended application.
12. Frequently Asked Questions
What does the EX-600V group straw packing machine do?
It automatically counts and groups multiple drinking straws and packages them in film bags through coordinated film feeding, sealing and cutting operations.
What is the packing speed of the EX-600V?
The reference packing speed is approximately 3–20 bags per minute. Actual output depends on the quantity of straws per bag, package dimensions, film characteristics and operating conditions.
Which packaging films can the machine use?
The EX-600V is designed for compatible OPP, PE and other suitable heat-sealable films. Film structure and sealing performance should be confirmed before production.
Can the machine use printed packaging film?
Yes, compatible printed film can be used with photocell registration tracking. The registration marks must be suitable for detection, and the print layout should be checked during setup.
Can operators adjust the bag length?
Bag length and relevant packing settings can be adjusted through the touchscreen interface. Operators should verify the actual package dimensions with test bags before starting continuous production.
What is the maximum film width?
The maximum film width specified for the EX-600V is 530 mm. The suitable film dimensions for a particular package should be confirmed with EXTRUTEX.
What power supply does the EX-600V require?
The available specification lists a 220 V, single-phase, 50/60 Hz power supply and a rated power of 3 kW. Confirm the final electrical requirements before installation.
Can the EX-600V pack products other than drinking straws?
Other stick-shaped products may be considered only after sample testing and technical confirmation. Compatibility depends on product dimensions, shape, material and the required grouping and packaging method.
Where is the EX-600V designed and manufactured?
EXTRUTEX follows an Austrian design approach, with manufacturing in Nanjing and Shanghai, China.
13. A Practical Solution for Automatic Group Straw Packaging
The EXTRUTEX EX-600V Automatic Group Straw Packing Machine provides an integrated solution for counting, grouping and packing multiple drinking straws into film bags. With an approximate packing speed of 3–20 bags per minute, a maximum film width of 530 mm, touchscreen bag-length adjustment and photocell registration tracking, it is designed to support the packaging needs of straw manufacturers and industrial packaging operations.
Compatible OPP and PE films, coordinated sealing and cutting, and a dedicated group-packaging workflow make the EX-600V a practical option for manufacturers preparing straw packs for wholesale, food-service supply and distribution. Final performance depends on the actual product, packaging material and machine configuration.
Contact EXTRUTEX with your straw dimensions, required quantity per bag, packaging film specifications and production target to confirm the most suitable configuration for your application.
EXTRUTEX EX-600V — Austrian Design, Manufactured in Nanjing and Shanghai, China.
