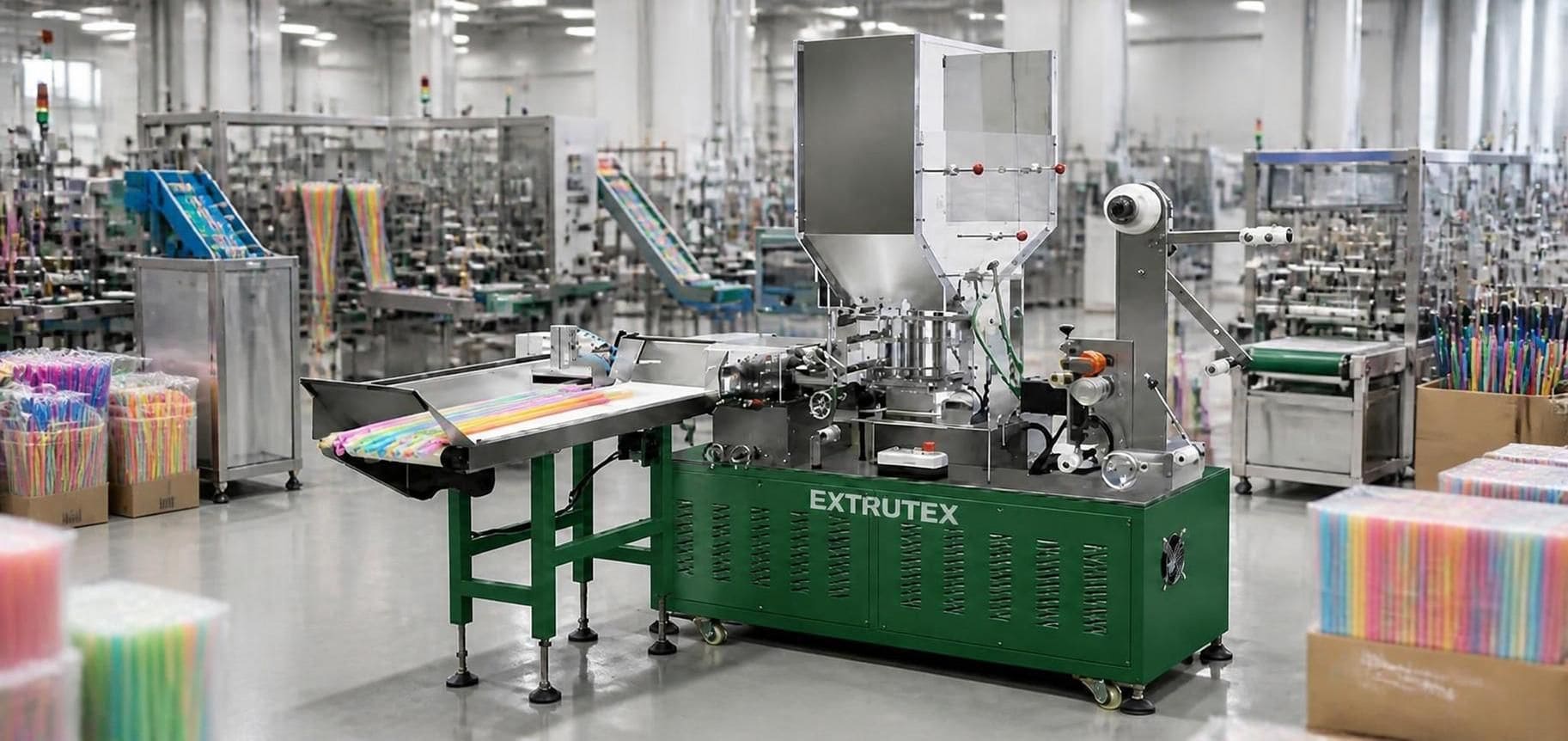

EXTRUTEX Single Straw Packing Machine with Photocell

1. Product Overview

Individual straw packaging is an important stage in the production of drinking straws for restaurants, cafés, hotels, takeaway services, catering companies, food-service distributors and retail markets. Consistent packaging protects the product during handling, transportation and storage while helping manufacturers deliver a clean, organized and professional finished product.

The EXTRUTEX EX-031QS and EX-031S automate the main operations involved in individual straw wrapping. After the straws enter the feeding mechanism, the machine coordinates the packaging material, wrapping process, sealing and cutting operations. Finished packages are then counted and discharged for collection or subsequent handling.

Designed for continuous industrial production, the machines combine photocell registration, servo-driven motion control and automatic detection functions. These features help maintain consistent packaging positioning and reduce interruptions caused by missing straws or packaging-material supply problems.

Manufacturers can select the EX-031QS for applications where high packaging throughput is the main priority, or the EX-031S when integrated two-color printing is required as part of the packaging process. Both models provide a practical solution for businesses seeking to improve production efficiency and reduce dependence on manual packaging.

2. High-Speed Automatic Individual Straw Packaging

The EXTRUTEX EX-031 series is engineered to automate repetitive packaging operations while maintaining a consistent production rhythm. Manual wrapping and cutting can create bottlenecks in high-volume straw manufacturing, especially when every straw must be individually packaged. Automatic packaging helps streamline this stage and improve coordination between straw production and finished-product handling.

The machine performs a coordinated sequence of operations, including straw feeding, packaging-material transport, wrapping, sealing, cutting, counting and finished-package discharge. By integrating these operations into one automated system, manufacturers can reduce repetitive manual handling and establish a more consistent packaging workflow.

The EX-031QS offers a stated production speed of approximately 400–700 pieces per minute, depending on the product and operating conditions. The EX-031S provides a stated speed of approximately 300–600 pieces per minute when equipped with its two-color printing function.

Actual output can vary according to straw dimensions, packaging-material characteristics, printing requirements, machine adjustments and operating conditions. Buyers should confirm the expected production rate for their specific products before finalizing equipment selection.

3. Photocell Registration for Accurate Packaging

Photocell registration is an important feature when using packaging materials with printed designs, logos, brand names or repeating graphics. The system detects registration marks on compatible printed material and helps the machine coordinate material positioning with the sealing and cutting sequence.

Correct registration helps prevent printed graphics from appearing in inconsistent positions on individual straw wrappers. It also supports repeatable package lengths and a more uniform finished appearance when the packaging material has been properly prepared and adjusted.

For manufacturers supplying private-label products, branded straws or individually wrapped drinking straws for food-service customers, this function can contribute to a more professional presentation.

Photocell performance depends on factors including the contrast and consistency of registration marks, packaging-material quality, printing layout and machine settings. Appropriate printed-film or wrapping-paper samples should be evaluated during setup to establish reliable operation.

4. Packaging Materials: Paper and BOPP Film

The EXTRUTEX EX-031QS and EX-031S support paper or BOPP packaging material, subject to material compatibility and machine configuration. This flexibility allows manufacturers to select a packaging format suited to their product specifications, branding requirements and target markets.

Paper Straw Packaging

Paper wrappers provide a familiar individual packaging format for drinking straws used in restaurants, cafés, hotels, takeaway outlets and catering environments. Paper can accommodate printed product information and branding, subject to the selected paper grade, coating, print system and sealing requirements.

When packaging paper straws, manufacturers should verify that the paper material is compatible with the machine's feeding, sealing and cutting systems. Material selection should also consider the straw diameter, wrapper dimensions and intended storage conditions.

BOPP Film Packaging

Biaxially oriented polypropylene, commonly known as BOPP, is widely used in packaging applications where a lightweight film and a clear printed presentation are desired. Compatible BOPP packaging can be used for individual straw wrappers when the material structure and sealing properties match the machine's requirements.

Before production, buyers should confirm the film specification, thickness, roll dimensions, sealing characteristics and suitability for the intended packaging application. Not every BOPP film is directly heat-sealable without an appropriate sealing layer or material construction.

The machine uses a three-side-seal packaging method. The precise wrapper construction, sealing performance and material compatibility should be confirmed against the selected packaging substrate and final product requirements.

5. Four-Servo Motion Control

The EXTRUTEX EX-031 series uses a four-servo motion-control arrangement to coordinate the machine's main operating movements. Servo-driven systems can provide controlled movement and repeatable positioning when appropriately configured for the required straw and packaging dimensions.

Synchronization between straw feeding, packaging-material movement, sealing and cutting is essential for stable automatic packaging. Poor coordination can lead to inconsistent wrapper positioning, production interruptions or unnecessary material waste. Coordinated motion control helps the machine maintain the timing required for continuous operation.

Servo control also supports adjustments for different product dimensions within the machine's specified operating range. The actual adjustment procedure and available parameter settings depend on the final control configuration supplied with the machine.

For manufacturers handling multiple straw specifications, the ability to configure the equipment for different products can support a more flexible production process. Correct changeover procedures and operator training remain important for maintaining packaging quality.

6. Automatic Straw and Packaging-Material Detection

Uninterrupted material supply is important for maintaining productivity in automated packaging. The EXTRUTEX EX-031 series incorporates detection functions using Panasonic sensors to monitor straw feeding and packaging material availability.

When the system detects a missing straw or a lack of packaging material, the machine stops automatically. This helps reduce the likelihood of continued operation without the required product or wrapper material and allows operators to address the cause before restarting production.

Automatic detection is especially useful in production environments where the packaging machine operates at high speed or is integrated into a larger straw manufacturing workflow.

These functions can help reduce empty packaging cycles, avoid some preventable operating errors and simplify routine supervision. Actual performance depends on sensor adjustment, product feeding conditions and the operating characteristics of the complete production system.

7. EX-031QS and EX-031S: Which Model Should You Choose?

EXTRUTEX EX-031QS — High-Speed Packaging

The EX-031QS is the recommended option for manufacturers prioritizing high packaging throughput. With a stated production range of approximately 400–700 pieces per minute, it is suitable for production environments where large quantities of individually wrapped drinking straws must be processed efficiently.

The EX-031QS supports paper or BOPP packaging material and incorporates photocell registration for applications using printed wrappers. Its four-servo control system coordinates the main packaging operations, while automatic detection functions help monitor straw and material supply.

This model is particularly relevant to established straw manufacturers, contract packaging businesses and suppliers serving food-service distributors that need high-speed individual packaging.

EXTRUTEX EX-031S — Packaging with Two-Color Printing

The EX-031S is designed for manufacturers who require two-color printing integrated into the straw packaging process. Inline printing can support product identification, brand presentation and customized wrapper designs without requiring the same printing operation to be completed separately after packaging.

The model has a stated production speed of approximately 300–600 pieces per minute. Its integrated printing function makes it a suitable option for businesses producing branded straws, private-label products or individually wrapped straws for customers with specific packaging requirements.

When selecting this model, buyers should consider printing layout, registration requirements, ink and substrate compatibility, and the expected production speed for their intended wrapper design.

8. Technical Specifications

The following table summarizes the principal technical specifications of the EXTRUTEX EX-031QS and EX-031S Single Straw Packing Machines. Values are based on the supplied model specifications and should be confirmed with EXTRUTEX before ordering.

9. Applications Across the Drinking Straw Industry

The EXTRUTEX EX-031 series can be used by drinking straw manufacturers and packaging operations that require individual wrapping of compatible straw products. Its operating range supports a variety of common straight drinking straw sizes.

Restaurants, Cafés and Food-Service Suppliers

Individually wrapped straws are used in restaurants, cafés, hotels, takeaway outlets and catering environments. Automated packaging helps suppliers prepare products for bulk distribution and customer-specific orders.

Retail and Private-Label Products

Distributors and private-label brands may require customized wrapper designs, product identification or branded packaging. The EX-031S provides an integrated two-color printing option, while the EX-031QS can package products using suitable pre-printed material.

Paper and Plastic Straw Manufacturers

Straw producers can integrate an individual packing machine into their downstream packaging workflow after straw forming and cutting. Material suitability should be checked for each paper, plastic or other compatible straw construction.

Contract Packaging and High-Volume Production

Contract packaging businesses can benefit from automated feeding, sealing, cutting and counting when processing recurring customer orders. The appropriate model depends on the required throughput, packaging design and whether inline two-color printing is necessary.

10. Production Efficiency and Packaging Quality

An efficient straw packaging process depends on more than maximum machine speed. Consistent feeding, reliable material transport, accurate registration and appropriate sealing conditions all contribute to finished-package quality.

The EXTRUTEX EX-031 series brings these operations together in an integrated automatic system. Servo coordination helps synchronize operating movements, while photocell registration supports packaging alignment and automatic detection functions help identify missing product or packaging material.

To achieve stable operation, manufacturers should maintain consistent incoming straw dimensions, use packaging material suited to the machine configuration and follow the recommended setup and maintenance procedures.

Packaging samples should be evaluated during commissioning to confirm sealing quality, cutting position, print alignment and finished-wrapper appearance. Production acceptance criteria should be agreed upon according to the intended application.

11. Installation, Operation and Maintenance

Proper installation and setup help establish reliable operation from the beginning of production. Before commissioning, the installation area should provide sufficient space for the machine, operator access, packaging-material loading and finished-product collection.

The electrical supply should match the final machine specification. Operators should be trained in safe startup, normal operation, changeover, shutdown and emergency procedures. Guards and safety devices must remain in place during operation.

Routine maintenance should follow the manufacturer's instructions and may include inspection of feeding mechanisms, packaging-material guides, sealing components, cutting components, sensors and servo-driven mechanisms. Cleaning and inspection intervals should be adapted to the operating environment and production schedule.

Photocell sensors should be kept clean and correctly aligned. Packaging-material paths should be checked for contamination, damage or incorrect threading. Worn components should be inspected and replaced according to the manufacturer's maintenance guidance.

For reliable long-term operation, buyers should confirm the availability of operating documentation, maintenance guidance, spare parts and technical support as part of the equipment purchasing process.

12. Why Choose EXTRUTEX?

EXTRUTEX combines Austrian design with manufacturing operations in Nanjing and Shanghai, China. This approach connects European design input with manufacturing capabilities in China to supply industrial equipment for international production markets.

For drinking straw manufacturers, the EX-031 series offers a choice between a high-speed individual packaging configuration and a model incorporating two-color printing. Both models are designed to automate repetitive packaging tasks and support consistent production workflows.

• Austrian design: Design-led equipment development for industrial applications.
• Manufacturing in China: Production in Nanjing and Shanghai.
• Two model options: Choose between higher packaging speed and integrated two-color printing.
• Flexible packaging: Support for compatible paper and BOPP packaging materials.
• Photocell registration: Helps align printed packaging material during operation.
• Servo motion control: Coordinates the main automatic packaging movements.
• Automatic detection: Monitors straw feeding and packaging-material supply.
• Industrial applications: Suitable for manufacturers and packaging businesses serving food-service and distribution markets.

13. How to Select the Right Straw Packing Machine

Selecting the appropriate machine requires consideration of both current production needs and future product requirements. Buyers should prepare the main product and packaging specifications before requesting a quotation.

Start by confirming the straw diameter and length. The EX-031 series is specified for diameters from 4 to 12 mm and lengths from 150 to 280 mm. Products outside these ranges require technical evaluation.

Next, identify the packaging material. Paper and BOPP film can have different feeding and sealing characteristics, so samples should be assessed for compatibility. For printed wrappers, provide the artwork or material sample so that registration requirements can be evaluated.

Finally, decide whether inline two-color printing is required. The EX-031QS is designed for higher stated packaging speed, while the EX-031S integrates two-color printing at a lower stated maximum speed. The final selection should balance production volume, branding requirements and total operating needs.

When requesting a quotation, buyers should provide the target straw dimensions, material type, wrapper design, expected production volume, electrical supply requirements and destination country. These details help EXTRUTEX determine the appropriate configuration and confirm the technical requirements before production.

14. Frequently Asked Questions

What is the maximum packaging speed of the EX-031QS?

The EX-031QS has a stated production speed of approximately 400–700 straws per minute. Actual production output depends on operating conditions, straw specifications and packaging material.

What is the difference between the EX-031QS and EX-031S?

The EX-031QS prioritizes high-speed packaging, with a stated range of 400–700 pieces per minute. The EX-031S incorporates two-color printing and has a stated production range of 300–600 pieces per minute.

Which packaging materials can the machine use?

Both models are specified for paper or BOPP film. The selected packaging material must be compatible with the feeding, sealing, cutting and printing requirements of the final machine configuration.

What straw dimensions are supported?

The specified straw diameter range is 4–12 mm, with straw lengths from 150 to 280 mm. Confirm compatibility for unusual straw shapes or materials before ordering.

What does the photocell system do?

The photocell detects registration marks on compatible printed packaging material. This helps synchronize material positioning with cutting and sealing for more consistent wrapper alignment.

Does the machine stop when material is missing?

The machine incorporates sensor-based detection for straw feeding and packaging-material supply. It is designed to stop automatically when a missing straw or material shortage is detected.

Where are EXTRUTEX machines manufactured?

EXTRUTEX machines are designed in Austria and manufactured in Nanjing and Shanghai, China.

How can I obtain a quotation?

Contact EXTRUTEX with your required model, straw dimensions, packaging material, printing requirements, expected production volume and destination country. This information helps determine the appropriate machine configuration.
