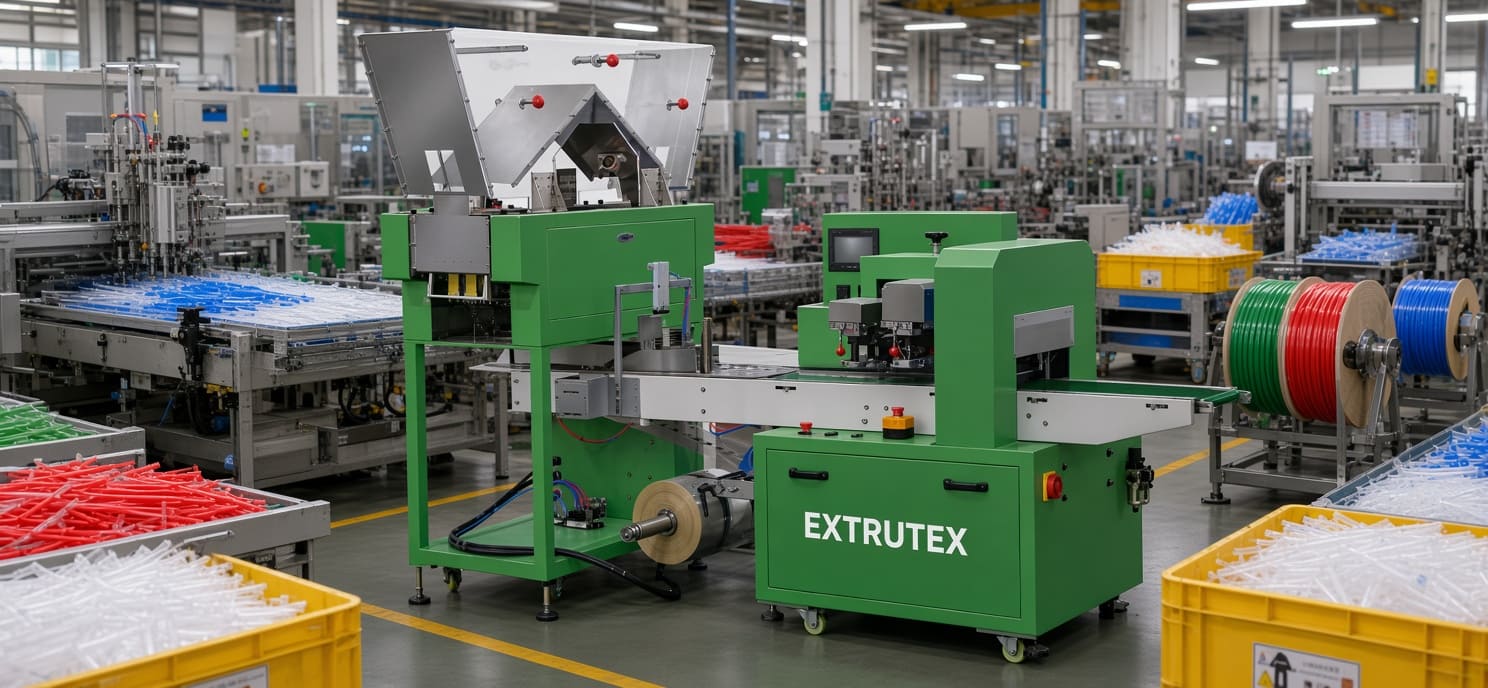

EXTRUTEX EX-600D Multiple Straw Packing Machine

1. Product Overview

The EXTRUTEX EX-600D is an automatic multiple straw packing machine developed for production environments where drinking straws must be counted and packaged in predetermined quantities rather than wrapped individually. It combines counting and bagging operations in one integrated system, helping manufacturers simplify packaging and reduce repetitive manual handling.

The machine is primarily intended for straight and flexible drinking straws that are suitable for the configured feeding and counting system. Operators load the straws into the hopper, where the feeding mechanism distributes them through one or two channels. The counting system measures the required quantity, and a pneumatic pusher transfers the completed group into the packaging film.

The film is formed around the grouped straws and sealed to create an individual package. Back sealing, end sealing and cutting complete the bagging process, after which the finished packs can be collected for storage, carton packing or further distribution.

The EX-600D supports adjustable quantities from approximately 5 to 300 straws per bag. This flexibility allows one machine to accommodate different order sizes and packaging requirements within its operating capabilities. Both even and odd quantities can be configured, subject to the final machine setup and product testing.

The system is designed for manufacturers who want to improve packaging consistency, simplify quantity control and establish a more efficient workflow between straw production and finished-product handling.

2. Adjustable Straw Quantity per Bag

Accurate quantity control is essential when straws are sold in predefined bundles or supplied in standard pack sizes. The EXTRUTEX EX-600D is designed to count and package approximately 5–300 straws per bag, allowing manufacturers to adapt packaging quantities to customer specifications.

Different customers may require different pack sizes. A distributor may order a standard bundle, while a food-service supplier may need larger quantities for commercial use. Adjustable counting allows manufacturers to respond to these requirements without relying entirely on manual counting and bagging.

The required quantity is configured through the machine's control system. The feeding and counting mechanisms work together to deliver the selected group before the pusher transfers it into the packaging film.

The ability to set even or odd quantities, such as 25, 50 or 75 straws, provides flexibility for different order specifications. Actual counting performance depends on straw dimensions, product alignment, feeding stability and the final machine configuration.

For consistent operation, straws should be reasonably uniform in dimensions and suitable for the configured feeding channels. Product samples should be evaluated before purchase, particularly when straws are unusually flexible, have special surface finishes or differ significantly in diameter and length.

3. Single- or Dual-Channel Feeding System

The EX-600D can be configured to discharge straws through one or two feeding channels, according to the selected machine arrangement and product characteristics.

The feeding system receives straws from the hopper and guides them toward the counting section. Reliable product distribution is important because irregular feeding can interrupt counting, delay group transfer or reduce the consistency of finished packs.

A single-channel arrangement may be appropriate for particular products and production requirements. A dual-channel arrangement provides another feeding option where the product, target output and machine configuration support it.

The best arrangement should be selected according to straw diameter, length, flexibility, quantity per bag and the required production rate. Dual-channel feeding should not automatically be interpreted as double the production output, because actual capacity depends on the complete operating cycle and product behavior.

4. Compatible Packaging Film

The EXTRUTEX EX-600D is specified for OPP, CPP, PE or other compatible heat-sealable packaging films. These materials can be used for different bagging applications, provided their construction and sealing properties match the machine's requirements.

OPP Packaging Film

Oriented polypropylene film is used in many packaging applications where a lightweight film and a clear presentation are desirable. Appropriate OPP structures can be considered for straw packaging when their sealing characteristics are compatible with the machine.

CPP Packaging Film

Cast polypropylene film is used in flexible packaging applications requiring suitable heat-sealing properties. The selected film grade should be assessed for sealing performance, thickness, strength and compatibility with the intended straw bundle.

PE Packaging Film

Polyethylene film is used in a range of bagging applications because of its flexibility and availability in different structures. The appropriate PE grade depends on the required package characteristics, sealing method and product-handling requirements.

Packaging film selection should consider material structure, film thickness, roll width, print registration, sealing temperature and package strength. Not every film within a general polymer family is suitable for every machine or sealing configuration.

The specified film thickness range for the EX-600D is 0.03–0.06 mm, and the maximum film width is 530 mm. Buyers should confirm the suitability of their intended film with EXTRUTEX before ordering.

5. Transparent or Printed Film

The EX-600D supports transparent and printed packaging film. This enables manufacturers to select a bagging format according to their branding requirements, product presentation and customer preferences.

Transparent film allows the packaged straws to remain visible, making it easier to identify the product and inspect the contents. Printed film can incorporate brand graphics, logos, product information or other artwork prepared for the intended market.

When printed film is used, the photocell registration system detects printed registration marks and helps coordinate film movement with the selected bag length and cutting position.

For transparent film without registration marks, the tracking function can be disabled through the touchscreen when appropriate. The film then operates according to the configured bag-length settings.

Consistent print registration depends on the quality and contrast of the registration marks, the film structure, printing accuracy and correct machine adjustment. Printed-film samples should be provided for testing when precise artwork positioning is important.

6. Touchscreen Bag-Length Control

Packaging dimensions influence material consumption, finished-product appearance and compatibility with downstream carton packing. The EXTRUTEX EX-600D provides touchscreen bag-length adjustment, allowing operators to configure the required bag length without changing mechanical gears.

The specified bag-length range is 90–600 mm, while the bag-width range is 80–250 mm. These ranges provide flexibility for different grouped straw dimensions and pack quantities, within the limits of the machine's final configuration.

Correct bag sizing helps provide sufficient space for the straw bundle while avoiding unnecessarily large packages. The appropriate length depends on straw length, bundle arrangement, sealing areas and the desired appearance of the finished bag.

When printed film is used, bag-length control works together with photocell registration to coordinate film transport and cutting. The final settings should be established through sample testing to ensure that the printed design and package dimensions meet the buyer's requirements.

7. Servo-Driven Packaging Process

The EX-600D uses servo control for the main packaging movements. Coordinated movement is important because straw feeding, counting, group transfer, film transport, sealing and cutting must operate in the correct sequence.

Servo-driven motion helps provide controlled movement and repeatable positioning during automatic packaging. It also supports adjustments when the manufacturer changes bag dimensions or product quantities within the supported operating range.

The feeding and counting mechanisms first prepare the required group. A pneumatic pusher then transfers the group into the formed packaging film. The sealing and cutting sections complete the bag before the finished product is discharged.

The production cycle depends on the combined performance of these operations rather than on any single component. Appropriate machine adjustment, consistent straw feeding and suitable film selection are therefore important for achieving stable output.

8. Photocell Registration for Printed Packaging

Photocell registration helps maintain the relationship between printed graphics and the cutting position on the packaging film. This is particularly useful when each bag must display a repeated logo, product design or other printed element in a consistent position.

The photocell detects registration marks printed on compatible film. The control system uses this detection to coordinate film feeding and cutting, helping reduce unwanted variation in printed bag length and graphic placement.

Registration accuracy depends on the printed mark, contrast, spacing and consistency of the packaging material. The printing process and film supplier should provide suitable registration marks for the machine's tracking system.

For transparent packaging without printed registration marks, the photocell tracking function can be disabled through the touchscreen, allowing the machine to operate using the configured bag-length settings.

9. How the EX-600D Packing Process Works

1. Straw loading: Operators load compatible straight or flexible drinking straws into the machine hopper.
2. Automatic feeding: The feeding mechanism distributes the straws through one or two configured feeding channels.
3. Quantity counting: The counting system counts the straws until the preset quantity is reached.
4. Group transfer: A pneumatic pusher transfers the counted group into the formed packaging film.
5. Film forming: The packaging material is guided and formed around the grouped straws.
6. Back sealing: The longitudinal seal is created according to the machine's configured packaging arrangement.
7. End sealing and cutting: The ends of the package are sealed and the film is cut to create an individual bag.
8. Finished-bag discharge: Completed packs are discharged for collection, inspection, carton packing or downstream handling.

10. Technical Specifications

The following table summarizes the main technical parameters of the EXTRUTEX EX-600D Multiple Straw Packing Machine. Confirm the final specifications and configuration with EXTRUTEX before placing an order.

11. Industrial Applications

The EXTRUTEX EX-600D is intended primarily for drinking straw manufacturers and packaging businesses that need to supply straws in counted bundles. Its adjustable bag quantity and packaging dimensions make it suitable for different distribution and commercial packaging requirements.

Drinking Straw Manufacturers

Straw producers can use the EX-600D after extrusion, forming and cutting operations to group and bag finished straws. Automatic counting and packaging can reduce repetitive manual work and help standardize pack quantities.

Food-Service Distributors

Wholesalers supplying restaurants, cafés, hotels and catering businesses may require straws packed in predetermined quantities. The machine can support these packaging operations when the straw and film specifications are compatible.

Retail and Wholesale Packaging

Different sales channels may require different bundle quantities and packaging formats. Adjustable quantity and bag dimensions provide flexibility for production orders, subject to machine limits.

Private-Label Packaging

Manufacturers using printed packaging film can present branded bundles or customer-specific designs. Photocell registration helps coordinate printed artwork with package length and cutting position.

Other Uniform Stick-Shaped Products

The machine may be evaluated for other uniform stick-shaped products, such as pencils, bamboo sticks or incense sticks. These applications are not guaranteed by the standard straw configuration. Product samples must be tested to confirm feeding, counting, grouping, packaging and sealing performance before any alternative application is approved.

12. Production Efficiency and Packaging Consistency

Effective packaging depends on the consistency of product feeding, reliable quantity counting and appropriate film handling. The EX-600D integrates these functions into a coordinated automatic process, helping manufacturers organize grouped straws into finished bags with less manual intervention.

Adjustable quantity settings make it possible to prepare different pack sizes without redesigning the entire packaging workflow. Touchscreen bag-length control also allows operators to adjust package dimensions within the machine's specified range.

For printed film, photocell registration supports alignment between the packaging artwork and the cutting process. For transparent film, the tracking function can be disabled when registration marks are not required.

To achieve reliable production, manufacturers should use consistent straw dimensions, compatible film, suitable machine settings and an appropriate feeding arrangement. Routine inspections and operator training are also important for maintaining output quality.

13. Customization and Optional Configurations

Different straw products and customer requirements may call for adjustments to the standard machine configuration. EXTRUTEX can evaluate project-specific requirements to determine which options are technically suitable for the intended application.

Areas for technical evaluation may include feeding-channel configuration, required straw quantity, bag dimensions, packaging film type, printed-film registration and finished-product discharge. The availability of particular options depends on the machine configuration and should be confirmed before ordering.

Buyers should provide product samples, target quantities per bag, film samples, packaging artwork and expected production volume. This information helps establish whether the standard EX-600D meets the requirements or whether additional engineering is needed.

14. Installation, Operation and Maintenance

Correct installation and commissioning help establish stable operation. The installation area should provide sufficient space for the machine, operator access, film-roll replacement, straw loading and finished-bag collection.

The electrical supply must match the final machine specification. The supplied data lists a 220 V, single-phase, 50/60 Hz power supply and 3 kW installed power. Buyers should confirm local electrical requirements before equipment shipment and installation.

Operators should receive training in machine startup, quantity adjustment, bag-length settings, film loading, safe shutdown and emergency procedures. Safety guards and protective devices must remain in place during operation.

Routine maintenance should follow the manufacturer's instructions. Inspection may include the feeding channels, counting components, pneumatic pusher, film guides, sealing components, cutting mechanism and photocell sensor. Components should be cleaned, inspected and maintained according to the production environment and operating hours.

Packaging film should be threaded correctly, and registration marks should be positioned appropriately when printed film is used. Periodic sample checks help verify quantity, bag dimensions, sealing quality and cutting position.

15. Why Choose EXTRUTEX?

EXTRUTEX combines Austrian design with manufacturing in Nanjing and Shanghai, China. The EX-600D offers a practical automatic packaging solution for businesses seeking adjustable straw counting, grouped bagging and flexible packaging dimensions.

• Austrian design: Design-led development for industrial packaging applications.
• Manufacturing in China: Manufacturing operations in Nanjing and Shanghai.
• Adjustable pack quantity: Approximately 5–300 straws per bag.
• Flexible feeding: Single- or dual-channel configurations, subject to requirements.
• Multiple film options: OPP, CPP, PE or compatible heat-sealable film.
• Touchscreen control: Convenient adjustment of bag-length settings.
• Photocell registration: Supports printed-film positioning and cutting coordination.
• Automatic packaging: Integrates counting, grouping, sealing and cutting.
• Custom project evaluation: Technical assessment based on product and packaging samples.

16. Frequently Asked Questions

How many straws can the EX-600D pack in one bag?

The specified adjustable range is approximately 5–300 straws per bag. The final counting performance should be confirmed for the selected straw dimensions and machine configuration.

What is the production speed?

The stated operating speed is approximately 8–18 bags per minute. Actual output depends on the quantity per bag, feeding arrangement, straw dimensions and packaging conditions.

Which packaging films can be used?

The machine is specified for OPP, CPP, PE or other compatible heat-sealable films with a stated thickness of 0.03–0.06 mm. Film suitability should be confirmed before ordering.

Can I adjust the bag length?

Yes. The specified bag-length range is 90–600 mm, with touchscreen adjustment available without changing mechanical gears.

Can the machine use printed packaging film?

Yes. A photocell registration system detects printed marks and helps coordinate film feeding and cutting position.

Can the machine pack products other than drinking straws?

Other uniform stick-shaped products may be evaluated, but their suitability is not guaranteed. Samples must be tested to confirm feeding, counting, grouping and packaging performance.

Where is the EX-600D manufactured?

EXTRUTEX equipment is designed in Austria and manufactured in Nanjing and Shanghai, China.

How do I request a quotation?

Provide your straw dimensions, quantity per bag, packaging film, bag dimensions, required production output and destination country. EXTRUTEX can use these details to evaluate the appropriate machine configuration.
