EXTRUTEX ECK-45 Co-Kneader Extruder
Description

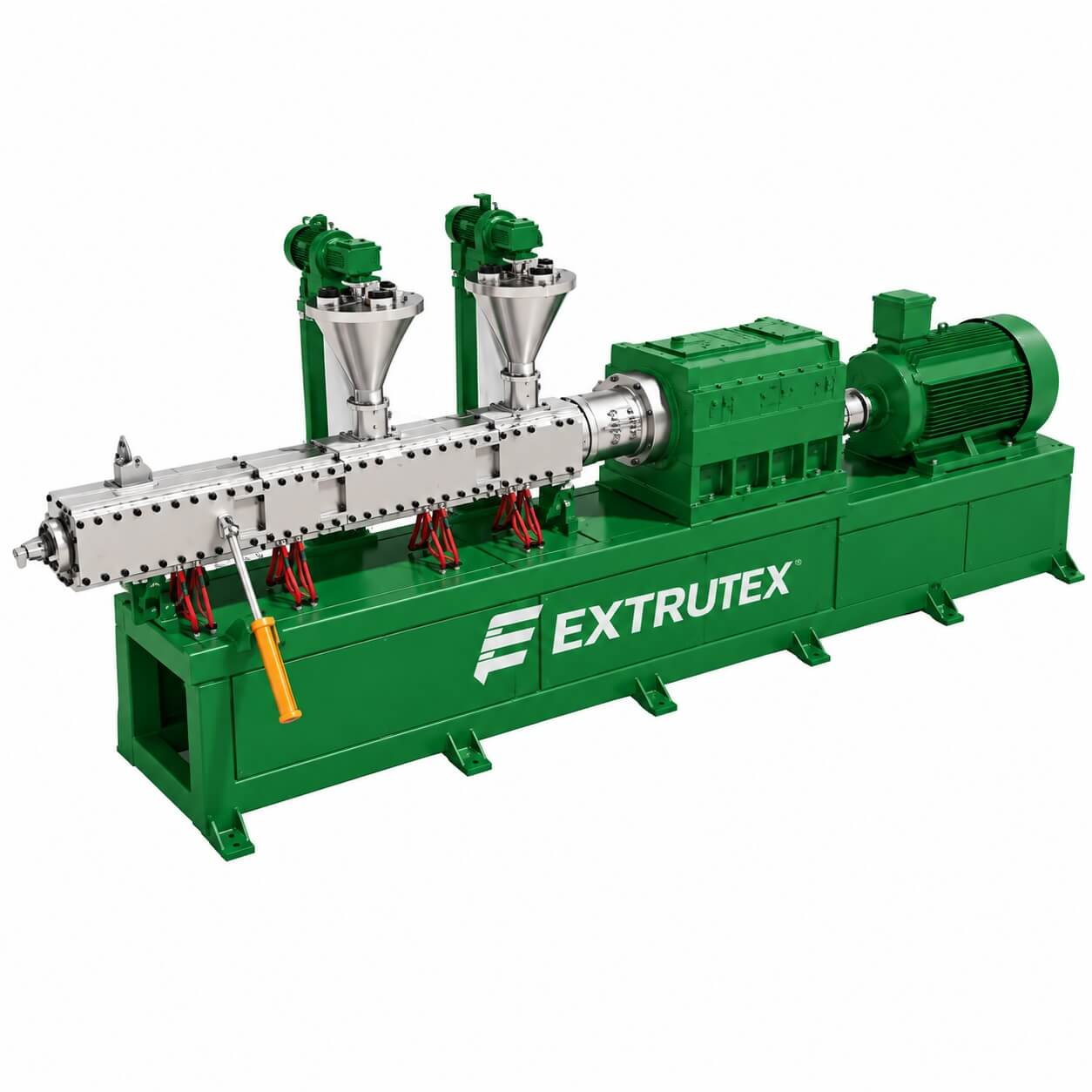

EXTRUTEX ECK-45 Co-Kneader Extruder
EXTRUTEX ECK-45 Co-Kneader Extruder – Professional Low-Shear Compounding System
The EXTRUTEX ECK-45 Co-Kneader Extruder is a professional continuous compounding system designed for demanding polymer processing applications where excellent mixing, low shear, controlled temperature and high product consistency are essential.
With a 45 mm screw diameter, 22 kW drive power, maximum screw speed of 500 rpm and an output capacity of approximately 40–60 kg/h, the ECK-45 provides a compact and highly efficient solution for pilot production, specialty compounds, masterbatch production, research and development, and smaller industrial production requirements.
Unlike conventional single-screw or co-rotating twin-screw extruders, the ECK-45 combines continuous screw rotation with reciprocating axial movement. This unique mechanism allows the polymer and additives to be kneaded and redistributed efficiently while minimizing unnecessary shear and excessive melt temperature.
The result is a highly homogeneous compound with excellent dispersion and controlled thermal history.
ECK-45 Technical Specifications
| Parameter | ECK-45 |
|---|---|
| Model | ECK-45 |
| Screw Diameter | 45 mm |
| L/D Ratio | 10–25 |
| Reciprocating Stroke | 6.75 mm |
| Drive Power | 22 kW |
| Maximum Screw Speed | 500 rpm |
| Output Capacity | 40–60 kg/h |
The ECK-45 can be configured according to the material formulation, additives, filler loading, required output and downstream process.
A Different Approach to Polymer Compounding
The ECK-45 is based on a different compounding philosophy from traditional extrusion technology.
A conventional extruder primarily transports material forward through a rotating screw. The ECK Co-Kneader introduces another dimension to the process: the screw also moves backwards and forwards along its axis.
Special kneading flights on the screw interact with stationary kneading pins installed inside the barrel. During operation, the moving screw flights repeatedly pass the fixed pins, creating a controlled combination of longitudinal and transverse material movement.
The material is continuously:
- Divided
- Folded
- Stretched
- Redistributed
- Recombined
- Homogenized
This creates highly efficient mixing without requiring extremely aggressive mechanical shear.

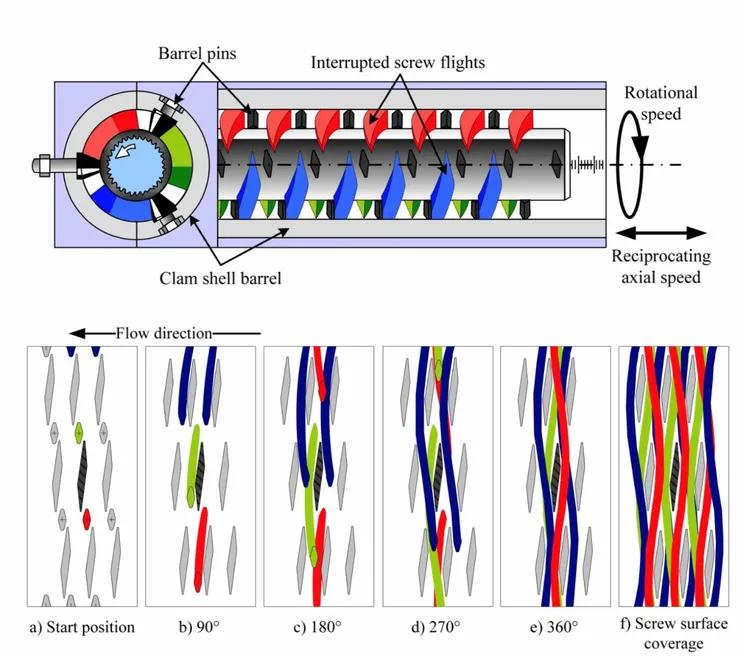

Rotating and Reciprocating Screw Technology
The heart of the ECK-45 is its specially engineered reciprocating screw.
During operation, the screw performs two simultaneous movements:
Rotational movement provides continuous material transport and kneading.
Reciprocating movement changes the position of the kneading flights relative to the stationary pins and creates additional transverse movement of the polymer.
This combination significantly improves the mixing action inside the processing chamber.
Instead of allowing material to travel through a simple forward-flow path, the ECK-45 continuously renews the material around the kneading elements.
This helps produce a highly uniform compound while maintaining controlled processing conditions.

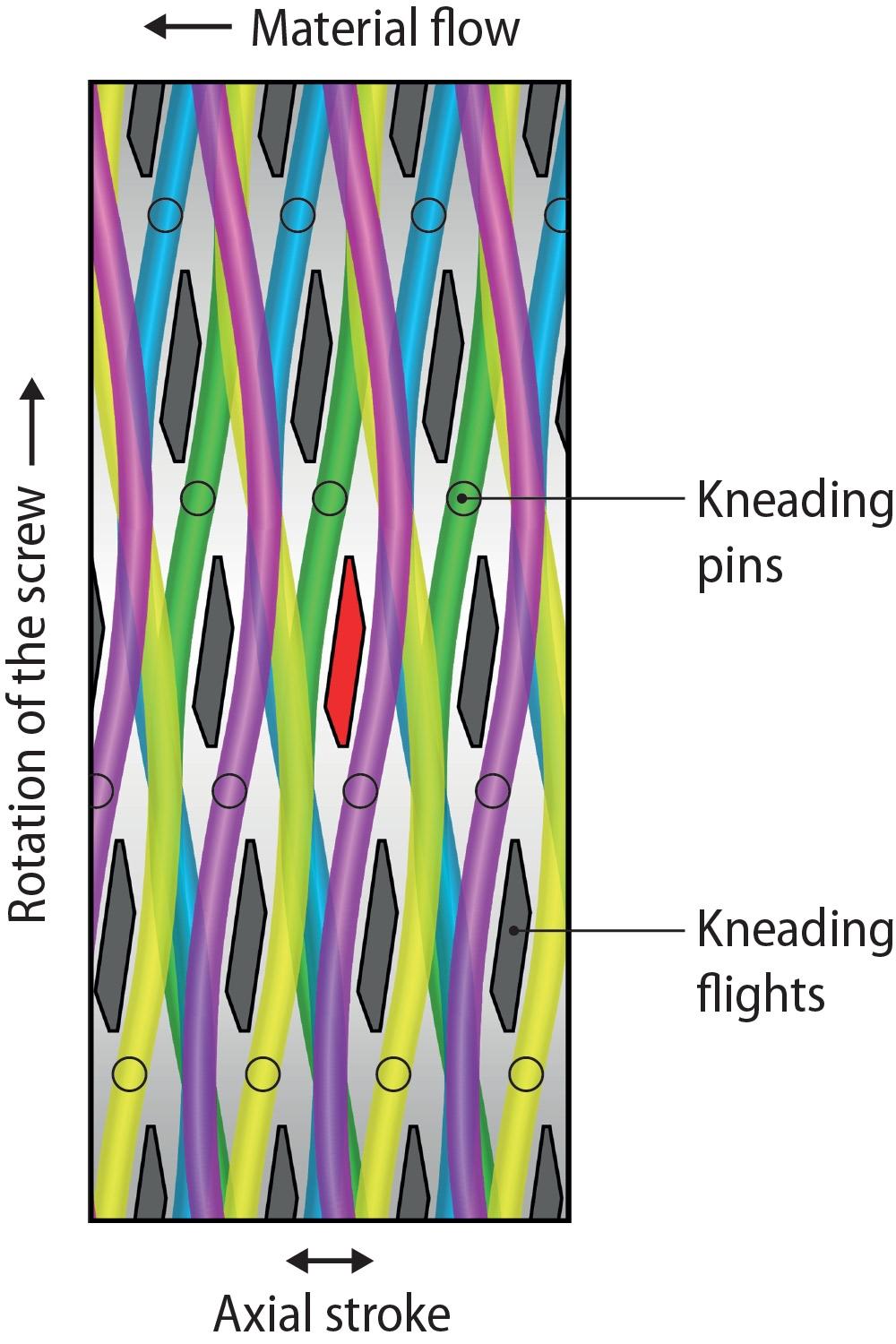

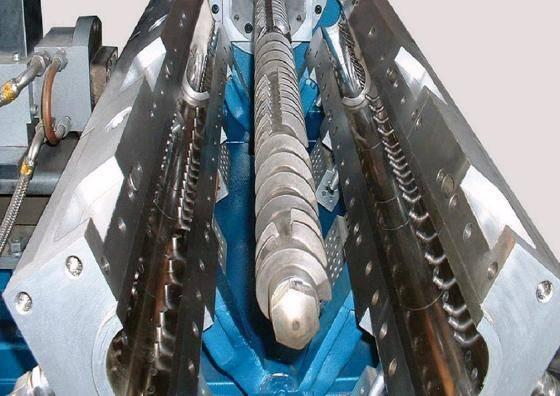

Three Rows of Stationary Kneading Pins
One of the most important features of the ECK technology is the interaction between the moving screw flights and stationary kneading pins.
The kneading pins are mounted into the barrel and extend into the processing chamber. As the screw rotates and reciprocates, its kneading flights repeatedly interact with these fixed pins.
This creates a series of controlled mixing zones throughout the machine.
The interaction provides:
- Excellent distributive mixing
- Effective dispersive mixing
- Uniform filler distribution
- Improved pigment dispersion
- Efficient additive incorporation
- Reduced stagnant areas
- Consistent compound quality
The unique movement also helps maintain continuous material circulation inside the kneading chamber.
Extremely Low-Shear Processing
One of the main advantages of the ECK-45 Co-Kneader is its ability to provide efficient mixing while maintaining relatively low shear.
This is particularly important for materials that can be damaged by excessive mechanical energy or high processing temperatures.
Heat-sensitive polymers, pigments, additives and specialty fillers may lose their desired properties when exposed to excessive thermal and mechanical stress.
The ECK-45 is designed to process materials as they gradually soften and become homogenized rather than subjecting them to unnecessarily severe processing conditions.
Potential benefits include:
- Lower melt temperature
- Reduced thermal degradation
- Better viscosity retention
- Improved color stability
- Reduced additive degradation
- Improved final product consistency
For specialty compounds where material quality is more important than simply maximizing mechanical shear, this processing principle can provide a significant advantage.
Highly Homogeneous Mixing
The ECK-45 provides both dispersive and distributive mixing.
Dispersive mixing helps break down and distribute agglomerated additives, pigments and filler particles.
Distributive mixing ensures that these components are distributed uniformly throughout the polymer matrix.
The combination is particularly important in masterbatch and specialty compound production, where even small variations in pigment or additive distribution can affect the final product.
The ECK-45 can therefore be used to produce compounds with:
- Uniform color
- Consistent filler distribution
- Stable viscosity
- Consistent additive concentration
- Excellent material homogeneity
- Repeatable production quality
High Degree of Self-Wiping
Another important characteristic of the ECK-45 is its high degree of self-wiping.
The continuous movement of the screw and its interaction with the stationary kneading elements helps minimize material accumulation inside the processing chamber.
This reduces the possibility of stagnant areas and unwanted material buildup.
The result is:
- Cleaner processing
- Reduced contamination
- Easier product changeover
- Reduced material residence in dead zones
- Improved operational stability
- Easier maintenance
This feature is particularly valuable for manufacturers producing different formulations or colors on the same machine.

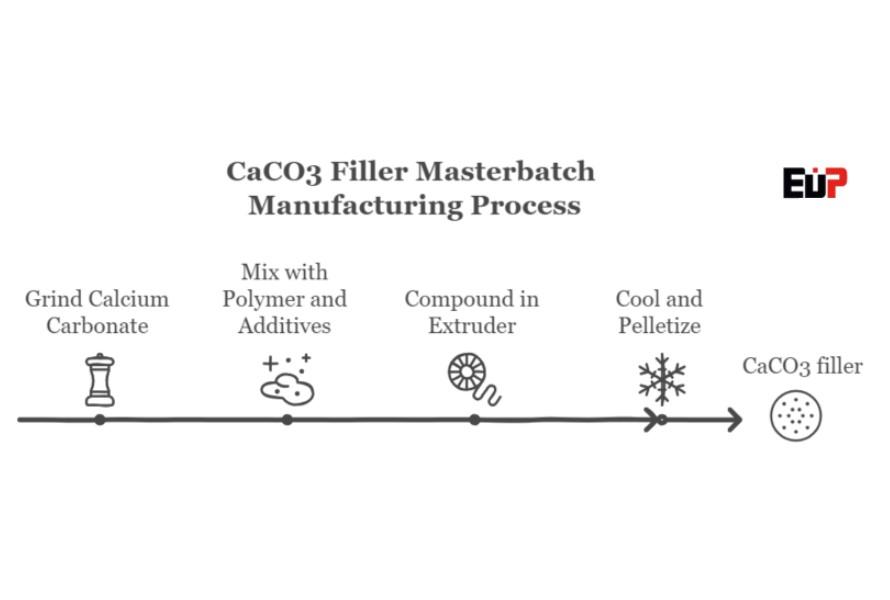

High Filler Loading Capability
The ECK-45 is also suitable for formulations containing high concentrations of fillers and additives.
Depending on the polymer and formulation, applications can include:
- Calcium carbonate
- Talc
- Barium sulfate
- Silica
- Mica
- Aluminum hydroxide
- Magnesium hydroxide
- Carbon black
- Wood flour
- Other mineral fillers
The controlled kneading action helps distribute high concentrations of filler throughout the polymer matrix while avoiding unnecessarily aggressive mechanical treatment.
This makes the ECK-45 suitable for specialty filler compounds where high loading and good dispersion must be achieved simultaneously.
Efficient Processing of Liquid Components
The ECK-45 can also be configured for formulations requiring liquid additives.
Liquid components may include:
- Plasticizers
- Processing oils
- Waxes
- Coupling agents
- Processing aids
- Liquid stabilizers
- Specialty additives
The continuous folding and redistribution of material inside the kneading chamber helps incorporate liquid components into the polymer matrix efficiently.
This makes the ECK-45 a flexible platform for formulations containing both solid and liquid ingredients.

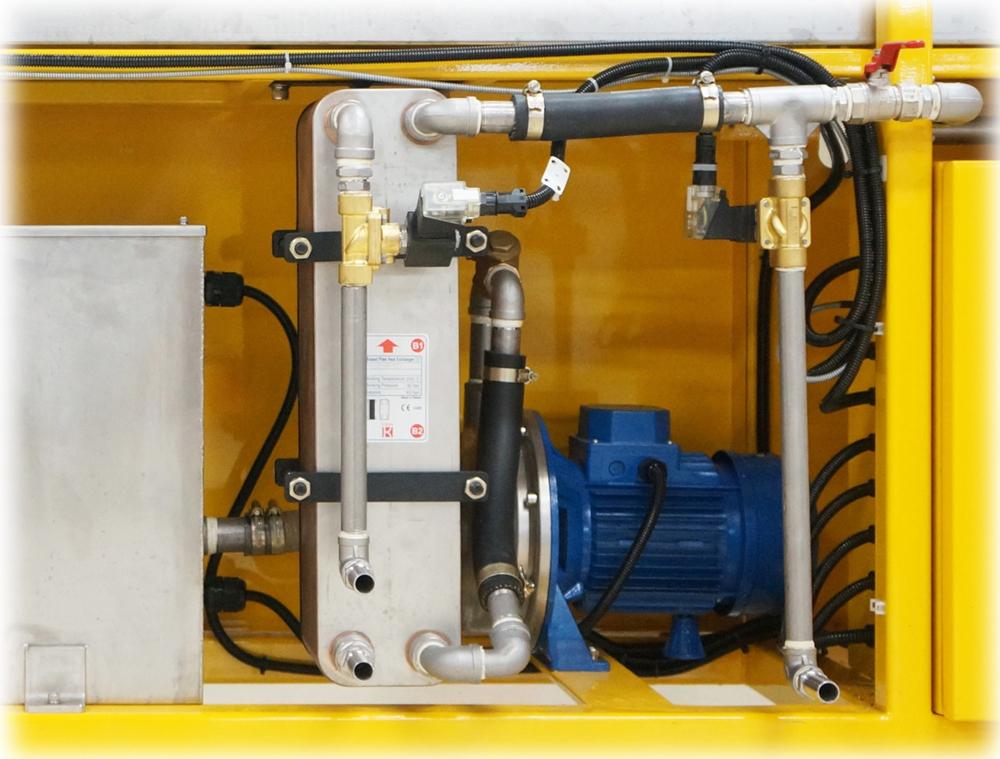

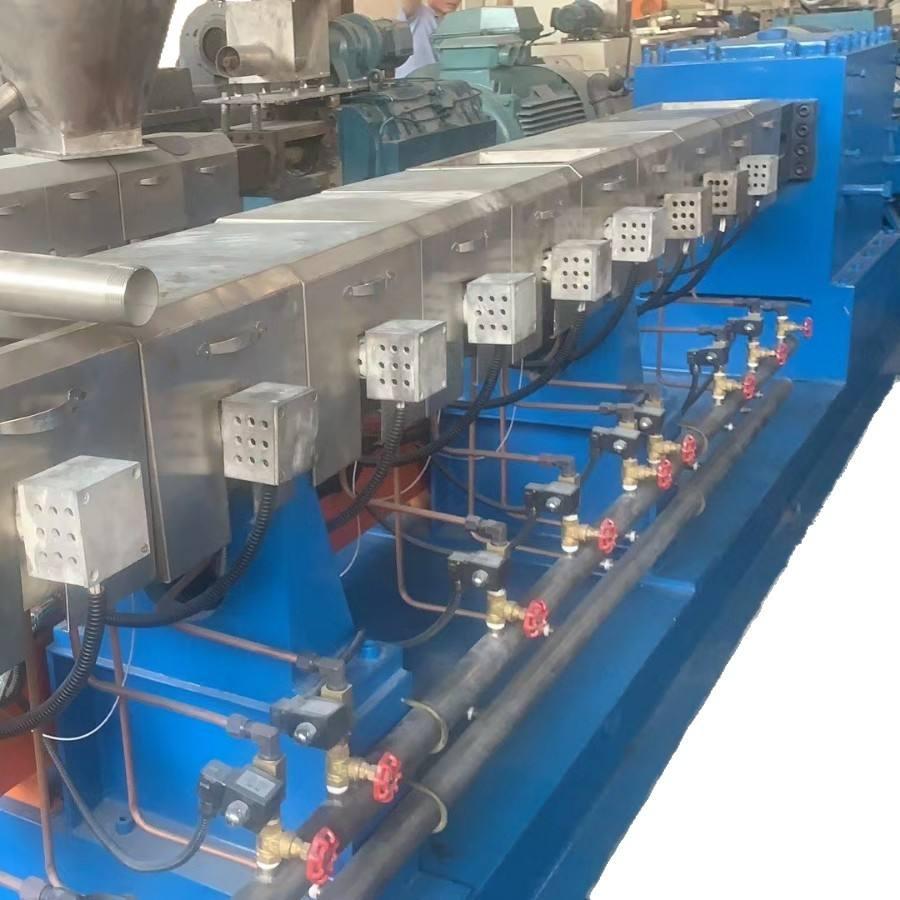

Precise Temperature Control
Temperature control is one of the most important factors in polymer compounding.

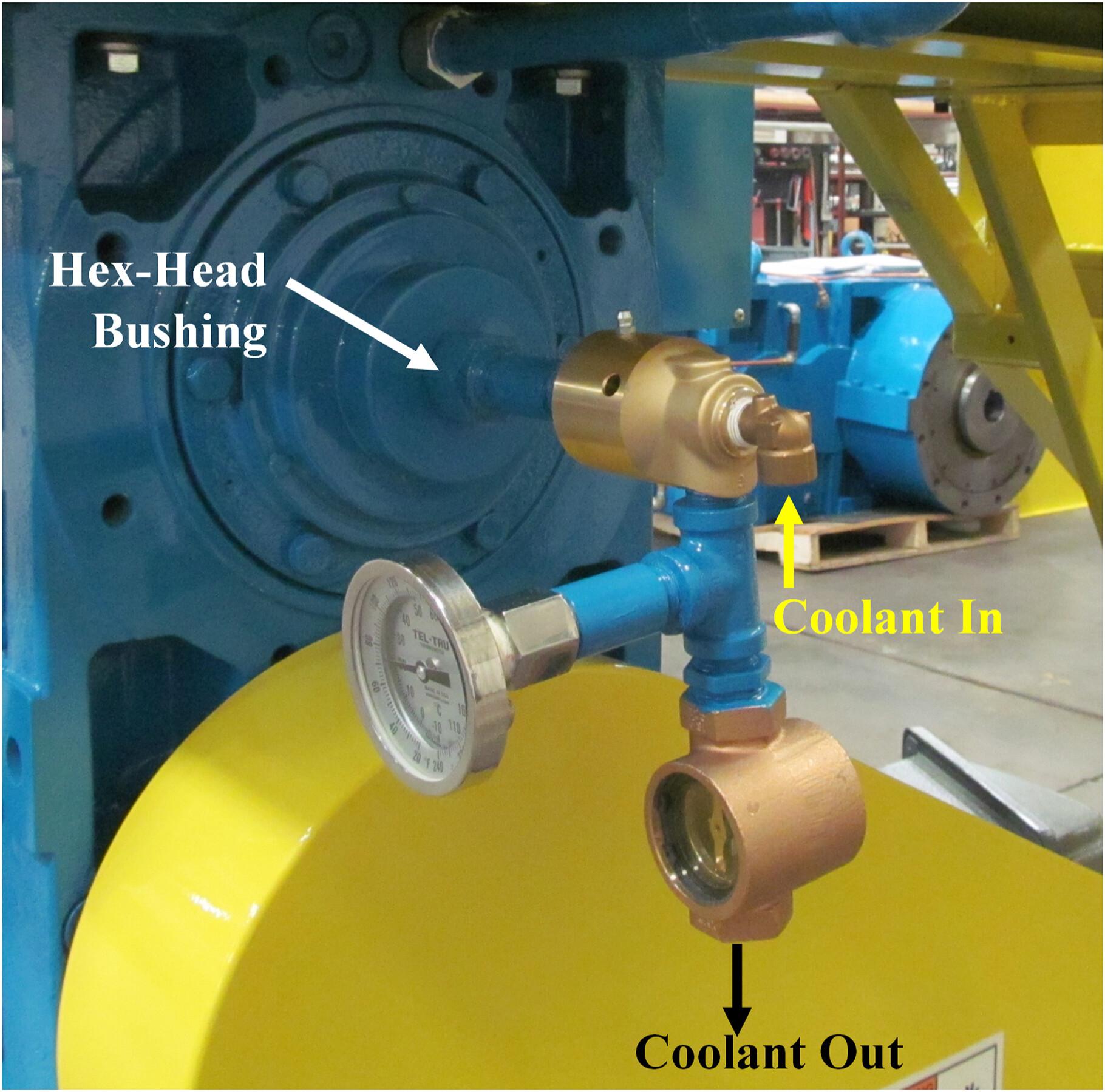

The ECK-45 uses a water cooling system for the barrel and screw to help maintain controlled processing temperatures.
Because the Co-Kneader operates with relatively low shear, less unnecessary heat is generated compared with highly aggressive mixing processes.
The cooling system allows the processing temperature to be controlled accurately according to the characteristics of the polymer and formulation.
This can help provide:
- Stable processing temperature
- Lower melt temperature
- Reduced thermal degradation
- Better viscosity stability
- Improved color consistency
- Better additive performance
- More repeatable production
The principle is simple: mix efficiently while avoiding unnecessary heat.
Stable Pressure and Continuous Processing
The ECK-45 can be equipped with an appropriate end section and breechblock arrangement to maintain stable pressure during material discharge.
Stable pressure is important for consistent extrusion and reliable downstream processing.

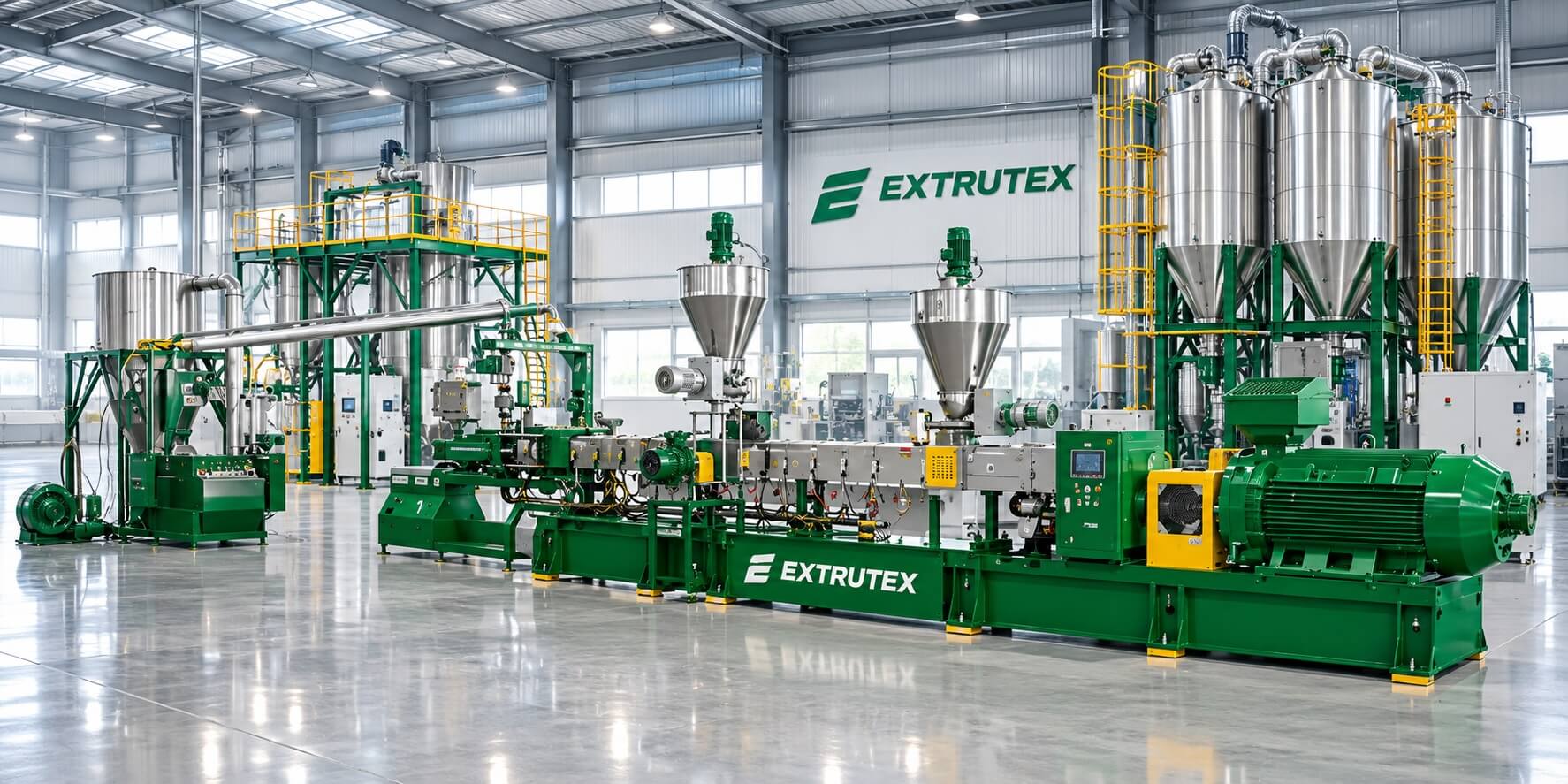

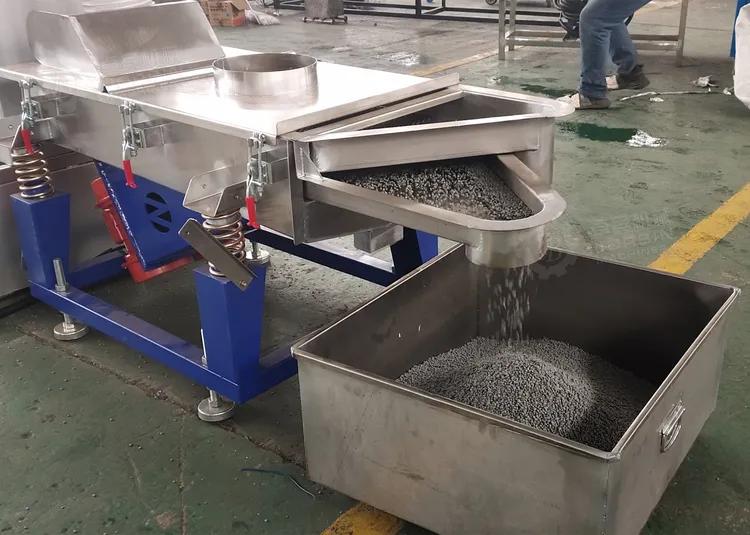

Depending on the application, the ECK-45 can be integrated with suitable:

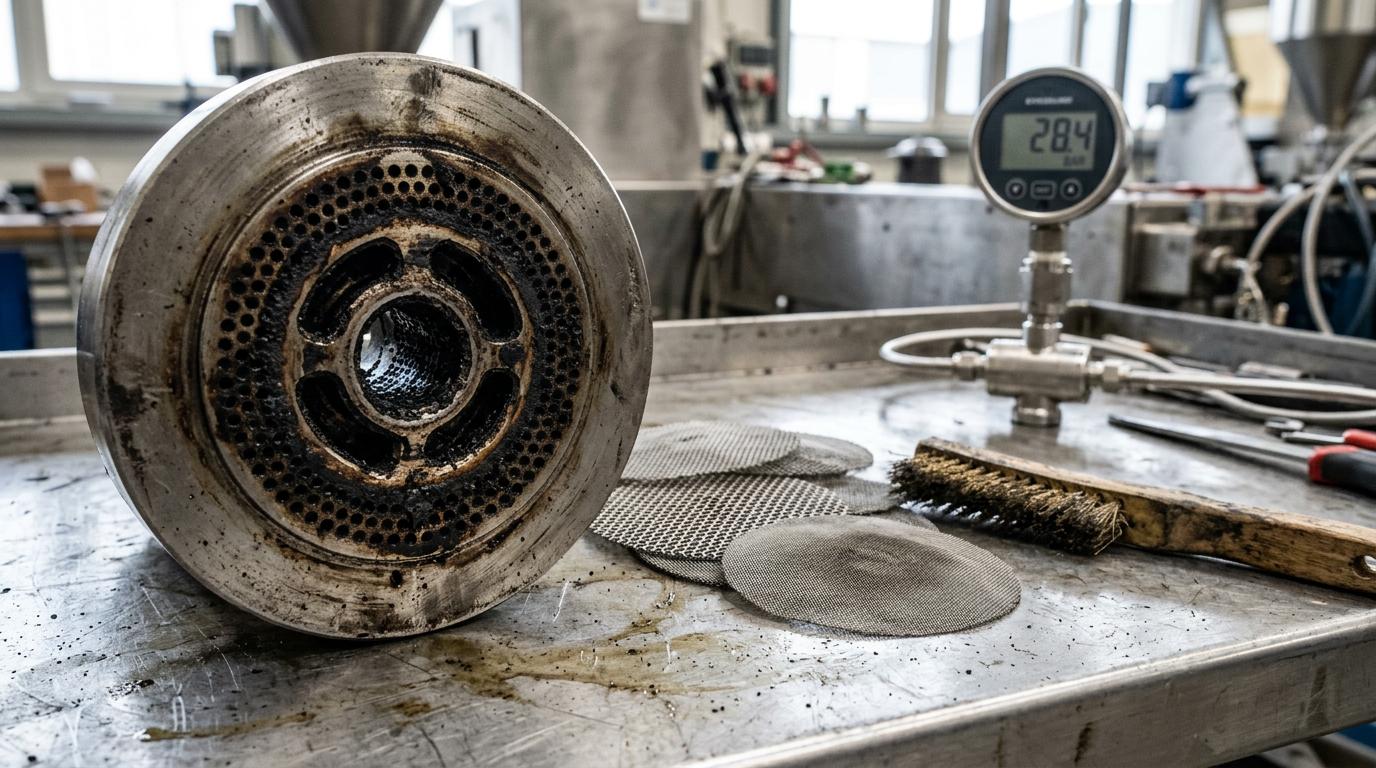

- Melt filtration
- Strand dies
- Pelletizing systems
- Water cooling
- Strand cooling
- Cutting systems
- Automatic conveying
- Packaging systems
This allows EXTRUTEX to provide the ECK-45 as part of a complete compounding solution rather than simply as an individual extruder.

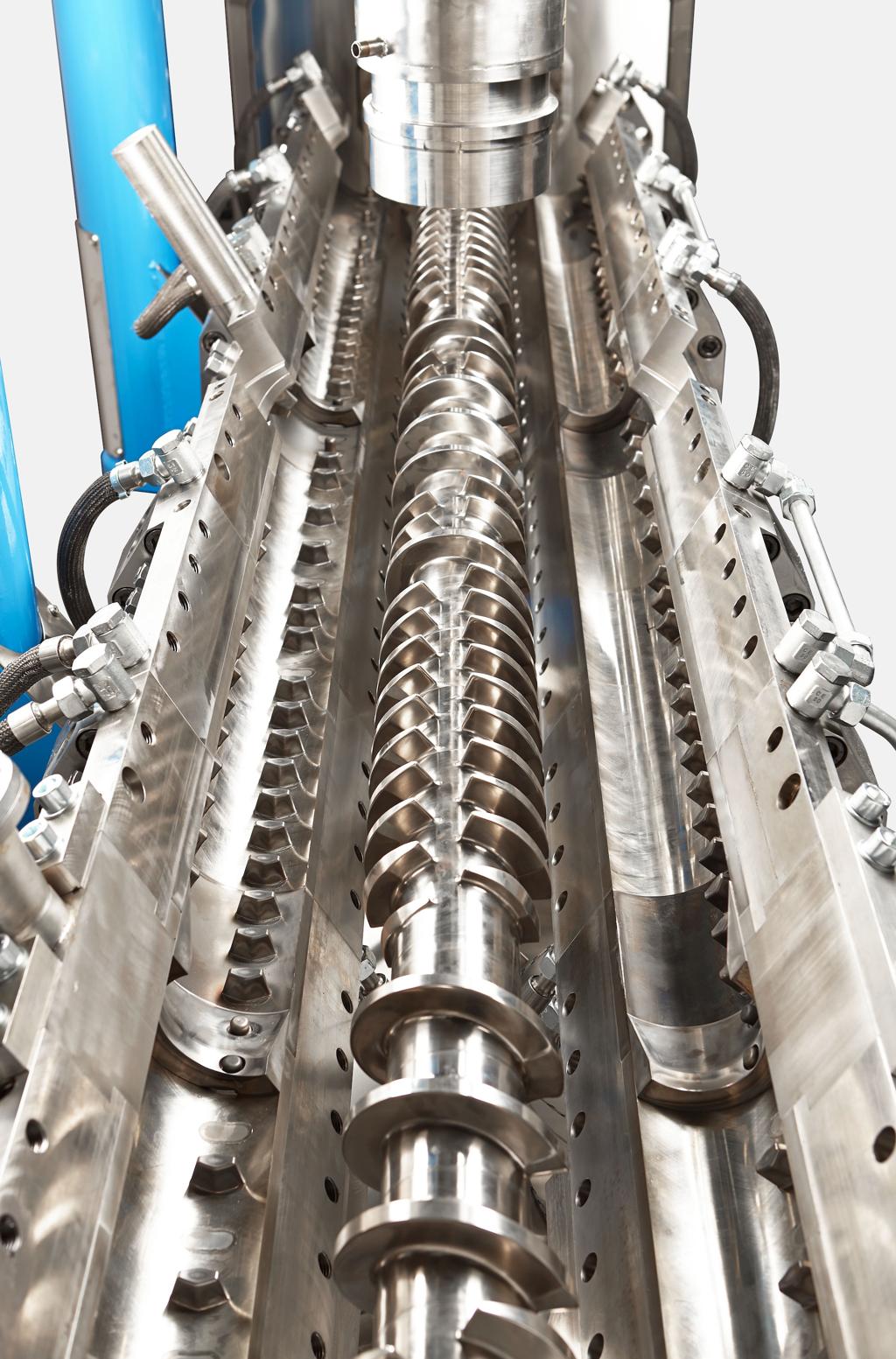

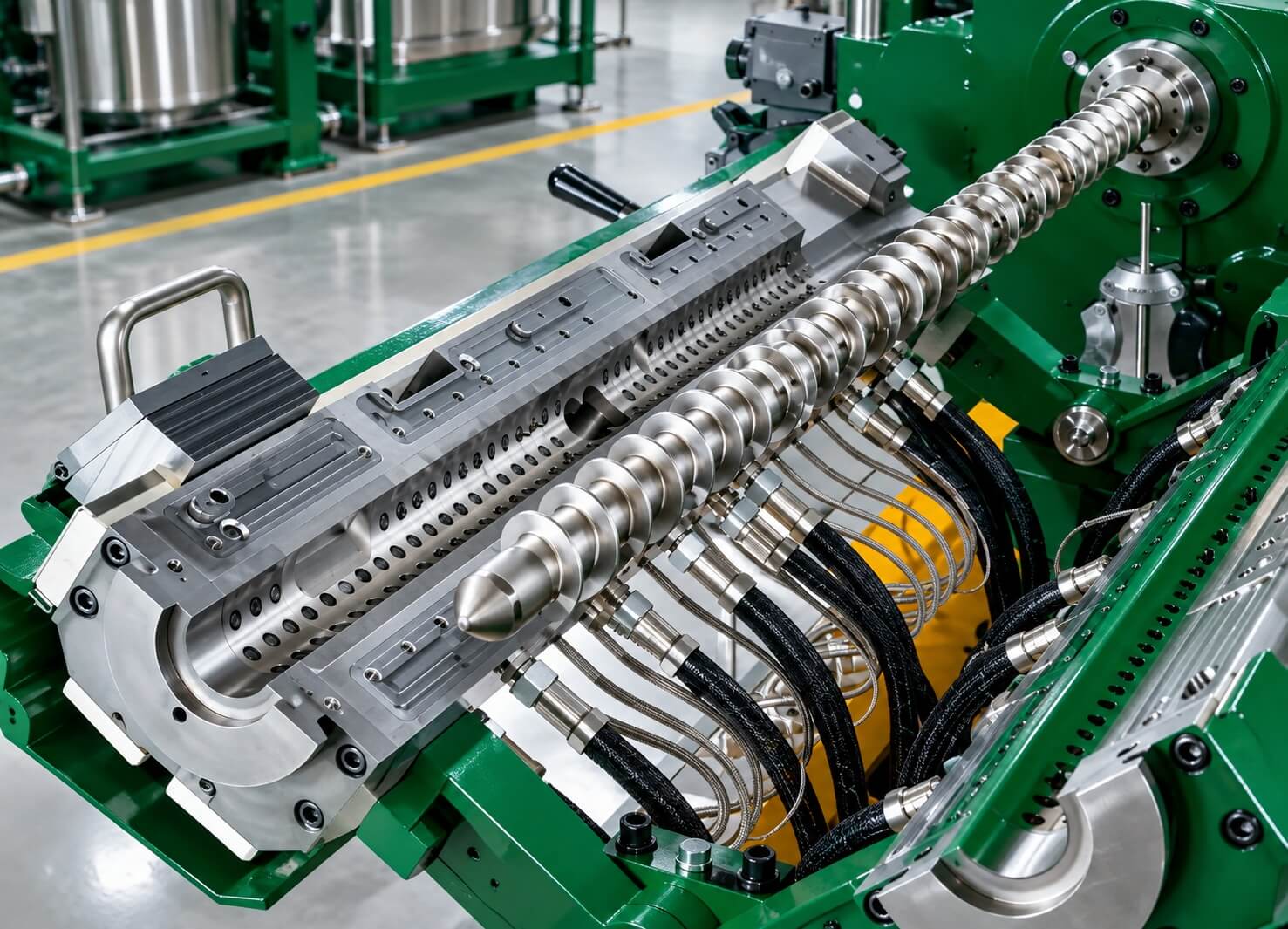

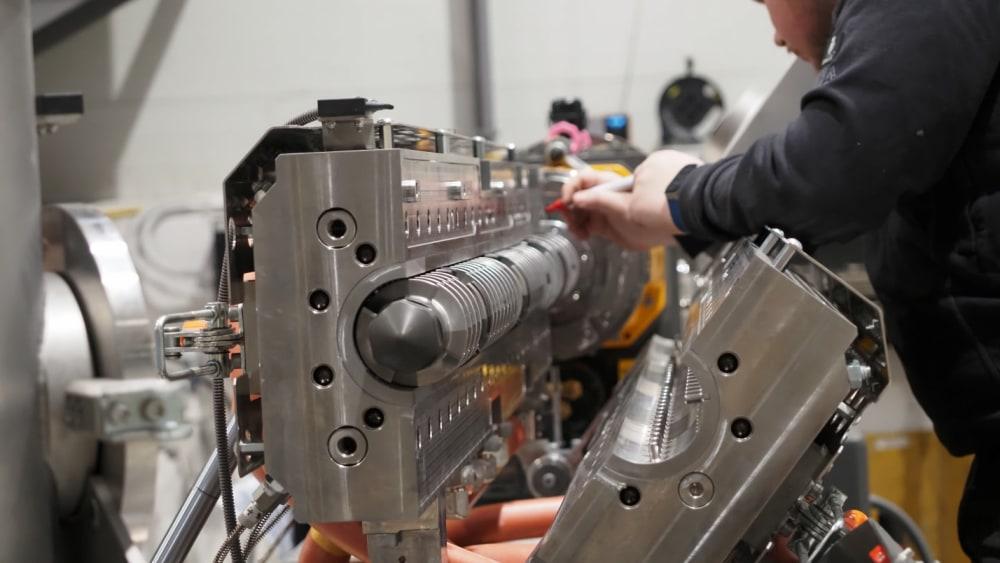

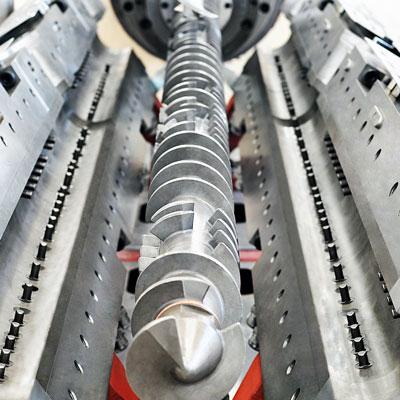

Easy Barrel Opening and Cleaning
Industrial compounding equipment must be easy to maintain.
The ECK-45 is designed with an axially opening barrel, providing convenient access to the internal processing area.
Operators can access the screw and kneading chamber for:
- Inspection
- Cleaning
- Maintenance
- Component replacement
- Product changeover
- Wear inspection
Easy access reduces maintenance time and makes routine servicing more practical.
Modular Screw, Barrel and Pin Maintenance
The ECK-45 is designed with replaceable processing components.
Depending on the machine configuration and application, individual components such as the screw, barrel sections and kneading pins can be serviced or replaced.
This modular approach helps reduce maintenance costs and allows the machine to be maintained according to actual wear conditions.
It also provides greater flexibility when the machine is used for different formulations.
Applications of the ECK-45
The compact ECK-45 is suitable for a broad range of polymer compounding applications.
Color Masterbatch
The ECK-45 is particularly suitable for color masterbatch applications requiring excellent pigment dispersion and consistent color quality.
Its low-shear processing characteristics can help reduce unnecessary thermal stress while maintaining effective pigment distribution.
Polyester Masterbatch
Polyester masterbatch is one of the important application areas for Co-Kneader technology.
The ECK-45 can be used for development, pilot production and specialty polyester masterbatch formulations where viscosity, dispersion and temperature control are important.

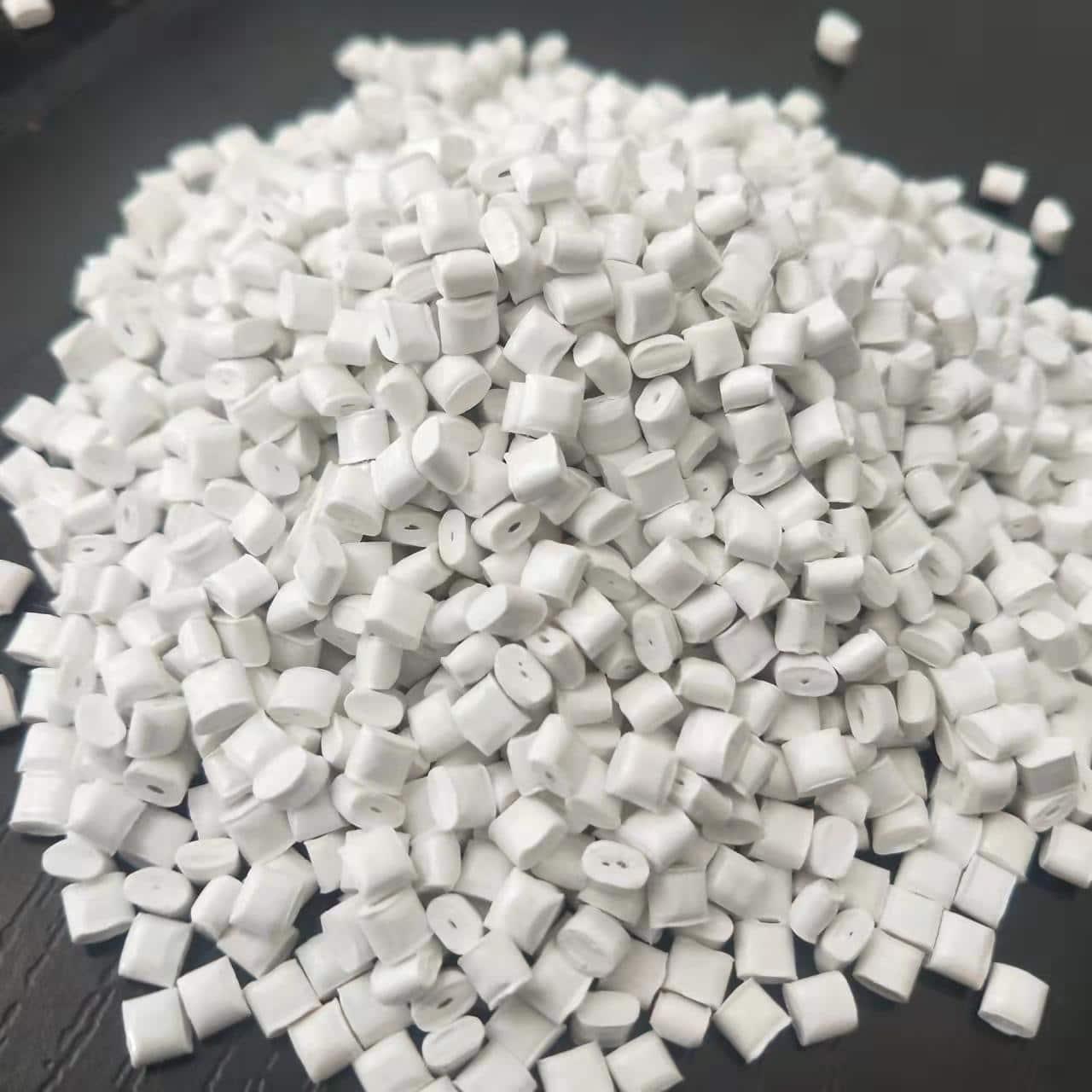

Engineering Plastics
Depending on formulation and processing requirements, the ECK-45 can be applied to engineering polymers such as:
- PA
- PET
- PBT
- PC
- ABS
- ASA
- PPO
- Other specialty polymers
PVC Compounds
The ECK-45 can also be considered for selected PVC formulations where controlled temperature and gentle processing are important.
Flame-Retardant Compounds
Flame-retardant formulations often contain significant amounts of additives and mineral components.
The ECK-45 provides effective incorporation and distribution while maintaining controlled processing conditions.
High-Filler Compounds
The machine is suitable for development and production of high-filler formulations where filler loading and dispersion are important.
Elastomers and Specialty Materials
The ECK-45 can also be configured for selected elastomer, thermoplastic elastomer and specialty polymer applications.
ECK-45 for Masterbatch Development
The compact size of the ECK-45 makes it particularly useful for companies developing new masterbatch and polymer formulations.
Manufacturers can use the machine to:
- Develop new formulations
- Test pigments
- Evaluate additives
- Optimize filler concentrations
- Establish processing parameters
- Produce pilot batches
- Scale formulations for larger production systems
The ECK-45 can therefore serve as an important bridge between laboratory formulation development and full-scale industrial production.
Proven ECK Co-Kneader Technology
EXTRUTEX has supplied Co-Kneader technology for industrial polymer compounding applications, including polyester color masterbatch production.
A major polyester masterbatch manufacturer in China has operated multiple ECK Co-Kneader production lines for the production of color masterbatch used by polyester fiber manufacturers.
The reported advantages include excellent pigment dispersion, stable viscosity and consistent product quality.
This experience provides a practical industrial foundation for the ECK technology and its application in demanding compounding environments.
Main Advantages of EXTRUTEX ECK-45
The ECK-45 combines a compact industrial design with a unique low-shear kneading principle.
Key advantages include:
- 45 mm screw diameter
- 22 kW drive power
- Up to 500 rpm screw speed
- 40–60 kg/h production capacity
- Rotating and reciprocating screw movement
- Low-shear compounding
- Excellent dispersive mixing
- Excellent distributive mixing
- High degree of self-wiping
- Reduced dead spots
- High filler loading capability
- Efficient liquid additive incorporation
- Precise temperature control
- Water cooling for screw and barrel
- Axially opening barrel
- Easy cleaning and maintenance
- Replaceable screw and kneading components
- Flexible application range
- Suitable for heat-sensitive formulations
- Suitable for masterbatch and specialty compounds
EXTRUTEX ECK-45 – Compact Machine, Advanced Compounding Technology
The EXTRUTEX ECK-45 Co-Kneader Extruder combines a compact 45 mm processing system with advanced reciprocating screw technology to provide efficient and controlled polymer compounding.
Its unique interaction between rotating and reciprocating screw flights and stationary kneading pins produces highly effective mixing while maintaining relatively low shear and controlled processing temperatures.
For manufacturers working with color masterbatch, polyester compounds, engineering plastics, PVC formulations, high-filler compounds, flame-retardant materials, elastomers and specialty polymer formulations, the ECK-45 provides a flexible platform for product development and production.
With its 40–60 kg/h output range, 22 kW drive, 500 rpm maximum speed and 6.75 mm reciprocating stroke, the ECK-45 is particularly well suited to customers who need professional compounding performance in a compact machine.
EXTRUTEX can configure the ECK-45 according to the polymer, formulation, filler concentration, additive system, required capacity and downstream pelletizing process.
:::
Applications of EXTRUTEX EXCT Co-Rotating Twin-Screw Extruders
High-Performance Compounding Solutions Powered by EXTRUTEX Technology
The EXTRUTEX EXCT Series Co-Rotating Twin-Screw Extruders, developed with advanced EXTRUTEX modular twin-screw technology, are engineered to deliver maximum productivity, outstanding product quality and superior processing efficiency for modern polymer compounding industries.
Designed for continuous industrial production, these extruders combine modular screw configurations, clamshell barrel construction, independently controlled temperature zones and optimized co-rotating screw technology to provide exceptional flexibility across a wide range of materials and formulations.
Whether producing color masterbatch, engineering plastics, reinforced compounds, wire and cable materials or powder coatings, the EXCT Series provides a reliable platform capable of delivering consistent product quality while reducing production downtime and improving manufacturing efficiency.
The modular design allows each extruder to be configured according to the specific material, filler loading, additive concentration and production objective, making the EXCT Series suitable for both standard and highly customized compounding applications.
Color Masterbatch Production
The EXCT Series is an ideal solution for producing high-quality color masterbatch with excellent pigment dispersion and color consistency.
The intensive mixing capability of the co-rotating twin screws ensures uniform pigment distribution throughout the polymer matrix while maintaining stable processing conditions.
Typical materials include:
Polyethylene (PE)
Polypropylene (PP)
ABS
AS
Polyamide (PA)
EVA
PET with pigments
The modular screw configuration allows mixing intensity and residence time to be optimized for different pigment systems, helping manufacturers achieve consistent color quality and excellent pellet appearance.
Filler Masterbatch Compounding
The EXCT Series is designed to process high-loading filler masterbatch formulations with excellent dispersion and stable production performance.
Polyolefin Filler Compounds
PE + Calcium Carbonate (CaCO₃)
PP + Calcium Carbonate
EVA + Calcium Carbonate
Talc-filled compounds
Titanium dioxide formulations
Engineering Plastic Fillers
ABS + ATH
PC + ATH
PS + ATH
Magnesium Hydroxide (MGH) compounds
Functional Mineral Compounds
PP + Iron Powder
PA + Ceramic Powder
ABS + Metal Powders
The modular processing zones allow conveying, melting, kneading, dispersion and homogenization to be precisely balanced according to filler loading and material characteristics.
Reinforced Plastic Compounds
The EXCT Series provides excellent performance for manufacturing fiber-reinforced engineering plastics.
The screw configuration can be designed to introduce reinforcement while maintaining appropriate fiber length and dispersion.
Typical reinforced materials include:
PP with long and short glass fibers
PBT reinforced compounds
ABS reinforced compounds
AS reinforced compounds
PA reinforced compounds
PC reinforced compounds
POM reinforced compounds
PPS reinforced compounds
PET reinforced compounds
Controlled processing helps improve dispersion and compound uniformity while supporting consistent production quality.
Functional Masterbatch
Modern plastics often require specialized functional additives rather than color alone.
The EXCT Series can be configured for producing a wide variety of functional masterbatch products.
Biodegradable and Starch-Based Compounds
PE with starch
PP with starch
PS with decomposing agents
Flame Retardant Compounds
PP with flame-retardant additives
PA flame-retardant compounds
ABS flame-retardant compounds
PBT flame-retardant formulations
Carbon Black Masterbatch
PE with carbon black
EVA with carbon black
ABS conductive compounds
The flexible screw arrangement allows the dispersion process to be optimized for each additive system.
Wire and Cable Compounds
The EXCT Series is widely suitable for wire and cable compound production, where material consistency and precise processing control are essential.
Applications include:
HFFR (Halogen-Free Flame Retardant)
XLPE compounds
Semi-conductive compounds
Sioplas compounds
Specialty cable materials
The modular barrel and independently controlled temperature zones allow engineers to establish stable processing conditions for demanding cable formulations.
Powder Coating Production
The EXCT Series is also an effective platform for manufacturing powder coating materials.
Its controlled melting and intensive mixing capabilities help produce homogeneous coating compounds with consistent quality.
Typical formulations include:
Hybrid powder coatings
Polyester coatings
Polyurethane coatings
Epoxy coatings
Specialty powder coating formulations
The modular processing concept allows different formulations to be produced on the same machine with appropriate screw and barrel configurations.
Engineering Plastic Compounding
The EXCT Series is suitable for a broad range of engineering thermoplastics that require precise temperature control and efficient mixing.
Typical engineering polymers include:
PA
PC
ABS
PBT
PET
POM
PPS
The modular screw system allows engineers to optimize residence time, mixing intensity and temperature profiles for each material.
Direct Extrusion Applications
Beyond pellet production, the EXCT Series can also be configured for direct extrusion applications.
Depending on the downstream equipment, the homogeneous melt can be supplied directly to extrusion dies for producing various semi-finished products.
The stable melt quality provided by the co-rotating twin-screw system helps support consistent downstream processing performance.
Why Choose EXTRUTEX EXCT Series?
The EXTRUTEX EXCT Series combines EXTRUTEX’s advanced modular twin-screw technology with decades of engineering expertise to deliver reliable, high-performance compounding solutions for modern polymer manufacturing.
Key Advantages
High productivity across a wide range of materials
Excellent mixing and dispersion performance
Modular screw and barrel configurations
Clamshell barrel for fast maintenance and cleaning
Independently controlled temperature zones
Stable continuous production
Flexible processing for multiple formulations
Suitable for laboratory, pilot and industrial production
Excellent compatibility with downstream pelletizing and extrusion equipment
From color masterbatch and filler compounds to engineering plastics, wire and cable compounds, powder coatings and direct extrusion, the EXTRUTEX EXCT Series provides a versatile processing platform capable of meeting the demanding requirements of today’s plastics industry while maximizing production efficiency, operational reliability and final product quality.
EXTRUTEX EXCT-90 Co-Rotating Twin-Screw Extruder
90 mm Modular Co-Rotating Twin-Screw Extruder with Clamshell Barrel
The EXTRUTEX EXCT-90 is a high-capacity co-rotating twin-screw extruder engineered for demanding industrial polymer compounding, masterbatch production, engineering plastics, recycling, mineral-filled compounds and advanced thermoplastic processing. Designed around EXTRUTEX’s modular processing philosophy, the EXCT-90 combines exceptional throughput with outstanding process flexibility, allowing manufacturers to configure the machine for a wide variety of materials, formulations and production requirements.
Featuring a 90 mm screw diameter, 32–48 L/D configurations, 300–500 rpm screw speed, 180 or 220 kW drive options, and an output capacity of approximately 700–1,000 kg/hour, the EXCT-90 is designed for continuous large-scale manufacturing while maintaining the adaptability required for specialty compounds and changing production demands.
One of the defining features of the EXCT-90 is its clamshell barrel design, allowing operators to open the barrel quickly for cleaning, maintenance, inspection and screw configuration changes. Combined with independently controlled barrel temperature zones and a modular screw system, the EXCT-90 provides an efficient production platform that minimizes downtime while maintaining consistent product quality.
EXCT-90 Technical Specifications
| Specification | EXCT-90 |
|---|---|
| Model | EXCT-90 |
| Screw Diameter | 90 mm |
| L/D Ratio | 32–48 |
| Screw Speed | 300–500 rpm |
| Main Motor Power | 180 / 220 kW |
| Production Capacity | 700–1,000 kg/hour |
| Screw Type | Co-Rotating Twin Screw |
| Barrel Design | Modular Clamshell |
| Processing Mode | Continuous |
| Applications | Compounding, Masterbatch, Recycling, Engineering Plastics, Filled Compounds |
Actual production capacity depends on polymer type, formulation, screw configuration, feeding system, temperature profile, residence time and downstream equipment.
High-Performance 90 mm Processing Platform
The 90 mm screw diameter provides a significant processing volume for manufacturers requiring industrial-scale production while preserving the versatility of EXTRUTEX’s modular twin-screw technology.
The co-rotating twin-screw system performs multiple processing functions simultaneously, including:
Material conveying
Controlled melting
Plasticization
Intensive mixing
Kneading
Dispersion
Homogenization
Degassing
Pressure building
Melt preparation
Unlike fixed-configuration extrusion systems, the EXCT-90 allows screw elements and barrel sections to be configured according to the material being processed. This flexibility enables manufacturers to optimize processing for different polymers, fillers, additives and specialty compounds without changing the entire machine platform.
Production Capacity of 700–1,000 kg/hour
The EXCT-90 is designed for an approximate production range of 700–1,000 kg/hour, making it suitable for high-volume industrial manufacturing.
This production capability makes the machine an excellent solution for continuous production of:
Polymer compounds
Masterbatch
Filled compounds
Engineering plastics
Recycled polymers
Specialty thermoplastic materials
Actual production depends on several process variables, including:
Polymer type
Melt viscosity
Bulk density
Filler concentration
Additive loading
Screw configuration
Screw speed
Feeding accuracy
Barrel temperature profile
Degassing requirements
Downstream pressure
The wide operating window allows manufacturers to balance maximum productivity with material quality and process stability.
300–500 RPM Screw Speed
The EXCT-90 operates within a screw-speed range of approximately 300–500 rpm, providing flexibility for different processing conditions.
Higher operating speeds can increase mechanical energy input for demanding dispersion applications, while lower speeds may be selected when longer residence time or gentler processing conditions are required.
By combining adjustable screw speed with modular screw geometry, engineers can optimize:
Throughput
Mixing intensity
Melt temperature
Residence time
Dispersion quality
Pressure stability
Product consistency
32–48 L/D Configurations
The EXCT-90 is available with 32–48 L/D configurations, allowing manufacturers to select the appropriate processing length for their application.
Shorter configurations are suitable for simpler compounding operations, while longer configurations provide additional space for multiple processing stages.
A typical long processing configuration may include:
Metering → Feeding → Conveying → Melting → Kneading → Dispersion → Homogenization → Degassing → Pressure Building → Filtration → Pelletizing
The modular barrel architecture allows these processing stages to be customized according to the formulation.
Clamshell Barrel Design
One of the most practical advantages of the EXCT-90 is its clamshell barrel system.
The hinged barrel can be opened within minutes, providing direct access to the screws and internal processing chamber.
This design simplifies:
Product changeovers
Cleaning
Maintenance
Screw inspection
Screw-element replacement
Removal of residual material
Troubleshooting
Process optimization
Research and development
For manufacturers processing multiple formulations, rapid access to the processing chamber reduces downtime and increases production efficiency.
Modular Barrel Construction
The EXCT-90 uses a fully modular barrel design that allows individual barrel sections to be arranged according to the required processing sequence.
Different barrel sections can perform dedicated functions, including:
Feeding
Conveying
Melting
Intensive mixing
Kneading
Side feeding
Additive incorporation
Vacuum degassing
Homogenization
Pressure building
Discharge
This modular approach allows engineers to design the processing line around the material rather than relying on one universal barrel configuration.
Independent Temperature Control
Each barrel section of the EXCT-90 can be controlled independently, allowing precise temperature management throughout the extrusion process.
Different stages of compounding require different thermal conditions.
For example:
Feeding zones require controlled temperatures to prevent bridging.
Melting zones provide the energy needed for plasticization.
Mixing zones maintain appropriate melt viscosity.
Degassing zones optimize volatile removal.
Downstream sections stabilize the melt before discharge.
The combination of electric heating and controlled cooling allows engineers to maintain a stable thermal profile, improving:
Melt quality
Product consistency
Processing stability
Mixing efficiency
Thermal history control
Modular Screw and Kneading System
The EXCT-90 features interchangeable conveying, mixing and kneading elements that allow engineers to create dedicated processing zones for different formulations.
Conveying Elements
Transport raw materials efficiently while maintaining stable material flow.
Melting Elements
Provide controlled polymer plasticization.
Kneading Blocks
Increase mechanical energy for intensive filler dispersion.
Mixing Elements
Deliver both distributive and dispersive mixing.
Homogenizing Elements
Improve melt uniformity before discharge.
Degassing Sections
Support removal of moisture and volatile components.
Pressure-Building Elements
Generate stable pressure for downstream processing.
This modular screw architecture allows the EXCT-90 to be optimized for a wide range of production requirements.
Complete Compounding Process
The EXCT-90 can perform every major stage of modern polymer compounding.
1. Metering and Feeding
Accurate feeding establishes formulation consistency.
The machine can process:
Polymer pellets
Powders
Mineral fillers
Pigments
Additives
Glass fibers
Wood fibers
Recycled materials
Multiple feeding points can be incorporated where necessary.
2. Conveying
The initial screw sections transport materials through the barrel while maintaining stable processing conditions.
3. Melting
Controlled thermal and mechanical energy convert solid polymers into a homogeneous melt.
4. Mixing and Dispersion
The twin-screw configuration provides excellent mixing performance for:
Masterbatch
Polymer blends
Filled compounds
Reinforced plastics
Additive concentrates
5. Degassing
Vacuum degassing can remove:
Moisture
Air
Residual monomers
Solvents
Volatile compounds
This is especially valuable for recycled materials.
6. Homogenization
Downstream screw elements stabilize the melt before filtration or discharge.
7. Melt Filtration
Optional filtration systems remove contaminants before pelletizing.
8. Pelletizing
The EXCT-90 can integrate with:
Strand pelletizers
Water-ring pelletizers
Underwater pelletizers
Sheet dies
Profile dies
Custom downstream equipment
Engineering Plastics Processing
The EXCT-90 is suitable for demanding engineering thermoplastics requiring precise temperature control and intensive mixing.
Applications include:
PA compounds
PC compounds
ABS compounds
PET compounds
PBT compounds
Modified engineering plastics
The modular screw configuration allows each material to receive an optimized processing profile.
Masterbatch Production
The EXCT-90 provides an excellent platform for producing:
Color masterbatch
Black masterbatch
White masterbatch
Additive masterbatch
Filler masterbatch
Its intensive mixing capability helps achieve uniform pigment and additive dispersion while maintaining consistent pellet quality at high production rates.
Filled Polymer Compounds
The machine is particularly well suited for formulations containing:
Calcium carbonate
Talc
Barium sulfate
Glass fiber
Mineral fillers
Wood fiber
Specialty fillers
The modular screw arrangement allows mixing intensity to be adjusted according to filler loading and dispersion requirements.
Recycling and Re-Compounding
The EXCT-90 is also designed for modern recycling operations.
Recycled polymers often require additional processing stages to remove moisture and contaminants while restoring material consistency.
A typical recycling configuration may include:
Feeding
Melting
Mixing
Vacuum degassing
Filtration
Homogenization
Pelletizing
The modular barrel allows these stages to be arranged according to the characteristics of the recycled material.
Industrial Production Efficiency
With capacities reaching 1 metric ton per hour, the EXCT-90 is designed for demanding industrial production environments where productivity and reliability are essential.
The combination of modular processing technology and quick-access maintenance features helps reduce production interruptions while maintaining consistent product quality across long production runs.
Manufacturers can evaluate and optimize:
Screw configurations
Barrel arrangements
Temperature profiles
Screw speed
Feeding positions
Mixing intensity
Degassing performance
Throughput optimization
Wear-Resistant Construction
The internal components of the EXCT-90 are available with material options suitable for demanding industrial environments.
Standard configurations utilize nitrided steel components, while more demanding applications can incorporate enhanced wear-resistant and corrosion-resistant materials.
This is particularly important when processing:
Glass fiber compounds
Calcium carbonate compounds
Mineral-filled polymers
Recycled materials
High-filler formulations
Proper material selection helps extend component service life while maintaining consistent processing performance.
Main Advantages of EXCT-90
High-Capacity 90 mm Platform
Designed for industrial compounding with outputs up to 1,000 kg/hour.
Modular Screw System
Flexible screw configurations for different formulations.
Clamshell Barrel
Fast access for cleaning, maintenance and screw changes.
Independent Temperature Zones
Precise thermal control throughout the extrusion process.
32–48 L/D Options
Configurable processing length for different applications.
300–500 RPM Operation
Flexible control of throughput and mixing intensity.
Wear-Resistant Components
Suitable for abrasive fillers and demanding formulations.
Industrial-Scale Production
Supports masterbatch, engineering plastics, filled compounds, recycling and specialty polymers.
Applications
The EXTRUTEX EXCT-90 is suitable for:
Polymer Compounding
Color Masterbatch
Black Masterbatch
White Masterbatch
Additive Masterbatch
Filler Masterbatch
Calcium Carbonate Compounds
Talc Compounds
Glass Fiber Compounds
Engineering Plastics
Polymer Blending
Recycled Polymer Compounds
Recycling and Re-Compounding
Specialty Thermoplastics
Industrial Continuous Production
EXTRUTEX EXCT-90
The EXTRUTEX EXCT-90 represents the next level of high-capacity modular twin-screw compounding technology, delivering industrial-scale performance while maintaining the flexibility required for modern polymer processing.
With a 90 mm screw diameter, 300–500 rpm operating range, 32–48 L/D configurations, 180 or 220 kW drive options, and a production capacity of approximately 700–1,000 kg/hour, the EXCT-90 is engineered for demanding continuous production environments.
Its configurable screw architecture allows manufacturers to optimize the extrusion process for different formulations, while the clamshell barrel dramatically improves cleaning, maintenance and product changeover.
From masterbatch production and engineering plastics to filled compounds, recycling and specialty materials, the EXCT-90 provides a reliable, efficient and highly adaptable platform for large-scale polymer compounding.
EXTRUTEX EXCT-90 — Industrial-Scale Modular Twin-Screw Technology for High-Performance Polymer Compounding.
TECH DATA:
EXTRUTEX ATP 114-32S – Precision Power for Rigid PVC Sheet Extrusion
Introduction
When production needs exceed the ordinary, the EXTRUTEX ATP 114-32S steps in — a masterclass in single-screw extrusion engineering.
Built with Austrian precision and forged for endurance, this machine transforms PVC and UPVC granules into flawless, smooth, dimensionally stable sheets at a rate few can match.
The ATP 114-32S represents the next generation of sheet extrusion — optimized for wide sheets, thick sections, and continuous high-capacity output.
It’s designed for manufacturers who demand more than performance — they demand perfection.
Technical Details
The EXTRUTEX ATP 114-32S integrates a special geometric screw design that optimizes material melting, mixing, and degassing.
This unique geometry ensures exceptional melt homogeneity, superior plasticization, and reduced thermal stress, even at high throughputs.
A bimetallic barrel paired with molybdenum-coated screws delivers outstanding wear resistance and a long operational life, while the 32 L/D ratio ensures excellent output consistency for rigid and semi-rigid PVC sheets.
Its AC vector drive motor and high-torque gearbox provide smooth, vibration-free power delivery, allowing precise control of melt pressure and sheet uniformity.
The multi-zone temperature control system, governed by a PLC-based control panel, maintains the thermal balance critical for quality surface finish and dimensional accuracy.
The ATP 114-32S is engineered for large-scale PVC sheet production — foamed or rigid — and can be configured with automatic feeders, melt pressure sensors, and integrated flat die systems for complete process control from hopper to haul-off.
⚙️ Technical Data Table
| Parameter | Specification |
|---|---|
| Model | EXTRUTEX ATP 114-32S |
| Application | UPVC / PVC Rigid Sheet Extrusion |
| Screw Diameter | 114 mm |
| L/D Ratio | 32:1 |
| Output Range | 270 – 450 kg/h |
| Installed Power | 107 kW |
| Drive Type | AC Vector Drive Motor |
| Screw Design | Special Geometric Design for PVC Melting and Mixing |
| Barrel Material | Nitrided / Bimetallic with Molybdenum Coating |
| Gearbox Type | High Torque, Low Noise Design |
| Heating Zones | Multi-Zone (6 to 8 Zones Adjustable) |
| Cooling System | Air / Water Integrated Cooling System |
| Control System | PLC with Touch Screen Operation |
| Degassing System | Optional Single / Double Vented Design |
| Feeding System | Automatic Volumetric / Gravimetric Feeder |
| Melt Temperature Range | 170 – 195 °C (adjustable) |
| Applications | PVC Foam Board, Rigid PVC Sheet, Advertising Panels, UPVC Flat Panels |
| Output Stability | ±1.5% Consistency |
| Country of Origin | Austria (Designed by EXTRUTEX) |
Performance Summary
The ATP 114-32S excels where productivity meets precision.
Its robust torque, thermal uniformity, and melt stability guarantee consistent sheet thickness and perfect surface clarity — even under continuous, 24-hour production cycles.
With 107 kW of engineered efficiency, it delivers the ideal balance between power consumption and throughput, resulting in reduced operating costs and maximized profitability.
Every component — from gearbox to barrel — is built to EXTRUTEX’s uncompromising European standards, making this extruder not just a machine, but a long-term production partner.
APPLICATIONS:
Applications of EXTRUTEX EXCT Co-Rotating Twin-Screw Extruders
High-Performance Compounding Solutions Powered by EXTRUTEX Technology
The EXTRUTEX EXCT Series Co-Rotating Twin-Screw Extruders, developed with advanced EXTRUTEX modular twin-screw technology, are engineered to deliver maximum productivity, outstanding product quality and superior processing efficiency for modern polymer compounding industries.
Designed for continuous industrial production, these extruders combine modular screw configurations, clamshell barrel construction, independently controlled temperature zones and optimized co-rotating screw technology to provide exceptional flexibility across a wide range of materials and formulations.
Whether producing color masterbatch, engineering plastics, reinforced compounds, wire and cable materials or powder coatings, the EXCT Series provides a reliable platform capable of delivering consistent product quality while reducing production downtime and improving manufacturing efficiency.
The modular design allows each extruder to be configured according to the specific material, filler loading, additive concentration and production objective, making the EXCT Series suitable for both standard and highly customized compounding applications.
Color Masterbatch Production
The EXCT Series is an ideal solution for producing high-quality color masterbatch with excellent pigment dispersion and color consistency.
The intensive mixing capability of the co-rotating twin screws ensures uniform pigment distribution throughout the polymer matrix while maintaining stable processing conditions.
Typical materials include:
Polyethylene (PE)
Polypropylene (PP)
ABS
AS
Polyamide (PA)
EVA
PET with pigments
The modular screw configuration allows mixing intensity and residence time to be optimized for different pigment systems, helping manufacturers achieve consistent color quality and excellent pellet appearance.
Filler Masterbatch Compounding
The EXCT Series is designed to process high-loading filler masterbatch formulations with excellent dispersion and stable production performance.
Polyolefin Filler Compounds
PE + Calcium Carbonate (CaCO₃)
PP + Calcium Carbonate
EVA + Calcium Carbonate
Talc-filled compounds
Titanium dioxide formulations
Engineering Plastic Fillers
ABS + ATH
PC + ATH
PS + ATH
Magnesium Hydroxide (MGH) compounds
Functional Mineral Compounds
PP + Iron Powder
PA + Ceramic Powder
ABS + Metal Powders
The modular processing zones allow conveying, melting, kneading, dispersion and homogenization to be precisely balanced according to filler loading and material characteristics.
Reinforced Plastic Compounds
The EXCT Series provides excellent performance for manufacturing fiber-reinforced engineering plastics.
The screw configuration can be designed to introduce reinforcement while maintaining appropriate fiber length and dispersion.
Typical reinforced materials include:
PP with long and short glass fibers
PBT reinforced compounds
ABS reinforced compounds
AS reinforced compounds
PA reinforced compounds
PC reinforced compounds
POM reinforced compounds
PPS reinforced compounds
PET reinforced compounds
Controlled processing helps improve dispersion and compound uniformity while supporting consistent production quality.
Functional Masterbatch
Modern plastics often require specialized functional additives rather than color alone.
The EXCT Series can be configured for producing a wide variety of functional masterbatch products.
Biodegradable and Starch-Based Compounds
PE with starch
PP with starch
PS with decomposing agents
Flame Retardant Compounds
PP with flame-retardant additives
PA flame-retardant compounds
ABS flame-retardant compounds
PBT flame-retardant formulations
Carbon Black Masterbatch
PE with carbon black
EVA with carbon black
ABS conductive compounds
The flexible screw arrangement allows the dispersion process to be optimized for each additive system.
Wire and Cable Compounds
The EXCT Series is widely suitable for wire and cable compound production, where material consistency and precise processing control are essential.
Applications include:
HFFR (Halogen-Free Flame Retardant)
XLPE compounds
Semi-conductive compounds
Sioplas compounds
Specialty cable materials
The modular barrel and independently controlled temperature zones allow engineers to establish stable processing conditions for demanding cable formulations.
Powder Coating Production
The EXCT Series is also an effective platform for manufacturing powder coating materials.
Its controlled melting and intensive mixing capabilities help produce homogeneous coating compounds with consistent quality.
Typical formulations include:
Hybrid powder coatings
Polyester coatings
Polyurethane coatings
Epoxy coatings
Specialty powder coating formulations
The modular processing concept allows different formulations to be produced on the same machine with appropriate screw and barrel configurations.
Engineering Plastic Compounding
The EXCT Series is suitable for a broad range of engineering thermoplastics that require precise temperature control and efficient mixing.
Typical engineering polymers include:
PA
PC
ABS
PBT
PET
POM
PPS
The modular screw system allows engineers to optimize residence time, mixing intensity and temperature profiles for each material.
Direct Extrusion Applications
Beyond pellet production, the EXCT Series can also be configured for direct extrusion applications.
Depending on the downstream equipment, the homogeneous melt can be supplied directly to extrusion dies for producing various semi-finished products.
The stable melt quality provided by the co-rotating twin-screw system helps support consistent downstream processing performance.
Why Choose EXTRUTEX EXCT Series?
The EXTRUTEX EXCT Series combines EXTRUTEX’s advanced modular twin-screw technology with decades of engineering expertise to deliver reliable, high-performance compounding solutions for modern polymer manufacturing.
Key Advantages
High productivity across a wide range of materials
Excellent mixing and dispersion performance
Modular screw and barrel configurations
Clamshell barrel for fast maintenance and cleaning
Independently controlled temperature zones
Stable continuous production
Flexible processing for multiple formulations
Suitable for laboratory, pilot and industrial production
Excellent compatibility with downstream pelletizing and extrusion equipment
From color masterbatch and filler compounds to engineering plastics, wire and cable compounds, powder coatings and direct extrusion, the EXTRUTEX EXCT Series provides a versatile processing platform capable of meeting the demanding requirements of today’s plastics industry while maximizing production efficiency, operational reliability and final product quality.
Reviews (0)
Reviews
There are no reviews yet.
EXTRUTEX ECK-45 Co-Kneader Extruder
EXTRUTEX ECK-45 Co-Kneader Extruder – Professional Low-Shear Compounding System
The EXTRUTEX ECK-45 Co-Kneader Extruder is a professional continuous compounding system designed for demanding polymer processing applications where excellent mixing, low shear, controlled temperature and high product consistency are essential.
With a 45 mm screw diameter, 22 kW drive power, maximum screw speed of 500 rpm and an output capacity of approximately 40–60 kg/h, the ECK-45 provides a compact and highly efficient solution for pilot production, specialty compounds, masterbatch production, research and development, and smaller industrial production requirements.
Unlike conventional single-screw or co-rotating twin-screw extruders, the ECK-45 combines continuous screw rotation with reciprocating axial movement. This unique mechanism allows the polymer and additives to be kneaded and redistributed efficiently while minimizing unnecessary shear and excessive melt temperature.
The result is a highly homogeneous compound with excellent dispersion and controlled thermal history.
ECK-45 Technical Specifications
| Parameter | ECK-45 |
|---|---|
| Model | ECK-45 |
| Screw Diameter | 45 mm |
| L/D Ratio | 10–25 |
| Reciprocating Stroke | 6.75 mm |
| Drive Power | 22 kW |
| Maximum Screw Speed | 500 rpm |
| Output Capacity | 40–60 kg/h |
The ECK-45 can be configured according to the material formulation, additives, filler loading, required output and downstream process.
A Different Approach to Polymer Compounding
The ECK-45 is based on a different compounding philosophy from traditional extrusion technology.
A conventional extruder primarily transports material forward through a rotating screw. The ECK Co-Kneader introduces another dimension to the process: the screw also moves backwards and forwards along its axis.
Special kneading flights on the screw interact with stationary kneading pins installed inside the barrel. During operation, the moving screw flights repeatedly pass the fixed pins, creating a controlled combination of longitudinal and transverse material movement.
The material is continuously:
- Divided
- Folded
- Stretched
- Redistributed
- Recombined
- Homogenized
This creates highly efficient mixing without requiring extremely aggressive mechanical shear.
Rotating and Reciprocating Screw Technology
The heart of the ECK-45 is its specially engineered reciprocating screw.
During operation, the screw performs two simultaneous movements:
Rotational movement provides continuous material transport and kneading.
Reciprocating movement changes the position of the kneading flights relative to the stationary pins and creates additional transverse movement of the polymer.
This combination significantly improves the mixing action inside the processing chamber.
Instead of allowing material to travel through a simple forward-flow path, the ECK-45 continuously renews the material around the kneading elements.
This helps produce a highly uniform compound while maintaining controlled processing conditions.
Three Rows of Stationary Kneading Pins
One of the most important features of the ECK technology is the interaction between the moving screw flights and stationary kneading pins.
The kneading pins are mounted into the barrel and extend into the processing chamber. As the screw rotates and reciprocates, its kneading flights repeatedly interact with these fixed pins.
This creates a series of controlled mixing zones throughout the machine.
The interaction provides:
- Excellent distributive mixing
- Effective dispersive mixing
- Uniform filler distribution
- Improved pigment dispersion
- Efficient additive incorporation
- Reduced stagnant areas
- Consistent compound quality
The unique movement also helps maintain continuous material circulation inside the kneading chamber.
Extremely Low-Shear Processing
One of the main advantages of the ECK-45 Co-Kneader is its ability to provide efficient mixing while maintaining relatively low shear.
This is particularly important for materials that can be damaged by excessive mechanical energy or high processing temperatures.
Heat-sensitive polymers, pigments, additives and specialty fillers may lose their desired properties when exposed to excessive thermal and mechanical stress.
The ECK-45 is designed to process materials as they gradually soften and become homogenized rather than subjecting them to unnecessarily severe processing conditions.
Potential benefits include:
- Lower melt temperature
- Reduced thermal degradation
- Better viscosity retention
- Improved color stability
- Reduced additive degradation
- Improved final product consistency
For specialty compounds where material quality is more important than simply maximizing mechanical shear, this processing principle can provide a significant advantage.
Highly Homogeneous Mixing
The ECK-45 provides both dispersive and distributive mixing.
Dispersive mixing helps break down and distribute agglomerated additives, pigments and filler particles.
Distributive mixing ensures that these components are distributed uniformly throughout the polymer matrix.
The combination is particularly important in masterbatch and specialty compound production, where even small variations in pigment or additive distribution can affect the final product.
The ECK-45 can therefore be used to produce compounds with:
- Uniform color
- Consistent filler distribution
- Stable viscosity
- Consistent additive concentration
- Excellent material homogeneity
- Repeatable production quality
High Degree of Self-Wiping
Another important characteristic of the ECK-45 is its high degree of self-wiping.
The continuous movement of the screw and its interaction with the stationary kneading elements helps minimize material accumulation inside the processing chamber.
This reduces the possibility of stagnant areas and unwanted material buildup.
The result is:
- Cleaner processing
- Reduced contamination
- Easier product changeover
- Reduced material residence in dead zones
- Improved operational stability
- Easier maintenance
This feature is particularly valuable for manufacturers producing different formulations or colors on the same machine.
High Filler Loading Capability
The ECK-45 is also suitable for formulations containing high concentrations of fillers and additives.
Depending on the polymer and formulation, applications can include:
- Calcium carbonate
- Talc
- Barium sulfate
- Silica
- Mica
- Aluminum hydroxide
- Magnesium hydroxide
- Carbon black
- Wood flour
- Other mineral fillers
The controlled kneading action helps distribute high concentrations of filler throughout the polymer matrix while avoiding unnecessarily aggressive mechanical treatment.
This makes the ECK-45 suitable for specialty filler compounds where high loading and good dispersion must be achieved simultaneously.
Efficient Processing of Liquid Components
The ECK-45 can also be configured for formulations requiring liquid additives.
Liquid components may include:
- Plasticizers
- Processing oils
- Waxes
- Coupling agents
- Processing aids
- Liquid stabilizers
- Specialty additives
The continuous folding and redistribution of material inside the kneading chamber helps incorporate liquid components into the polymer matrix efficiently.
This makes the ECK-45 a flexible platform for formulations containing both solid and liquid ingredients.
Precise Temperature Control
Temperature control is one of the most important factors in polymer compounding.
The ECK-45 uses a water cooling system for the barrel and screw to help maintain controlled processing temperatures.
Because the Co-Kneader operates with relatively low shear, less unnecessary heat is generated compared with highly aggressive mixing processes.
The cooling system allows the processing temperature to be controlled accurately according to the characteristics of the polymer and formulation.
This can help provide:
- Stable processing temperature
- Lower melt temperature
- Reduced thermal degradation
- Better viscosity stability
- Improved color consistency
- Better additive performance
- More repeatable production
The principle is simple: mix efficiently while avoiding unnecessary heat.
Stable Pressure and Continuous Processing
The ECK-45 can be equipped with an appropriate end section and breechblock arrangement to maintain stable pressure during material discharge.
Stable pressure is important for consistent extrusion and reliable downstream processing.
Depending on the application, the ECK-45 can be integrated with suitable:
- Melt filtration
- Strand dies
- Pelletizing systems
- Water cooling
- Strand cooling
- Cutting systems
- Automatic conveying
- Packaging systems
This allows EXTRUTEX to provide the ECK-45 as part of a complete compounding solution rather than simply as an individual extruder.

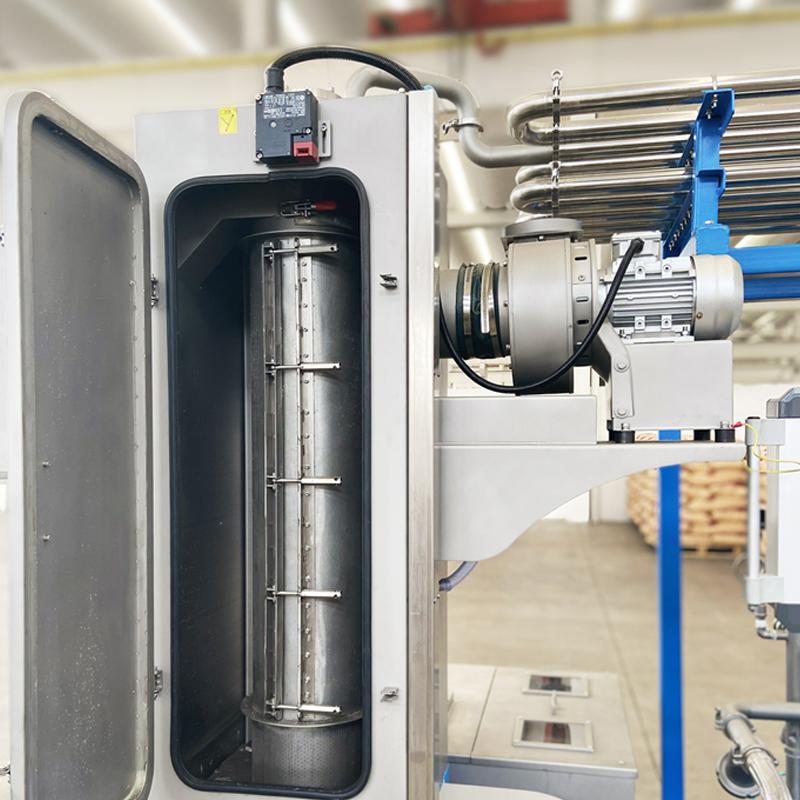

Easy Barrel Opening and Cleaning
Industrial compounding equipment must be easy to maintain.
The ECK-45 is designed with an axially opening barrel, providing convenient access to the internal processing area.
Operators can access the screw and kneading chamber for:
- Inspection
- Cleaning
- Maintenance
- Component replacement
- Product changeover
- Wear inspection
Easy access reduces maintenance time and makes routine servicing more practical.
Modular Screw, Barrel and Pin Maintenance
The ECK-45 is designed with replaceable processing components.
Depending on the machine configuration and application, individual components such as the screw, barrel sections and kneading pins can be serviced or replaced.
This modular approach helps reduce maintenance costs and allows the machine to be maintained according to actual wear conditions.
It also provides greater flexibility when the machine is used for different formulations.
Applications of the ECK-45
The compact ECK-45 is suitable for a broad range of polymer compounding applications.
Color Masterbatch
The ECK-45 is particularly suitable for color masterbatch applications requiring excellent pigment dispersion and consistent color quality.
Its low-shear processing characteristics can help reduce unnecessary thermal stress while maintaining effective pigment distribution.
Polyester Masterbatch
Polyester masterbatch is one of the important application areas for Co-Kneader technology.
The ECK-45 can be used for development, pilot production and specialty polyester masterbatch formulations where viscosity, dispersion and temperature control are important.
Engineering Plastics
Depending on formulation and processing requirements, the ECK-45 can be applied to engineering polymers such as:
- PA
- PET
- PBT
- PC
- ABS
- ASA
- PPO
- Other specialty polymers
PVC Compounds
The ECK-45 can also be considered for selected PVC formulations where controlled temperature and gentle processing are important.
Flame-Retardant Compounds
Flame-retardant formulations often contain significant amounts of additives and mineral components.
The ECK-45 provides effective incorporation and distribution while maintaining controlled processing conditions.
High-Filler Compounds
The machine is suitable for development and production of high-filler formulations where filler loading and dispersion are important.
Elastomers and Specialty Materials
The ECK-45 can also be configured for selected elastomer, thermoplastic elastomer and specialty polymer applications.
ECK-45 for Masterbatch Development
The compact size of the ECK-45 makes it particularly useful for companies developing new masterbatch and polymer formulations.
Manufacturers can use the machine to:
- Develop new formulations
- Test pigments
- Evaluate additives
- Optimize filler concentrations
- Establish processing parameters
- Produce pilot batches
- Scale formulations for larger production systems
The ECK-45 can therefore serve as an important bridge between laboratory formulation development and full-scale industrial production.
Proven ECK Co-Kneader Technology
EXTRUTEX has supplied Co-Kneader technology for industrial polymer compounding applications, including polyester color masterbatch production.
A major polyester masterbatch manufacturer in China has operated multiple ECK Co-Kneader production lines for the production of color masterbatch used by polyester fiber manufacturers.
The reported advantages include excellent pigment dispersion, stable viscosity and consistent product quality.
This experience provides a practical industrial foundation for the ECK technology and its application in demanding compounding environments.
Main Advantages of EXTRUTEX ECK-45
The ECK-45 combines a compact industrial design with a unique low-shear kneading principle.
Key advantages include:
- 45 mm screw diameter
- 22 kW drive power
- Up to 500 rpm screw speed
- 40–60 kg/h production capacity
- Rotating and reciprocating screw movement
- Low-shear compounding
- Excellent dispersive mixing
- Excellent distributive mixing
- High degree of self-wiping
- Reduced dead spots
- High filler loading capability
- Efficient liquid additive incorporation
- Precise temperature control
- Water cooling for screw and barrel
- Axially opening barrel
- Easy cleaning and maintenance
- Replaceable screw and kneading components
- Flexible application range
- Suitable for heat-sensitive formulations
- Suitable for masterbatch and specialty compounds
EXTRUTEX ECK-45 – Compact Machine, Advanced Compounding Technology
The EXTRUTEX ECK-45 Co-Kneader Extruder combines a compact 45 mm processing system with advanced reciprocating screw technology to provide efficient and controlled polymer compounding.
Its unique interaction between rotating and reciprocating screw flights and stationary kneading pins produces highly effective mixing while maintaining relatively low shear and controlled processing temperatures.
For manufacturers working with color masterbatch, polyester compounds, engineering plastics, PVC formulations, high-filler compounds, flame-retardant materials, elastomers and specialty polymer formulations, the ECK-45 provides a flexible platform for product development and production.
With its 40–60 kg/h output range, 22 kW drive, 500 rpm maximum speed and 6.75 mm reciprocating stroke, the ECK-45 is particularly well suited to customers who need professional compounding performance in a compact machine.
EXTRUTEX can configure the ECK-45 according to the polymer, formulation, filler concentration, additive system, required capacity and downstream pelletizing process.
:::

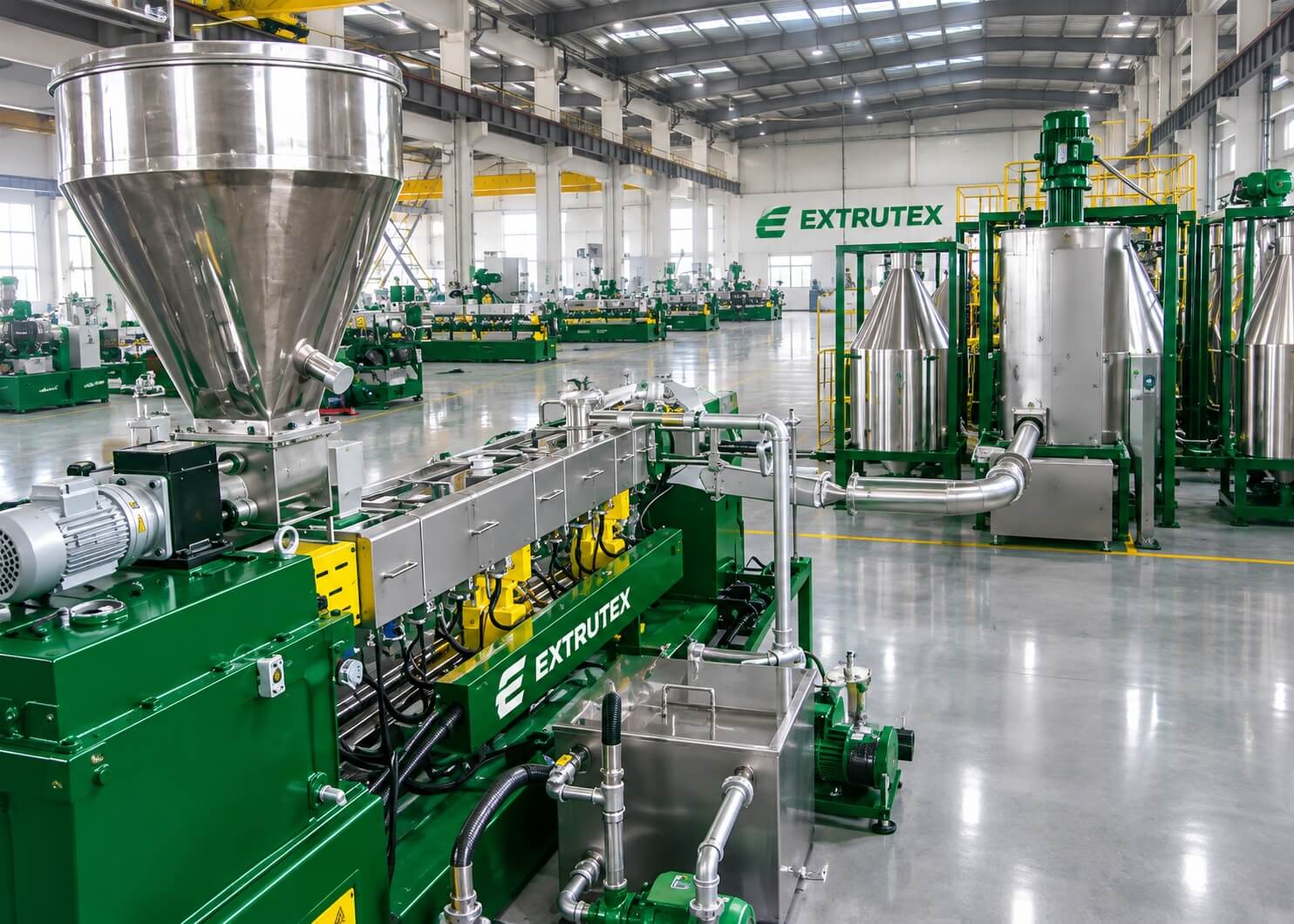

Applications of EXTRUTEX EXCT Co-Rotating Twin-Screw Extruders
High-Performance Compounding Solutions Powered by EXTRUTEX Technology
The EXTRUTEX EXCT Series Co-Rotating Twin-Screw Extruders, developed with advanced EXTRUTEX modular twin-screw technology, are engineered to deliver maximum productivity, outstanding product quality and superior processing efficiency for modern polymer compounding industries.
Designed for continuous industrial production, these extruders combine modular screw configurations, clamshell barrel construction, independently controlled temperature zones and optimized co-rotating screw technology to provide exceptional flexibility across a wide range of materials and formulations.
Whether producing color masterbatch, engineering plastics, reinforced compounds, wire and cable materials or powder coatings, the EXCT Series provides a reliable platform capable of delivering consistent product quality while reducing production downtime and improving manufacturing efficiency.
The modular design allows each extruder to be configured according to the specific material, filler loading, additive concentration and production objective, making the EXCT Series suitable for both standard and highly customized compounding applications.
Color Masterbatch Production
The EXCT Series is an ideal solution for producing high-quality color masterbatch with excellent pigment dispersion and color consistency.
The intensive mixing capability of the co-rotating twin screws ensures uniform pigment distribution throughout the polymer matrix while maintaining stable processing conditions.
Typical materials include:
Polyethylene (PE)
Polypropylene (PP)
ABS
AS
Polyamide (PA)
EVA
PET with pigments
The modular screw configuration allows mixing intensity and residence time to be optimized for different pigment systems, helping manufacturers achieve consistent color quality and excellent pellet appearance.
Filler Masterbatch Compounding
The EXCT Series is designed to process high-loading filler masterbatch formulations with excellent dispersion and stable production performance.
Polyolefin Filler Compounds
PE + Calcium Carbonate (CaCO₃)
PP + Calcium Carbonate
EVA + Calcium Carbonate
Talc-filled compounds
Titanium dioxide formulations
Engineering Plastic Fillers
ABS + ATH
PC + ATH
PS + ATH
Magnesium Hydroxide (MGH) compounds
Functional Mineral Compounds
PP + Iron Powder
PA + Ceramic Powder
ABS + Metal Powders
The modular processing zones allow conveying, melting, kneading, dispersion and homogenization to be precisely balanced according to filler loading and material characteristics.
Reinforced Plastic Compounds
The EXCT Series provides excellent performance for manufacturing fiber-reinforced engineering plastics.
The screw configuration can be designed to introduce reinforcement while maintaining appropriate fiber length and dispersion.
Typical reinforced materials include:
PP with long and short glass fibers
PBT reinforced compounds
ABS reinforced compounds
AS reinforced compounds
PA reinforced compounds
PC reinforced compounds
POM reinforced compounds
PPS reinforced compounds
PET reinforced compounds
Controlled processing helps improve dispersion and compound uniformity while supporting consistent production quality.
Functional Masterbatch
Modern plastics often require specialized functional additives rather than color alone.
The EXCT Series can be configured for producing a wide variety of functional masterbatch products.
Biodegradable and Starch-Based Compounds
PE with starch
PP with starch
PS with decomposing agents
Flame Retardant Compounds
PP with flame-retardant additives
PA flame-retardant compounds
ABS flame-retardant compounds
PBT flame-retardant formulations
Carbon Black Masterbatch
PE with carbon black
EVA with carbon black
ABS conductive compounds
The flexible screw arrangement allows the dispersion process to be optimized for each additive system.
Wire and Cable Compounds
The EXCT Series is widely suitable for wire and cable compound production, where material consistency and precise processing control are essential.
Applications include:
HFFR (Halogen-Free Flame Retardant)
XLPE compounds
Semi-conductive compounds
Sioplas compounds
Specialty cable materials
The modular barrel and independently controlled temperature zones allow engineers to establish stable processing conditions for demanding cable formulations.
Powder Coating Production
The EXCT Series is also an effective platform for manufacturing powder coating materials.
Its controlled melting and intensive mixing capabilities help produce homogeneous coating compounds with consistent quality.
Typical formulations include:
Hybrid powder coatings
Polyester coatings
Polyurethane coatings
Epoxy coatings
Specialty powder coating formulations
The modular processing concept allows different formulations to be produced on the same machine with appropriate screw and barrel configurations.
Engineering Plastic Compounding
The EXCT Series is suitable for a broad range of engineering thermoplastics that require precise temperature control and efficient mixing.
Typical engineering polymers include:
PA
PC
ABS
PBT
PET
POM
PPS
The modular screw system allows engineers to optimize residence time, mixing intensity and temperature profiles for each material.
Direct Extrusion Applications
Beyond pellet production, the EXCT Series can also be configured for direct extrusion applications.
Depending on the downstream equipment, the homogeneous melt can be supplied directly to extrusion dies for producing various semi-finished products.
The stable melt quality provided by the co-rotating twin-screw system helps support consistent downstream processing performance.
Why Choose EXTRUTEX EXCT Series?
The EXTRUTEX EXCT Series combines EXTRUTEX’s advanced modular twin-screw technology with decades of engineering expertise to deliver reliable, high-performance compounding solutions for modern polymer manufacturing.
Key Advantages
High productivity across a wide range of materials
Excellent mixing and dispersion performance
Modular screw and barrel configurations
Clamshell barrel for fast maintenance and cleaning
Independently controlled temperature zones
Stable continuous production
Flexible processing for multiple formulations
Suitable for laboratory, pilot and industrial production
Excellent compatibility with downstream pelletizing and extrusion equipment
From color masterbatch and filler compounds to engineering plastics, wire and cable compounds, powder coatings and direct extrusion, the EXTRUTEX EXCT Series provides a versatile processing platform capable of meeting the demanding requirements of today’s plastics industry while maximizing production efficiency, operational reliability and final product quality.
EXTRUTEX EXCT-90 Co-Rotating Twin-Screw Extruder
90 mm Modular Co-Rotating Twin-Screw Extruder with Clamshell Barrel
The EXTRUTEX EXCT-90 is a high-capacity co-rotating twin-screw extruder engineered for demanding industrial polymer compounding, masterbatch production, engineering plastics, recycling, mineral-filled compounds and advanced thermoplastic processing. Designed around EXTRUTEX’s modular processing philosophy, the EXCT-90 combines exceptional throughput with outstanding process flexibility, allowing manufacturers to configure the machine for a wide variety of materials, formulations and production requirements.
Featuring a 90 mm screw diameter, 32–48 L/D configurations, 300–500 rpm screw speed, 180 or 220 kW drive options, and an output capacity of approximately 700–1,000 kg/hour, the EXCT-90 is designed for continuous large-scale manufacturing while maintaining the adaptability required for specialty compounds and changing production demands.
One of the defining features of the EXCT-90 is its clamshell barrel design, allowing operators to open the barrel quickly for cleaning, maintenance, inspection and screw configuration changes. Combined with independently controlled barrel temperature zones and a modular screw system, the EXCT-90 provides an efficient production platform that minimizes downtime while maintaining consistent product quality.
EXCT-90 Technical Specifications
| Specification | EXCT-90 |
|---|---|
| Model | EXCT-90 |
| Screw Diameter | 90 mm |
| L/D Ratio | 32–48 |
| Screw Speed | 300–500 rpm |
| Main Motor Power | 180 / 220 kW |
| Production Capacity | 700–1,000 kg/hour |
| Screw Type | Co-Rotating Twin Screw |
| Barrel Design | Modular Clamshell |
| Processing Mode | Continuous |
| Applications | Compounding, Masterbatch, Recycling, Engineering Plastics, Filled Compounds |
Actual production capacity depends on polymer type, formulation, screw configuration, feeding system, temperature profile, residence time and downstream equipment.
High-Performance 90 mm Processing Platform
The 90 mm screw diameter provides a significant processing volume for manufacturers requiring industrial-scale production while preserving the versatility of EXTRUTEX’s modular twin-screw technology.
The co-rotating twin-screw system performs multiple processing functions simultaneously, including:
Material conveying
Controlled melting
Plasticization
Intensive mixing
Kneading
Dispersion
Homogenization
Degassing
Pressure building
Melt preparation
Unlike fixed-configuration extrusion systems, the EXCT-90 allows screw elements and barrel sections to be configured according to the material being processed. This flexibility enables manufacturers to optimize processing for different polymers, fillers, additives and specialty compounds without changing the entire machine platform.
Production Capacity of 700–1,000 kg/hour
The EXCT-90 is designed for an approximate production range of 700–1,000 kg/hour, making it suitable for high-volume industrial manufacturing.
This production capability makes the machine an excellent solution for continuous production of:
Polymer compounds
Masterbatch
Filled compounds
Engineering plastics
Recycled polymers
Specialty thermoplastic materials
Actual production depends on several process variables, including:
Polymer type
Melt viscosity
Bulk density
Filler concentration
Additive loading
Screw configuration
Screw speed
Feeding accuracy
Barrel temperature profile
Degassing requirements
Downstream pressure
The wide operating window allows manufacturers to balance maximum productivity with material quality and process stability.
300–500 RPM Screw Speed
The EXCT-90 operates within a screw-speed range of approximately 300–500 rpm, providing flexibility for different processing conditions.
Higher operating speeds can increase mechanical energy input for demanding dispersion applications, while lower speeds may be selected when longer residence time or gentler processing conditions are required.
By combining adjustable screw speed with modular screw geometry, engineers can optimize:
Throughput
Mixing intensity
Melt temperature
Residence time
Dispersion quality
Pressure stability
Product consistency
32–48 L/D Configurations
The EXCT-90 is available with 32–48 L/D configurations, allowing manufacturers to select the appropriate processing length for their application.
Shorter configurations are suitable for simpler compounding operations, while longer configurations provide additional space for multiple processing stages.
A typical long processing configuration may include:
Metering → Feeding → Conveying → Melting → Kneading → Dispersion → Homogenization → Degassing → Pressure Building → Filtration → Pelletizing
The modular barrel architecture allows these processing stages to be customized according to the formulation.
Clamshell Barrel Design
One of the most practical advantages of the EXCT-90 is its clamshell barrel system.
The hinged barrel can be opened within minutes, providing direct access to the screws and internal processing chamber.
This design simplifies:
Product changeovers
Cleaning
Maintenance
Screw inspection
Screw-element replacement
Removal of residual material
Troubleshooting
Process optimization
Research and development
For manufacturers processing multiple formulations, rapid access to the processing chamber reduces downtime and increases production efficiency.
Modular Barrel Construction
The EXCT-90 uses a fully modular barrel design that allows individual barrel sections to be arranged according to the required processing sequence.
Different barrel sections can perform dedicated functions, including:
Feeding
Conveying
Melting
Intensive mixing
Kneading
Side feeding
Additive incorporation
Vacuum degassing
Homogenization
Pressure building
Discharge
This modular approach allows engineers to design the processing line around the material rather than relying on one universal barrel configuration.
Independent Temperature Control
Each barrel section of the EXCT-90 can be controlled independently, allowing precise temperature management throughout the extrusion process.
Different stages of compounding require different thermal conditions.
For example:
Feeding zones require controlled temperatures to prevent bridging.
Melting zones provide the energy needed for plasticization.
Mixing zones maintain appropriate melt viscosity.
Degassing zones optimize volatile removal.
Downstream sections stabilize the melt before discharge.
The combination of electric heating and controlled cooling allows engineers to maintain a stable thermal profile, improving:
Melt quality
Product consistency
Processing stability
Mixing efficiency
Thermal history control
Modular Screw and Kneading System
The EXCT-90 features interchangeable conveying, mixing and kneading elements that allow engineers to create dedicated processing zones for different formulations.
Conveying Elements
Transport raw materials efficiently while maintaining stable material flow.
Melting Elements
Provide controlled polymer plasticization.
Kneading Blocks
Increase mechanical energy for intensive filler dispersion.
Mixing Elements
Deliver both distributive and dispersive mixing.
Homogenizing Elements
Improve melt uniformity before discharge.
Degassing Sections
Support removal of moisture and volatile components.
Pressure-Building Elements
Generate stable pressure for downstream processing.
This modular screw architecture allows the EXCT-90 to be optimized for a wide range of production requirements.
Complete Compounding Process
The EXCT-90 can perform every major stage of modern polymer compounding.
1. Metering and Feeding
Accurate feeding establishes formulation consistency.
The machine can process:
Polymer pellets
Powders
Mineral fillers
Pigments
Additives
Glass fibers
Wood fibers
Recycled materials
Multiple feeding points can be incorporated where necessary.
2. Conveying
The initial screw sections transport materials through the barrel while maintaining stable processing conditions.
3. Melting
Controlled thermal and mechanical energy convert solid polymers into a homogeneous melt.
4. Mixing and Dispersion
The twin-screw configuration provides excellent mixing performance for:
Masterbatch
Polymer blends
Filled compounds
Reinforced plastics
Additive concentrates
5. Degassing
Vacuum degassing can remove:
Moisture
Air
Residual monomers
Solvents
Volatile compounds
This is especially valuable for recycled materials.
6. Homogenization
Downstream screw elements stabilize the melt before filtration or discharge.
7. Melt Filtration
Optional filtration systems remove contaminants before pelletizing.
8. Pelletizing
The EXCT-90 can integrate with:
Strand pelletizers
Water-ring pelletizers
Underwater pelletizers
Sheet dies
Profile dies
Custom downstream equipment
Engineering Plastics Processing
The EXCT-90 is suitable for demanding engineering thermoplastics requiring precise temperature control and intensive mixing.
Applications include:
PA compounds
PC compounds
ABS compounds
PET compounds
PBT compounds
Modified engineering plastics
The modular screw configuration allows each material to receive an optimized processing profile.
Masterbatch Production
The EXCT-90 provides an excellent platform for producing:
Color masterbatch
Black masterbatch
White masterbatch
Additive masterbatch
Filler masterbatch
Its intensive mixing capability helps achieve uniform pigment and additive dispersion while maintaining consistent pellet quality at high production rates.
Filled Polymer Compounds
The machine is particularly well suited for formulations containing:
Calcium carbonate
Talc
Barium sulfate
Glass fiber
Mineral fillers
Wood fiber
Specialty fillers
The modular screw arrangement allows mixing intensity to be adjusted according to filler loading and dispersion requirements.
Recycling and Re-Compounding
The EXCT-90 is also designed for modern recycling operations.
Recycled polymers often require additional processing stages to remove moisture and contaminants while restoring material consistency.
A typical recycling configuration may include:
Feeding
Melting
Mixing
Vacuum degassing
Filtration
Homogenization
Pelletizing
The modular barrel allows these stages to be arranged according to the characteristics of the recycled material.
Industrial Production Efficiency
With capacities reaching 1 metric ton per hour, the EXCT-90 is designed for demanding industrial production environments where productivity and reliability are essential.
The combination of modular processing technology and quick-access maintenance features helps reduce production interruptions while maintaining consistent product quality across long production runs.
Manufacturers can evaluate and optimize:
Screw configurations
Barrel arrangements
Temperature profiles
Screw speed
Feeding positions
Mixing intensity
Degassing performance
Throughput optimization
Wear-Resistant Construction
The internal components of the EXCT-90 are available with material options suitable for demanding industrial environments.
Standard configurations utilize nitrided steel components, while more demanding applications can incorporate enhanced wear-resistant and corrosion-resistant materials.
This is particularly important when processing:
Glass fiber compounds
Calcium carbonate compounds
Mineral-filled polymers
Recycled materials
High-filler formulations
Proper material selection helps extend component service life while maintaining consistent processing performance.
Main Advantages of EXCT-90
High-Capacity 90 mm Platform
Designed for industrial compounding with outputs up to 1,000 kg/hour.
Modular Screw System
Flexible screw configurations for different formulations.
Clamshell Barrel
Fast access for cleaning, maintenance and screw changes.
Independent Temperature Zones
Precise thermal control throughout the extrusion process.
32–48 L/D Options
Configurable processing length for different applications.
300–500 RPM Operation
Flexible control of throughput and mixing intensity.
Wear-Resistant Components
Suitable for abrasive fillers and demanding formulations.
Industrial-Scale Production
Supports masterbatch, engineering plastics, filled compounds, recycling and specialty polymers.
Applications
The EXTRUTEX EXCT-90 is suitable for:
Polymer Compounding
Color Masterbatch
Black Masterbatch
White Masterbatch
Additive Masterbatch
Filler Masterbatch
Calcium Carbonate Compounds
Talc Compounds
Glass Fiber Compounds
Engineering Plastics
Polymer Blending
Recycled Polymer Compounds
Recycling and Re-Compounding
Specialty Thermoplastics
Industrial Continuous Production
EXTRUTEX EXCT-90
The EXTRUTEX EXCT-90 represents the next level of high-capacity modular twin-screw compounding technology, delivering industrial-scale performance while maintaining the flexibility required for modern polymer processing.
With a 90 mm screw diameter, 300–500 rpm operating range, 32–48 L/D configurations, 180 or 220 kW drive options, and a production capacity of approximately 700–1,000 kg/hour, the EXCT-90 is engineered for demanding continuous production environments.
Its configurable screw architecture allows manufacturers to optimize the extrusion process for different formulations, while the clamshell barrel dramatically improves cleaning, maintenance and product changeover.
From masterbatch production and engineering plastics to filled compounds, recycling and specialty materials, the EXCT-90 provides a reliable, efficient and highly adaptable platform for large-scale polymer compounding.
EXTRUTEX EXCT-90 — Industrial-Scale Modular Twin-Screw Technology for High-Performance Polymer Compounding.
TECH DATA:
EXTRUTEX ATP 114-32S – Precision Power for Rigid PVC Sheet Extrusion
Introduction
When production needs exceed the ordinary, the EXTRUTEX ATP 114-32S steps in — a masterclass in single-screw extrusion engineering.
Built with Austrian precision and forged for endurance, this machine transforms PVC and UPVC granules into flawless, smooth, dimensionally stable sheets at a rate few can match.
The ATP 114-32S represents the next generation of sheet extrusion — optimized for wide sheets, thick sections, and continuous high-capacity output.
It’s designed for manufacturers who demand more than performance — they demand perfection.
Technical Details
The EXTRUTEX ATP 114-32S integrates a special geometric screw design that optimizes material melting, mixing, and degassing.
This unique geometry ensures exceptional melt homogeneity, superior plasticization, and reduced thermal stress, even at high throughputs.
A bimetallic barrel paired with molybdenum-coated screws delivers outstanding wear resistance and a long operational life, while the 32 L/D ratio ensures excellent output consistency for rigid and semi-rigid PVC sheets.
Its AC vector drive motor and high-torque gearbox provide smooth, vibration-free power delivery, allowing precise control of melt pressure and sheet uniformity.
The multi-zone temperature control system, governed by a PLC-based control panel, maintains the thermal balance critical for quality surface finish and dimensional accuracy.
The ATP 114-32S is engineered for large-scale PVC sheet production — foamed or rigid — and can be configured with automatic feeders, melt pressure sensors, and integrated flat die systems for complete process control from hopper to haul-off.
⚙️ Technical Data Table
| Parameter | Specification |
|---|---|
| Model | EXTRUTEX ATP 114-32S |
| Application | UPVC / PVC Rigid Sheet Extrusion |
| Screw Diameter | 114 mm |
| L/D Ratio | 32:1 |
| Output Range | 270 – 450 kg/h |
| Installed Power | 107 kW |
| Drive Type | AC Vector Drive Motor |
| Screw Design | Special Geometric Design for PVC Melting and Mixing |
| Barrel Material | Nitrided / Bimetallic with Molybdenum Coating |
| Gearbox Type | High Torque, Low Noise Design |
| Heating Zones | Multi-Zone (6 to 8 Zones Adjustable) |
| Cooling System | Air / Water Integrated Cooling System |
| Control System | PLC with Touch Screen Operation |
| Degassing System | Optional Single / Double Vented Design |
| Feeding System | Automatic Volumetric / Gravimetric Feeder |
| Melt Temperature Range | 170 – 195 °C (adjustable) |
| Applications | PVC Foam Board, Rigid PVC Sheet, Advertising Panels, UPVC Flat Panels |
| Output Stability | ±1.5% Consistency |
| Country of Origin | Austria (Designed by EXTRUTEX) |
Performance Summary
The ATP 114-32S excels where productivity meets precision.
Its robust torque, thermal uniformity, and melt stability guarantee consistent sheet thickness and perfect surface clarity — even under continuous, 24-hour production cycles.
With 107 kW of engineered efficiency, it delivers the ideal balance between power consumption and throughput, resulting in reduced operating costs and maximized profitability.
Every component — from gearbox to barrel — is built to EXTRUTEX’s uncompromising European standards, making this extruder not just a machine, but a long-term production partner.
APPLICATIONS:
Applications of EXTRUTEX EXCT Co-Rotating Twin-Screw Extruders
High-Performance Compounding Solutions Powered by EXTRUTEX Technology
The EXTRUTEX EXCT Series Co-Rotating Twin-Screw Extruders, developed with advanced EXTRUTEX modular twin-screw technology, are engineered to deliver maximum productivity, outstanding product quality and superior processing efficiency for modern polymer compounding industries.
Designed for continuous industrial production, these extruders combine modular screw configurations, clamshell barrel construction, independently controlled temperature zones and optimized co-rotating screw technology to provide exceptional flexibility across a wide range of materials and formulations.
Whether producing color masterbatch, engineering plastics, reinforced compounds, wire and cable materials or powder coatings, the EXCT Series provides a reliable platform capable of delivering consistent product quality while reducing production downtime and improving manufacturing efficiency.
The modular design allows each extruder to be configured according to the specific material, filler loading, additive concentration and production objective, making the EXCT Series suitable for both standard and highly customized compounding applications.
Color Masterbatch Production
The EXCT Series is an ideal solution for producing high-quality color masterbatch with excellent pigment dispersion and color consistency.
The intensive mixing capability of the co-rotating twin screws ensures uniform pigment distribution throughout the polymer matrix while maintaining stable processing conditions.
Typical materials include:
Polyethylene (PE)
Polypropylene (PP)
ABS
AS
Polyamide (PA)
EVA
PET with pigments
The modular screw configuration allows mixing intensity and residence time to be optimized for different pigment systems, helping manufacturers achieve consistent color quality and excellent pellet appearance.
Filler Masterbatch Compounding
The EXCT Series is designed to process high-loading filler masterbatch formulations with excellent dispersion and stable production performance.
Polyolefin Filler Compounds
PE + Calcium Carbonate (CaCO₃)
PP + Calcium Carbonate
EVA + Calcium Carbonate
Talc-filled compounds
Titanium dioxide formulations
Engineering Plastic Fillers
ABS + ATH
PC + ATH
PS + ATH
Magnesium Hydroxide (MGH) compounds
Functional Mineral Compounds
PP + Iron Powder
PA + Ceramic Powder
ABS + Metal Powders
The modular processing zones allow conveying, melting, kneading, dispersion and homogenization to be precisely balanced according to filler loading and material characteristics.
Reinforced Plastic Compounds
The EXCT Series provides excellent performance for manufacturing fiber-reinforced engineering plastics.
The screw configuration can be designed to introduce reinforcement while maintaining appropriate fiber length and dispersion.
Typical reinforced materials include:
PP with long and short glass fibers
PBT reinforced compounds
ABS reinforced compounds
AS reinforced compounds
PA reinforced compounds
PC reinforced compounds
POM reinforced compounds
PPS reinforced compounds
PET reinforced compounds
Controlled processing helps improve dispersion and compound uniformity while supporting consistent production quality.
Functional Masterbatch
Modern plastics often require specialized functional additives rather than color alone.
The EXCT Series can be configured for producing a wide variety of functional masterbatch products.
Biodegradable and Starch-Based Compounds
PE with starch
PP with starch
PS with decomposing agents
Flame Retardant Compounds
PP with flame-retardant additives
PA flame-retardant compounds
ABS flame-retardant compounds
PBT flame-retardant formulations
Carbon Black Masterbatch
PE with carbon black
EVA with carbon black
ABS conductive compounds
The flexible screw arrangement allows the dispersion process to be optimized for each additive system.
Wire and Cable Compounds
The EXCT Series is widely suitable for wire and cable compound production, where material consistency and precise processing control are essential.
Applications include:
HFFR (Halogen-Free Flame Retardant)
XLPE compounds
Semi-conductive compounds
Sioplas compounds
Specialty cable materials
The modular barrel and independently controlled temperature zones allow engineers to establish stable processing conditions for demanding cable formulations.
Powder Coating Production
The EXCT Series is also an effective platform for manufacturing powder coating materials.
Its controlled melting and intensive mixing capabilities help produce homogeneous coating compounds with consistent quality.
Typical formulations include:
Hybrid powder coatings
Polyester coatings
Polyurethane coatings
Epoxy coatings
Specialty powder coating formulations
The modular processing concept allows different formulations to be produced on the same machine with appropriate screw and barrel configurations.
Engineering Plastic Compounding
The EXCT Series is suitable for a broad range of engineering thermoplastics that require precise temperature control and efficient mixing.
Typical engineering polymers include:
PA
PC
ABS
PBT
PET
POM
PPS
The modular screw system allows engineers to optimize residence time, mixing intensity and temperature profiles for each material.
Direct Extrusion Applications
Beyond pellet production, the EXCT Series can also be configured for direct extrusion applications.
Depending on the downstream equipment, the homogeneous melt can be supplied directly to extrusion dies for producing various semi-finished products.
The stable melt quality provided by the co-rotating twin-screw system helps support consistent downstream processing performance.
Why Choose EXTRUTEX EXCT Series?
The EXTRUTEX EXCT Series combines EXTRUTEX’s advanced modular twin-screw technology with decades of engineering expertise to deliver reliable, high-performance compounding solutions for modern polymer manufacturing.
Key Advantages
High productivity across a wide range of materials
Excellent mixing and dispersion performance
Modular screw and barrel configurations
Clamshell barrel for fast maintenance and cleaning
Independently controlled temperature zones
Stable continuous production
Flexible processing for multiple formulations
Suitable for laboratory, pilot and industrial production
Excellent compatibility with downstream pelletizing and extrusion equipment
From color masterbatch and filler compounds to engineering plastics, wire and cable compounds, powder coatings and direct extrusion, the EXTRUTEX EXCT Series provides a versatile processing platform capable of meeting the demanding requirements of today’s plastics industry while maximizing production efficiency, operational reliability and final product quality.
-
(0 customer reviews)
