Extruder Screw & Barrel

Introduction

In the modern world of polymer processing and plastics manufacturing, the heart of every extrusion system lies in the performance of its screw and barrel. These precision-engineered components are fundamental to ensuring efficient melting, homogenization, and conveying of polymers in extrusion lines for granules, masterbatches, compounding, pipes, profiles, films, and sheets. The longevity, energy efficiency, and productivity of an extrusion line are determined in large part by the quality of the screw and barrel.

Extrutex stands at the forefront of this sector, delivering screws and barrels engineered with Austrian design expertise, German metallurgical precision, and advanced manufacturing in Germany and China. With a portfolio covering single-screw extruders, twin-screw extruders (conical and parallel), and segmented modular screws, Extrutex supplies components for leading global brands such as AMUT, CET (Cincinnati), Battenfeld, KraussMaffei, Milacron, Reifenhauser, and more.

This document provides an in-depth technical description of Extrutex’s product line, materials, engineering design principles, rebuilding services, and competitive advantages. It is designed to serve as both a technical reference and a product catalogue for engineers and procurement specialists in the polymer processing industry.

1. Product Range

Single-Screw Extruder Screws and Barrels

• Custom-engineered geometries optimized for high output, low melt temperature, and stable pressure.

• Designs adapted to various resins: PE, PP, PVC, PET, PS, ABS, PMMA, engineering polymers.

• Screw diameters from 20 mm up to 300 mm, L/D ratios tailored to application.

• Barrier screws, vented screws, mixing elements, and Maddock sections available.

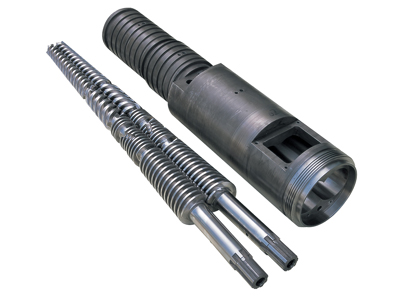

Twin-Screw Extruder Screws and Barrels

• Conical Twin-Screw Designs: Primarily for PVC pipe, profile, and sheet extrusion. Optimized for high torque and low shear.

• Parallel (Co-rotating & Counter-rotating) Twin-Screws: Used in compounding and masterbatch production. Segmented, modular design for maximum flexibility.

• Extrutex supplies complete screw element sets, barrels, kneading blocks, and conveying elements for major twin-screw OEMs.

Segmented Screw Elements

• Produced from high-alloy tool steels, stainless steels, and powder metallurgy steels.

• Wear-resistant and corrosion-resistant grades available.

• Compatible with global standards (Coperion, Leistritz, JSW, Toshiba, etc.).

2. Materials and Metallurgy

The durability of extrusion screws and barrels is primarily determined by base materials, heat treatment, and surface coatings.

Barrel Materials:

• 38CrMoAlA (DIN 1.8509) – gas nitrided steel with excellent hardness and toughness balance.

• BÖHLER V820 (1.8550) – nitriding steel with superior dimensional stability during heat treatment.

• Bi-metallic Liners: Bimetallic barrels with nickel-based or tungsten carbide-based liners for extreme wear resistance.

Screw Materials:

• 38CrMoAlA, 40Cr, and high-speed tool steels.

• Powder metallurgy grades for abrasive fillers (CaCO3, glass fiber, TiO2).

• Options for corrosion-resistant stainless steels (for fluoropolymers, flame-retardant compounds, and halogenated resins).

Heat Treatments:

• Gas nitriding, salt-bath nitriding, and ion nitriding.

• Hardness HV ≥ 900.

• Nitriding depth: 0.5 – 0.8 mm.

Coatings & Surface Treatments:

• Plasma-sprayed molybdenum coating on screw flights to minimize friction and extend service life.

• Hard chrome plating (0.02 – 0.04 mm) on metering and vent zones.

• Specialized anti-corrosion coatings for chemically aggressive polymers.

3. Engineering and Design Principles

Screw Design Innovations

• Optimized compression ratios for gentle plasticization and lower shear.

• Special mixing sections to enhance dispersion without overheating.

• Energy-efficient geometries to reduce motor load and improve throughput.

Barrel Engineering

• Precision-machined bore tolerances within ±0.01 mm.

• Two-stage nitriding for deep wear-resistant layers.

• Options for water-cooled, air-cooled, and vacuum-vented barrels.

Customization

• Application-specific screw and barrel sets designed to customer resin formulations.

• Custom L/D ratios, venting positions, and feed geometry.

• OEM replacements and tailor-made solutions.

4. Applications

Extrutex screws and barrels serve across industries:

• PVC extrusion: pipes, profiles, sheets, cables.

• Polyolefin extrusion: blown film, cast film, pipes.

• Compounding: filled compounds, glass fiber reinforced polymers, flame-retardant materials.

• Recycling: reprocessing of post-consumer and post-industrial polymers.

• Engineering plastics: PA, PC, PBT, PET compounding.

5. Rebuilding and Refurbishment Services

Extrutex offers comprehensive rebuilding services for worn screws and barrels, extending their life cycle while reducing customer cost.

Screw Refurbishment Process

1. Complete cleaning and dimensional inspection.

2. Removal of worn nitrided layers (0.5–1.0 mm).

3. Rebuilding of worn flight areas by plasma-spray molybdenum coating.

4. Polishing and precision grinding to restore original geometry.

5. Re-nitriding or sealing treatment.

Barrel Refurbishment Process

1. Internal bore cleaning and inspection.

2. Grinding of bore surfaces (up to 0.5 mm).

3. Re-nitriding to 0.6 mm case depth.

4. Optional installation of bimetallic liners.

5. Final honing and dimensional control.

6. Competitive Advantages of Extrutex

• Extended Service Life: Advanced coatings and alloy steels reduce wear and corrosion.

• Cost Savings: Competitive manufacturing in China and Germany combined with Austrian design minimizes cost without sacrificing quality.

• Customization: Each screw and barrel can be tailored to specific resins and production goals.

• Technical Support: Full pre- and post-sales engineering support.

• Fast Delivery: Wide stock availability for leading OEM brands.

7. Why Choose Extrutex Screws?

The Extrutex Screw Technology Division provides screws with unique geometric designs offering:

• Higher material contact area with reduced compression.

• Smoother plasticization process with minimal degradation.

• Enhanced resistance to abrasive wear.

• Reduced energy consumption per kilogram of output.

These features directly improve product quality, reduce downtime, and extend equipment lifetime.

8. Technical Data Snapshot

Example Specifications:

• Barrel Hardness: ≥ HV 900

• Nitriding Depth: 0.5–0.8 mm

• Tensile Strength (BÖHLER V820): 850–1000 N/mm²

• Chrome Layer Thickness (Screws): 0.02–0.04 mm

• Plasma Molybdenum Coating: Up to 0.2 mm

• Bore Tolerance: ±0.01 mm

9. Conclusion

In today’s highly competitive extrusion industry, reliability, efficiency, and cost-effectiveness are non-negotiable. Investing in Extrutex screws and barrels means securing longer equipment life, consistent product quality, and optimized energy use. Whether you need new components or rebuilding services, Extrutex offers a world-class technical solution with competitive pricing.

Contact Extrutex today for engineering consultation, technical advice, or customized product quotations. Ensure your extrusion line performs with maximum strength, precision, and reliability.
